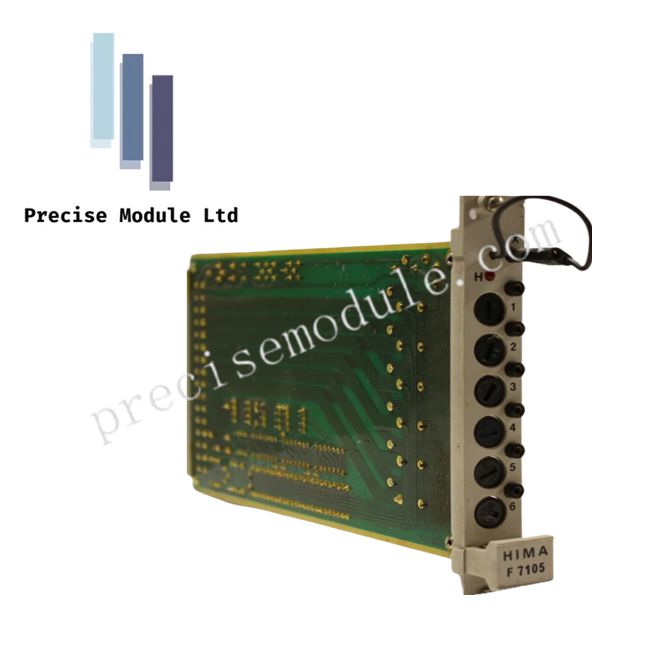

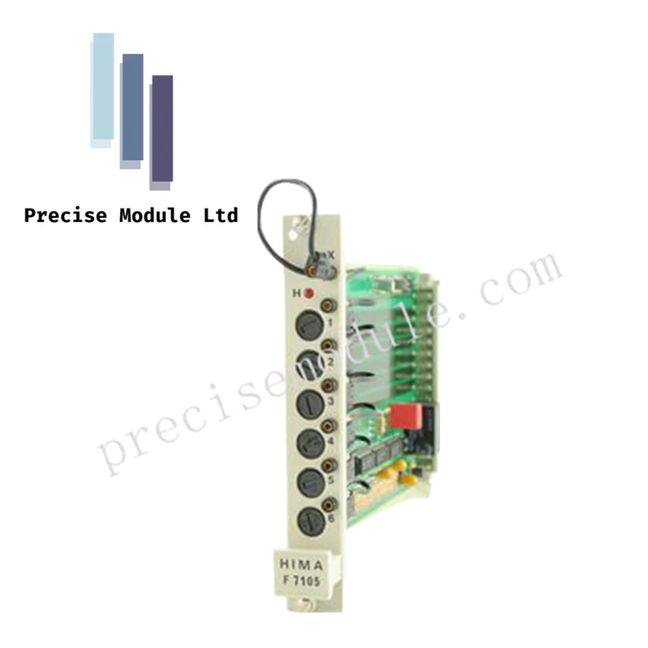

HIMA F7105 | Pulse Amplifier & Signal Conditioner Module

Product Description

Overview

The HIMA F7105 is a high-performance, four-channel pulse amplifier and signal conditioning module designed for H41q and H51q safety systems. It receives low-level pulse or frequency signals from field sensors and converts them into clean, reliable signals for safety-critical processing. Engineered for demanding industrial environments, the module ensures precise measurements for rotating equipment, flow monitoring, and position feedback applications.

Applications

The F7105 is ideal for applications requiring high-speed and reliable pulse signal processing:

• Turbine speed monitoring for steam and gas turbines

• Flow measurement via turbine or electromagnetic flow meters

• Overspeed protection and rapid safety shutdown loops

• Incremental encoder signal processing for position monitoring

Key Features

• Four independent channels for multiple sensor monitoring or redundant configuration

• Converts weak or noisy pulses into clean square-wave outputs

• Supports high-speed pulse signals up to 10 kHz or more

• Galvanic isolation protects the internal CPU from field-side electrical surges

• Short-circuit and line-fault detection for robust field wiring protection

• Status LEDs for rapid on-site diagnostics

• Fully compatible with SIL 3 safety loops

Technical Specifications

Diagnostics and Safety Functions

The F7105 module continuously monitors pulse integrity and provides fault feedback to the safety controller. It can detect open circuits, short circuits, or sensor failures and immediately signal the system to enter a safe state. This ensures operational reliability without compromising SIL 3 safety integrity.

FAQ

Q: Can this module handle multiple sensors simultaneously?
A: Yes, the four independent channels can either monitor multiple sensors or provide redundancy for a single critical measurement.

Q: Is the F7105 compatible with all HIMA safety systems?
A: It is designed specifically for H41q and H51q systems but can integrate with any system that supports 24 VDC pulse inputs.

Q: What types of sensors are supported?
A: NAMUR proximity switches, active pulse transmitters, flow meters, and incremental encoders.
