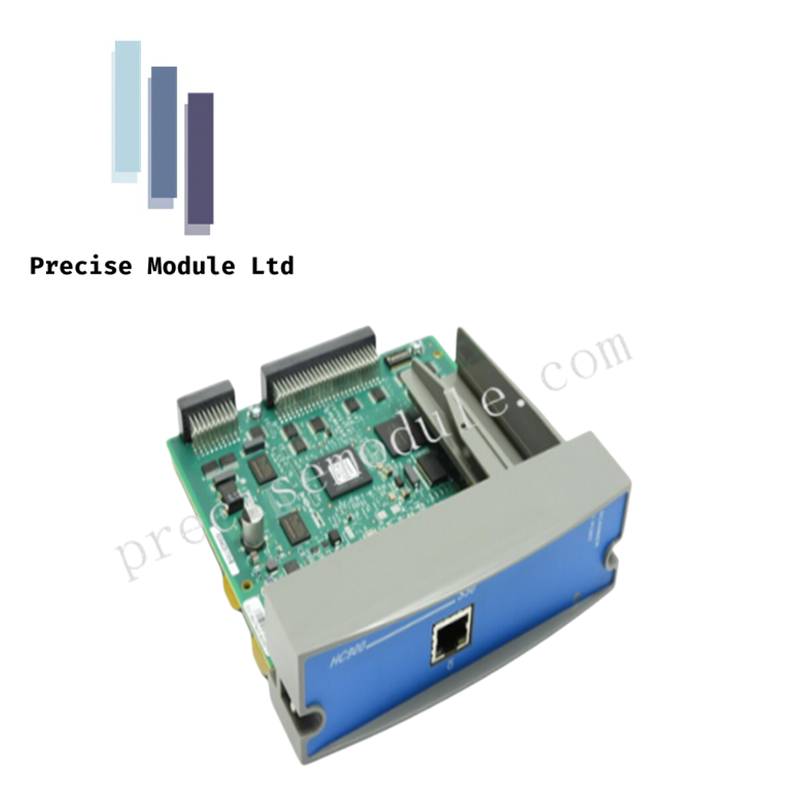

Honeywell 900S50-0360-00 1-Port I/O Scanner Module

The Honeywell 900S50-0360-00, also cataloged as the 900S50 I/O Scanner Module, operates as a dedicated hardware component for remote I/O data exchange within ControlEdge HC900 systems. The module provides a single high-speed Ethernet communication interface for connecting distributed I/O assemblies to the controller over a dedicated remote I/O network.

Hardware Specifications

Channel Isolation and Remote I/O Communication

The module functions as a communication bridge between the HC900 controller and distributed I/O assemblies. The integrated 10/100 Base-T Ethernet interface supports high-speed data transfer across dedicated remote I/O networks. Installation within the HC900 architecture allows I/O expansion while maintaining centralized controller access to field signals.

Frequently Asked Questions

Q: Does the module support replacement while controller power remains applied?
A: Yes. The module supports hot-swappable operation and can be inserted or removed under controller power.

Q: How is operating power supplied to the module?
A: The module receives 5 VDC directly from the rack backplane.

Q: What network interface is provided?
A: The module includes one 10/100 Base-T Ethernet communication port.

Field Installation Guidelines

• Install the module on a grounded 35 mm DIN rail within the designated HC900 rack assembly.

• Verify complete backplane engagement before applying control system service.

• Route Ethernet cables separately from high-voltage power conductors.

• Observe minimum bend radius requirements for network cabling.

• Confirm proper scanner-to-I/O network addressing during commissioning.

• Inspect Ethernet connectors and retaining clips before startup.

• Follow site grounding practices for communication cable shields.
