Honeywell TC-PCIC01K ControlNet Interface Module

Honeywell TC-PCIC01K ControlNet Interface Module

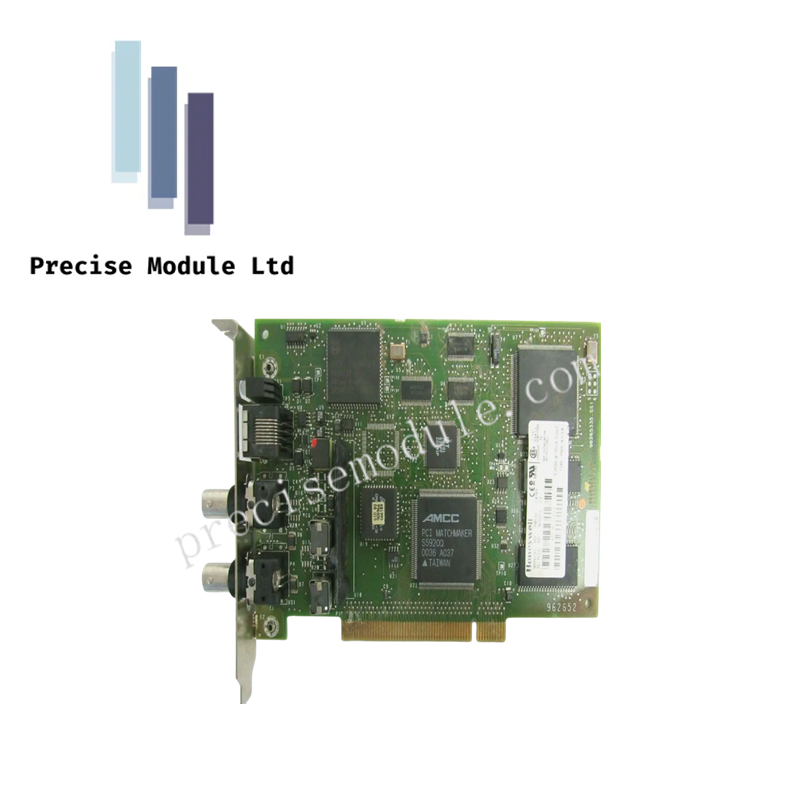

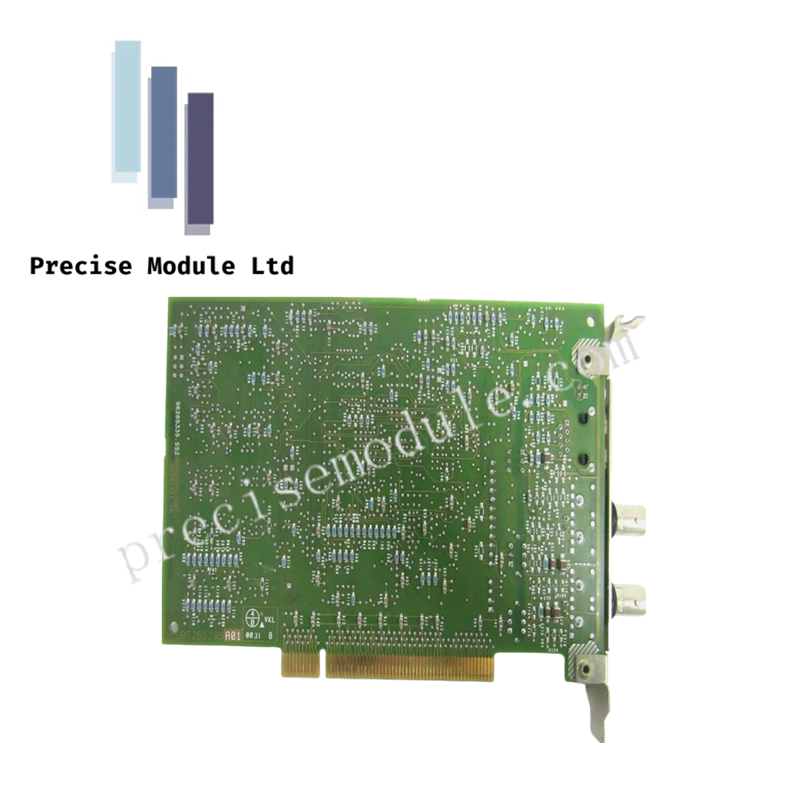

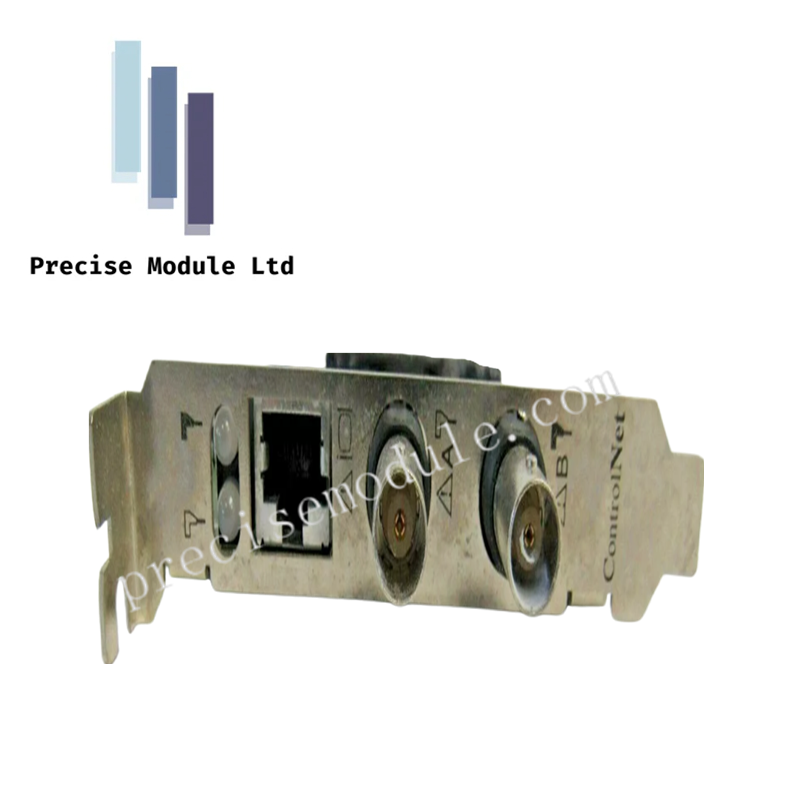

The Honeywell TC-PCIC01K, also cataloged as the PCIC01K ControlNet Interface Module, operates as a coated and ruggedized PCI card for deterministic ControlNet communication within Honeywell Experion PKS and related automation platforms.

Hardware Specifications

ControlNet Deterministic Networking

The TC-PCIC01K provides deterministic ControlNet communication at 5 Mbps, ensuring synchronized data exchange across Honeywell Experion PKS systems. Channel-to-channel isolation is achieved through coated PCB construction, enhancing ruggedness in industrial environments. The module supports real-time monitoring and alarm integration, maintaining compatibility with Honeywell control architectures.

Frequently Asked Questions

Q: Can the TC-PCIC01K be installed in any PCI slot? A: Yes, it is PCI-compliant, but installation should be limited to industrial PCs certified for Honeywell Experion PKS use.

Q: Does the ruggedized coating affect bus performance? A: No, the coating provides environmental protection without altering PCI bus timing or ControlNet throughput.

Q: What is the maximum supported ControlNet cable length? A: Cable length is defined by ControlNet standards; the module itself does not impose additional restrictions.

Field Installation Guidelines

• Insert the module into a PCI slot with power off to avoid bus disturbances.
• Secure DB9 connector with proper torque to prevent signal loss.
• Maintain shield grounding at a single termination point to avoid ground loops.
• Route ControlNet cabling away from high-voltage conductors to minimize EMI.
• Verify network synchronization during commissioning with ControlNet diagnostic tools.
