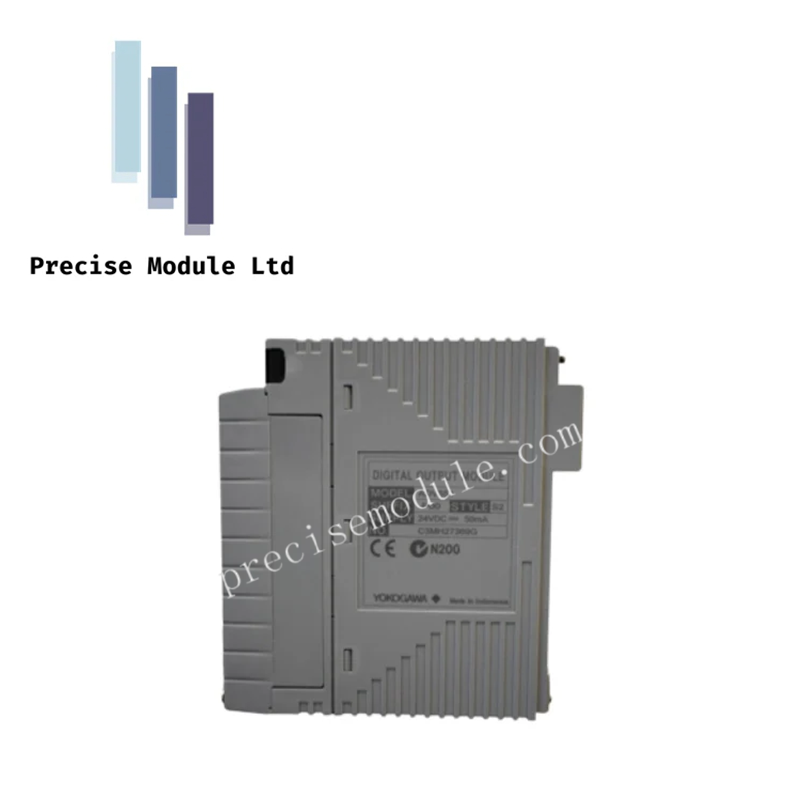

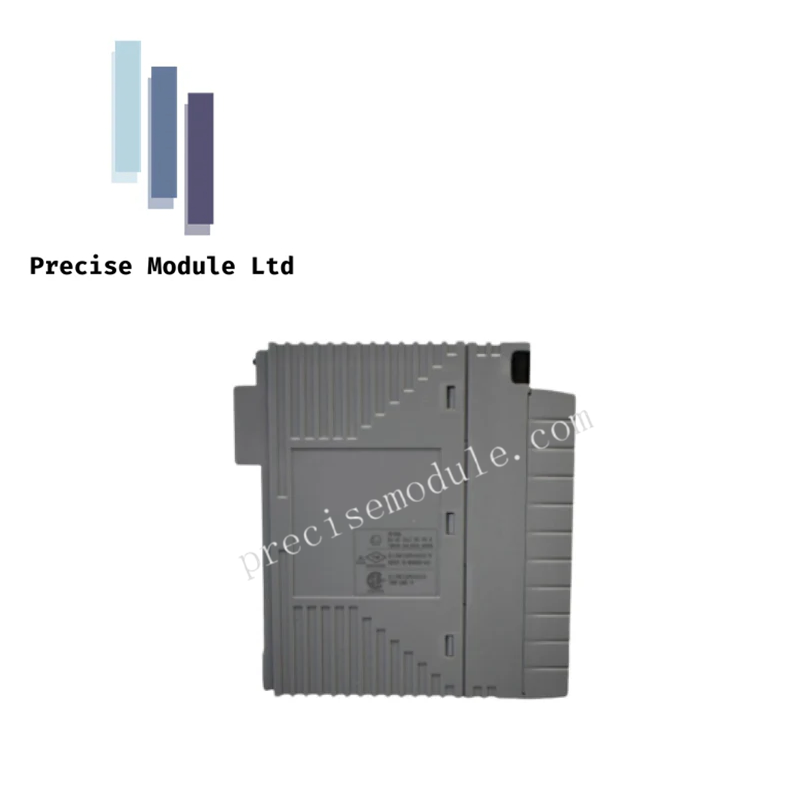

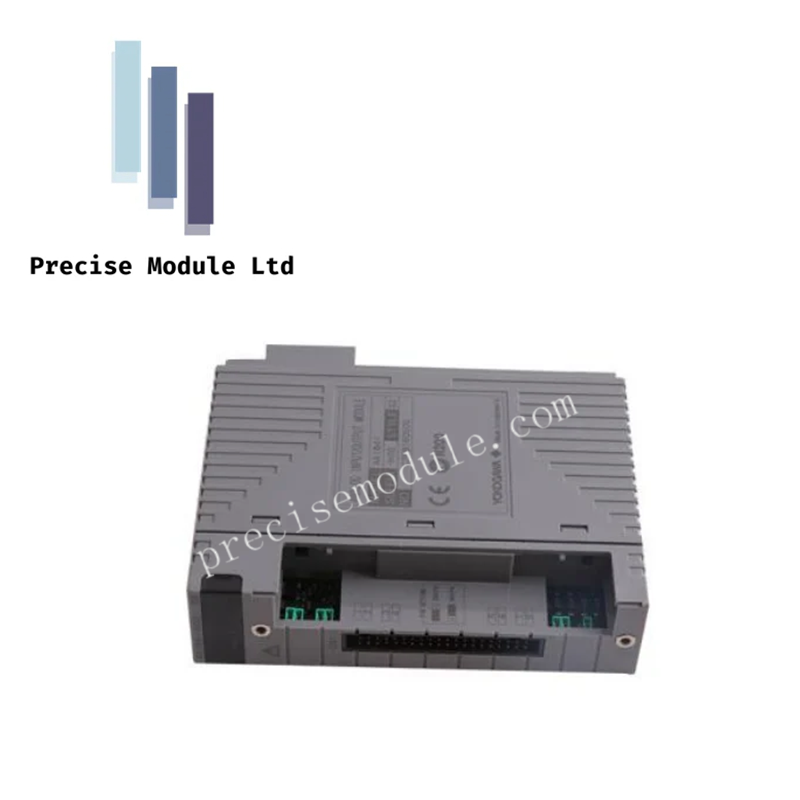

Yokogawa ADV551-P50/D5A00 Digital Output Module

Description

The ADV551-P50/D5A00 digital output module from Yokogawa delivers precise current sink output across 32 channels. It supports pulse width and time-proportional functions, making it ideal for advanced control in CENTUM VP environments.

Specifications

• Model: ADV551-P50/D5A00

• Manufacturer: Yokogawa

• Number of Output Channels: 32

• Rated Input Voltage: 24 V DC

• Load Voltage: 24 V DC, 50 mA

• External Power Supply Voltage Range: 20.4 to 26.4 V DC

• Output Format: Current sink

• Withstanding Voltage:

  • Between output signal and system: 2 kV AC for 1 minute

  • Between commons: 500 V AC for 1 minute (every 16-channel group)

• Output Response Time:

  • Status output: 3 ms or less

  • Mixed status and pulse outputs: 10 ms or less

• Pulse Width Range: 8 ms to 7200 seconds

• Pulse Width Resolution: 8 ms (ON/OFF delay up to 1 ms)

• Suffix Code 1: P = Pulse width and time-proportional output functions

• Suffix Code 2: 5 = No status display, no explosion protection

• Suffix Code 3: 0 = Basic type

• Option Code: /D5A00 = Includes KS Cable Interface Adapter (Model: ATD5A-00)

• Weight: 0.2 kg

Features

• Precise Pulse Control: Supports adjustable pulse width from 8 ms to 7200 seconds.

• Fast Output Response: Delivers status signals in under 3 ms for real-time control.

• Current Sink Format: Ensures stable digital output across all channels.

• Robust Isolation: Withstands up to 2 kV AC between output and system for enhanced safety.

• Flexible Power Range: Operates reliably within 20.4 to 26.4 V DC input range.

• Compact and Lightweight: Weighs only 0.2 kg, ideal for space-constrained installations.

• CENTUM VP Integration: Designed for seamless compatibility with Yokogawa’s control systems.

• Optional Interface Adapter: Includes KS cable adapter for simplified 32-channel connectivity.
