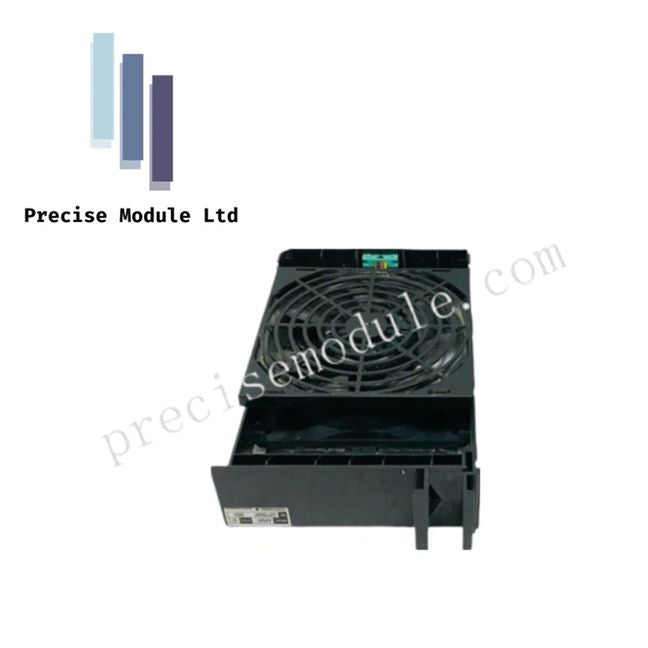

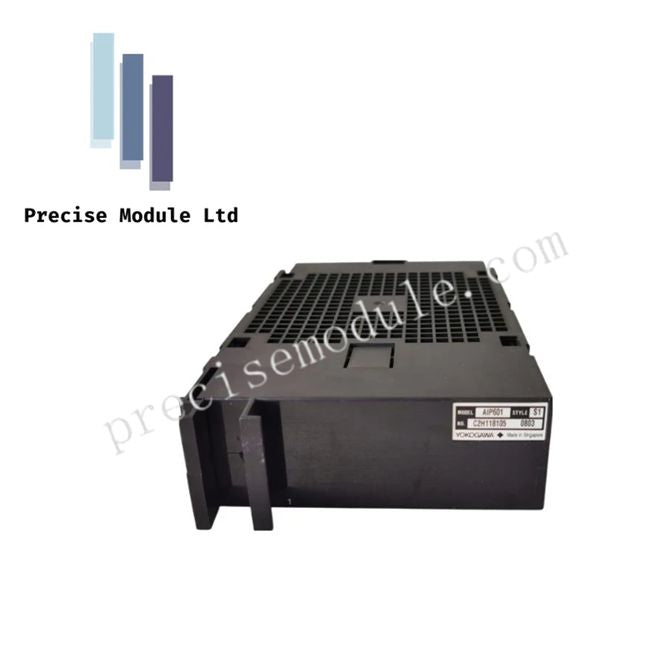

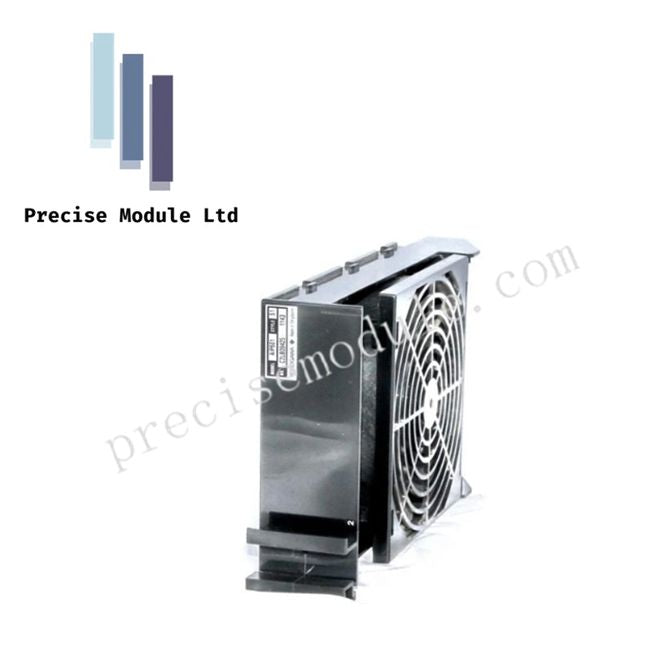

Yokogawa AIP601 Door Fan Unit | CENTUM VP / CS Thermal Module

Product Description

Overview

The AIP601 by Yokogawa is an industrial-grade Door Fan Unit engineered for use in CENTUM VP and CENTUM CS distributed control systems (DCS). This unit provides active ventilation within FCU and I/O expansion cabinets, maintaining optimal temperatures for CPUs, I/O modules, and power supplies. It is particularly suited for high-density cabinet configurations where passive airflow alone cannot dissipate heat effectively.

Key Features

Continuous High-Reliability Cooling

• Ensures stable airflow to prevent localized hot spots within the cabinet.

• Supports 24/7 operation, extending the service life of sensitive electronic components and avoiding temperature-induced logic errors.

Integrated Housekeeping & Alarm Monitoring

• Works with the cabinet’s Housekeeping Unit (HKU) to monitor fan status and airflow.

• Triggers alarms on the Human Interface Station (HIS) if airflow drops below safe thresholds, enabling proactive maintenance.

Rugged Industrial Design

• Compact form factor fits seamlessly into cabinet doors without obstructing internal wiring.

• EMI/RFI shielding ensures reliable operation even in electrically noisy environments.

• Hot-swappable design simplifies maintenance and reduces cabinet downtime.

Environmental Robustness

• Rated for continuous operation in demanding industrial environments such as power plants, refineries, and chemical processing facilities.

• Supports mission-critical control system requirements for high availability.

Technical Specifications

Applications

• Ventilation for FCU and I/O expansion cabinets in Yokogawa CENTUM VP/CS systems.

• Thermal management for high-density electronic configurations (AFV40, AFB10).

• Industrial environments where high availability and continuous operation are required.

FAQ

Q: Can the AIP601 operate in redundant cabinet setups?
A: Yes, it supports integration with dual power supplies and redundant HKU configurations.

Q: How is fan failure detected?
A: The integrated airflow sensors communicate with the Housekeeping Unit to trigger alarms if fan performance drops below thresholds.

Q: Can it be replaced without shutting down the system?
A: In many cabinet setups, the AIP601 is hot-swappable for minimal downtime.

Q: Does it work in electrically noisy environments?
A: Yes, EMI/RFI shielding ensures stable operation without interference to nearby I/O modules.
