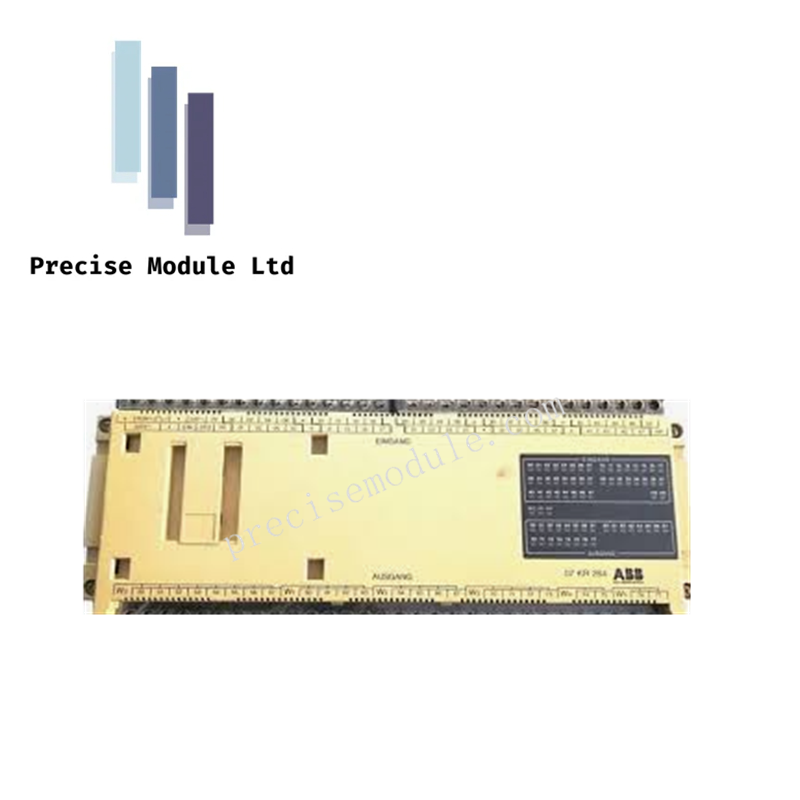

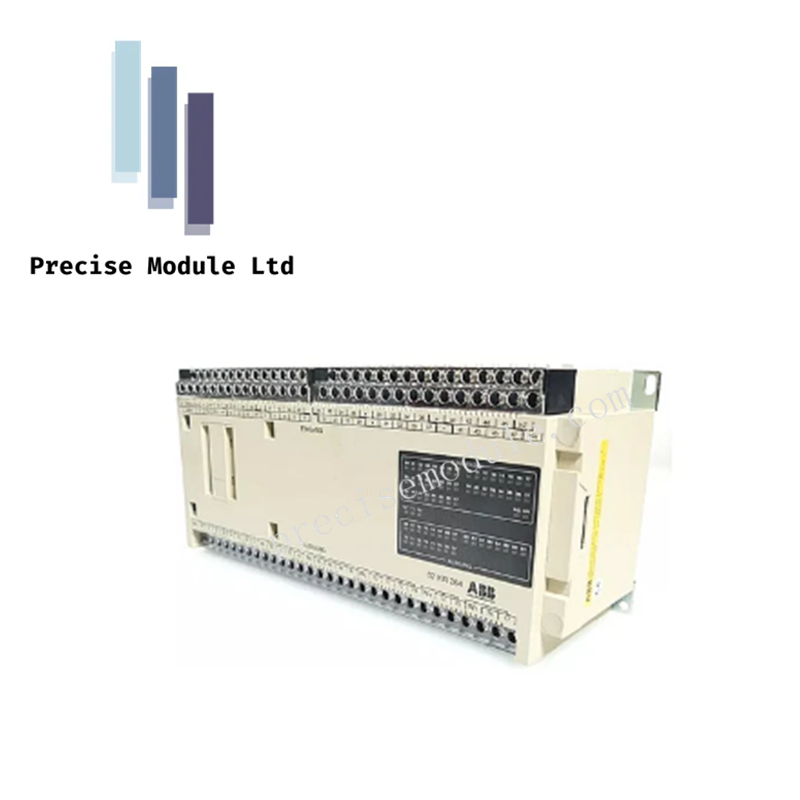

ABB 07KR264 Programmable Controller

Product Description

The ABB 07KR264 is a robust programmable controller engineered for diverse industrial automation applications. Designed to handle complex control tasks, this unit integrates essential logic processing with versatile input/output capabilities. It serves as a reliable central processing unit for machinery requiring precise timing, counting, and logic operations within a compact form factor.

Technical Specifications

• Model Number: 07 KR 264

• Manufacturer: ABB

• Product Type: Programmable Controller

• User Program Memory: 1K EEPROM (950 words) integrated

• External Storage: 2K EEPROM or 2K EPROM (1970 words)

• Supply Voltage: 230 VAC (+15%, -25%), 50/60 Hz

• Power Consumption: 39 VA (without programming unit)

• Cycle Time: Typically 5 ms/K instructions

• Dimensions: 330 mm (L) x 140 mm (H) x 102 mm (W)

Logic and Processing Capabilities

The controller features a substantial logic capacity, supporting 40 timers with a range of 0.01 to 999 seconds. Counting functions are handled by 16 down counters (3 decades each) and 8 up/down counters (4 decades each). For high-speed applications, the unit includes one high-speed upward counter capable of operating at 10 kHz with 4 decades. The system supports 376 flags, including 248 buffered flags, ensuring data retention during power interruptions.
