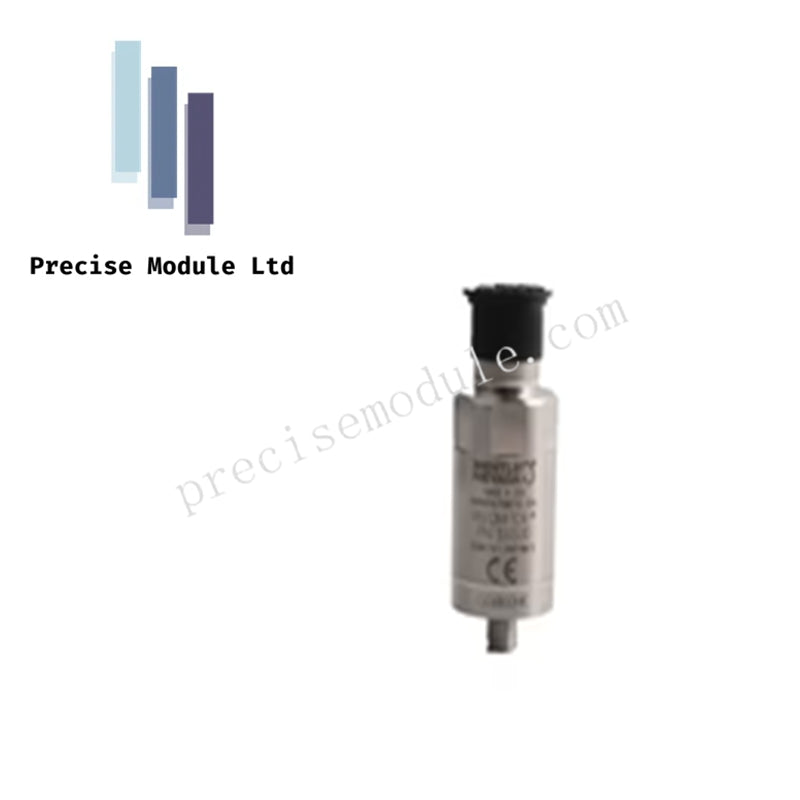

Bently Nevada 147M7136-02-01 | Ranger Pro Wireless Condition Monitoring Sensor

Shopify Product Title:
Bently Nevada 147M7136-02-01 | Ranger Pro Wireless Vibration & Temperature Monitoring Sensor | WirelessHART

Product Description

The Bently Nevada 147M7136-02-01 is a high-performance Ranger Pro Wireless Condition Monitoring Sensor designed specifically for use with WirelessHART networks. This sensor serves as the core sensing element of the Ranger Pro system, providing continuous, automated monitoring of machine health, including vibration and temperature data. It eliminates the need for manual walk-around data collection, allowing engineers to remotely monitor machine conditions from a central system such as Bently Nevada’s System 1.

The 147M7136-02-01 is equipped with a triaxial accelerometer and an integrated temperature sensor, offering comprehensive machine health data with precision and reliability. The device is perfect for industries that require high uptime and fast response to mechanical faults, helping to detect issues before they escalate into costly failures.

Breakdown of Part Number:

• 147M7136-02: Indicates the WirelessHART version of the sensor.

• -01 (Suffix): Denotes specific regional configurations or mounting kits, typically for North America or Global radio frequencies.

Key Features

1. WirelessHART Protocol:

• Operates on the WirelessHART (IEC 62591) protocol, making it ideal for plants already using WirelessHART infrastructure.

2. Triaxial Vibration & Temperature Monitoring:

• Measures vibration in three axes (X, Y, Z) and monitors machine temperature, providing a complete profile of the machine's mechanical and thermal health.

3. Advanced Vibration Diagnostics:

• Capable of transmitting waveforms and spectra (FFT), which enables detailed fault diagnostics (e.g., bearing cage failures, gear teeth chips), beyond just overall vibration levels.

4. PeakDemod Technology:

• Includes PeakDemod, Bently Nevada's proprietary algorithm for detecting early-stage "impacting" faults in rolling-element bearings, helping to prevent significant damage by identifying issues before they become critical.

5. Mesh Networking:

• Acts as a router within the WirelessHART mesh network, ensuring that data transmission remains uninterrupted even if an obstacle (e.g., new machinery or walls) blocks the signal path. This feature ensures reliable communication, extending the range and reliability of the sensor network.

6. Security & Encryption:

• 128-bit AES encryption ensures secure wireless communication, protecting your machine data from unauthorized access.

7. Long Battery Life:

• Designed for low power consumption, the sensor operates on a replaceable lithium battery, typically lasting up to 5 years depending on usage and reporting intervals.

Technical Specifications

Comparison: 147M7136-02 vs 147M7136-01

• 147M7136-02: Uses the WirelessHART protocol and is common in Emerson/Rosemount plants.

• 147M7136-01: Uses the ISA100.11a protocol and is common in Honeywell/Yokogawa plants.

Important Note: The 147M7136-02 and 147M7136-01 are NOT cross-compatible. Ensure you match the sensor version to your existing Wireless Gateway for proper integration.

System Application

The 147M7136-02-01 is used for continuous condition monitoring in industrial machinery such as motors, turbines, compressors, and pumps. By replacing manual inspection methods with automated, remote monitoring, it helps to:

1. Enhance Safety: Continuous vibration and temperature data provide early warning signs of potential machine failure, preventing accidents or costly breakdowns.

2. Improve Reliability: Enables predictive maintenance, identifying issues before they lead to unplanned downtime.

3. Reduce Maintenance Costs: Real-time data helps optimize maintenance schedules, ensuring that resources are allocated efficiently and only when needed.

Why Choose the 147M7136-02-01?

• Wireless Convenience: Eliminates the need for expensive cabling and complex installations.

• Advanced Diagnostics: Provides detailed waveform data and FFT spectra, enabling deeper analysis and faster fault detection.

• Mesh Networking: Automatically reroutes data, ensuring consistent data flow even in challenging environments with obstacles.

• Long Battery Life: Low-power design offers up to 5 years of operation, reducing the frequency of battery replacement.

• Security: 128-bit AES encryption ensures the integrity of your machine data.
