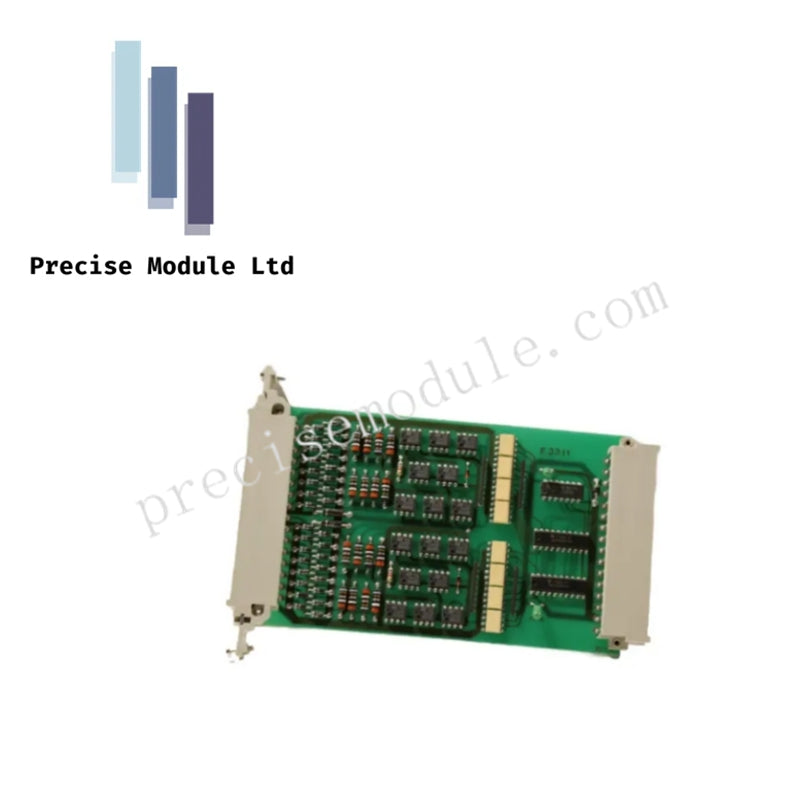

HIMA F7531 8-Channel SIL 3 Relay Output Module for Safety Systems

Product Description:

The HIMA F7531 is an 8-channel Relay Output Module from the H41q/H51q family, designed specifically for safety-critical applications in industrial automation, such as Emergency Shutdown (ESD) and Fire and Gas (F&G) systems. It provides high-integrity control for systems requiring Safety Integrity Level 3 (SIL 3) certification.

Unlike standard digital output modules, the F7531 uses electromagnetic relays, offering potential-free (dry) contacts. This allows for the switching of various voltage levels or separate power circuits directly from the safety controller. The F7531 ensures reliable switching of high-power loads and electrically isolated field circuits for critical applications.

Key Features:

• Safety Architecture (SIL 3):
  The F7531 is designed with internal redundancy and diagnostic capabilities to meet SIL 3 requirements, making it suitable for the most safety-sensitive applications.

• Galvanic Isolation:
  Field-side contacts are completely isolated from the internal system logic, ensuring protection from electrical surges and noise.

• High Switching Capacity:
  The module can handle higher currents (up to 4 A) than standard electronic (transistor) outputs, making it ideal for switching high-power devices.

• Feedback Monitoring:
  Equipped with internal self-testing circuits, the F7531 continuously checks relay contact health, ensuring that the contacts have not "welded" shut or failed.

• Redundancy Support:
  In redundant (1oo2 or 2oo4) configurations, the F7531 can still maintain its safety function, even if one module fails, ensuring continuous system reliability.

Technical Specifications:

Operation and Safety Logic:

The F7531 operates on a de-energize-to-trip principle. Under normal operation, the safety logic keeps the relays energized. In the event of a fault or emergency stop, power to the relay coils is cut, causing the contacts to open and bringing the field equipment to a safe state. This fail-safe operation is crucial in applications where maintaining a safe system state is imperative.

Redundancy Notes:

In redundant setups (1oo2 or 2oo4), the F7531 ensures that if one module fails its internal self-test, the partner module can take over, maintaining the safety function without interruption.

Maintenance and Troubleshooting:

• Contact Wear:
  Mechanical relays have a limited number of switching cycles. If a relay is frequently pulsed (rather than performing static safety shutdown), it may wear out more quickly.

• Fuse Protection:
  Each channel should be externally fused to protect the relay contacts from over-current or short-circuits in the field wiring.

• Module Status Indicators:

• Green LED: Power and system status are OK.

• Yellow LEDs: Indicate the state (ON/OFF) of each individual relay.

• Red LED: Indicates a module fault or failure during self-test.
