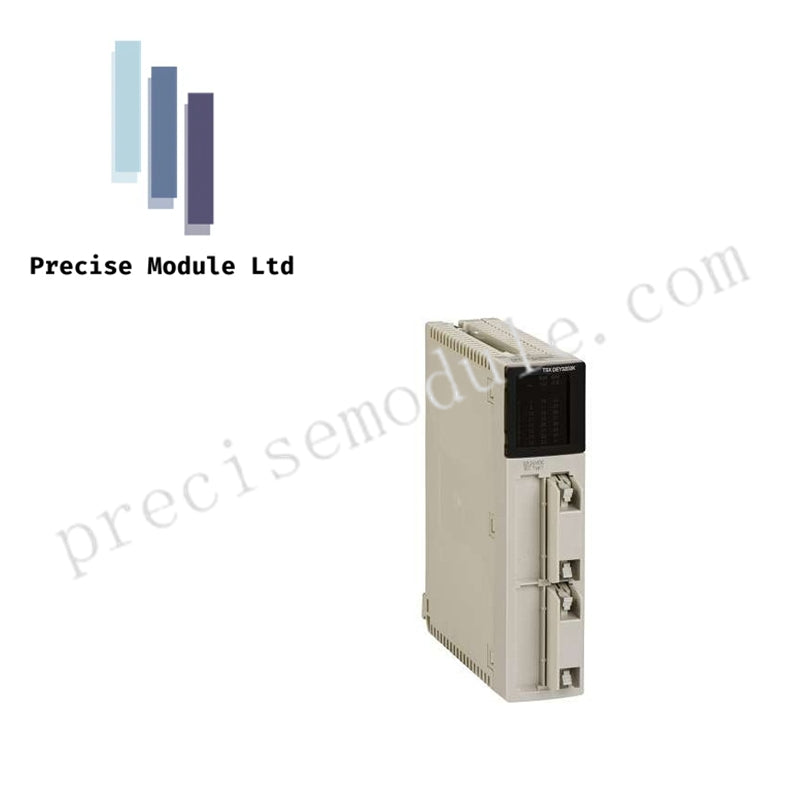

Schneider Electric Modicon TSXDEY32D2K | Discrete Input Module | 32 Channels | HE10 Connectors | Modicon Premium

Overview

The Schneider Electric Modicon TSXDEY32D2K is a high-density Discrete Input Module designed for use within the Modicon Premium automation platform. This module provides 32 digital input channels, offering seamless integration with 24V DC sensors and switches. The inclusion of HE10 (MIL-C-24308) connectors, denoted by the "K" suffix, ensures rapid pre-wired cabling solutions (Telefast), drastically reducing installation time in high-density cabinet setups. It is engineered for industrial applications where reliable and efficient I/O management is essential.

Key Features

• Model: Schneider Electric Modicon TSXDEY32D2K

• Input Channels: 32 isolated discrete inputs

• Connectors: Two HE10 (20-way) connectors for streamlined wiring

• Sensor Compatibility: Works with 24V DC (PNP) sensors

• Current Sinking Type: Logic Positive, compatible with current sinking configurations

• Mounting: Fits a single slot in the Modicon Premium rack

Technical Specifications

Diagnostic Indicators

The TSXDEY32D2K features a display block with status LEDs for real-time monitoring of system operation:

• Module Status (RUN/ERR): Indicates module power and communication status

• Channel Status (0-31): Individual green LEDs that show the active state (State 1) of each input channel

• External Power (24V): Red LED signals if the external 24V DC sensor supply is missing or out of range

Physical & Environmental

Applications

The Schneider Electric Modicon TSXDEY32D2K module is suitable for industrial control systems where a high-density, reliable input solution is required. Its 24V DC compatibility makes it ideal for interfacing with sensors and switches in automation applications across various industries, such as manufacturing, energy, and infrastructure. The current sinking configuration and fast response time enable it to be integrated into mission-critical systems requiring precise and timely data collection.

Frequently Asked Questions (FAQ)

Q1: What type of sensors are compatible with the TSXDEY32D2K module?

• The TSXDEY32D2K is compatible with 24V DC PNP sensors, which are commonly used in industrial automation systems for digital input applications.

Q2: How does the TSXDEY32D2K simplify installation?

• The HE10 connectors and Telefast pre-wired cabling reduce the complexity of field wiring and speed up the installation process, particularly in high-density cabinets.

Q3: What protections are included in the TSXDEY32D2K module?

• This module is equipped with reverse polarity protection and integrated voltage suppressors to ensure reliable operation and protection against electrical faults.

Q4: Can I use this module for analog I/O?

• No, the TSXDEY32D2K is specifically designed for discrete digital inputs and does not support analog input signals.
