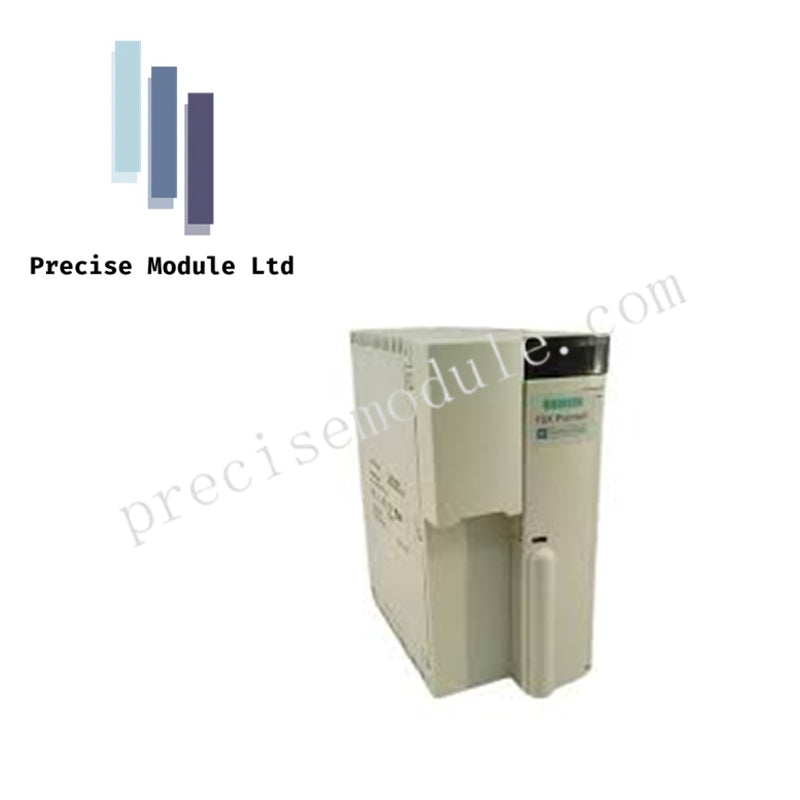

Schneider Electric Modicon TSXPSY5520 | Power Supply Module | Modicon Premium Automation

Overview

The Schneider Electric Modicon TSXPSY5520 is a high-capacity Power Supply Module designed for integration with the Modicon Premium automation platform. This module provides reliable DC power to the PLC rack, energizing the processor, I/O modules, and communication cards. It is a critical component for industrial automation, ensuring stable and efficient power distribution to various elements within the Modicon Premium system. The TSXPSY5520 is designed for 24V DC input sources and offers advanced diagnostic capabilities to maintain system reliability.

Key Features

• Model: Schneider Electric Modicon TSXPSY5520

• Type: Power Supply Module for Modicon Premium Automation

• Input Voltage: 24V DC

• Output Voltages: Multiple outputs for system reliability

• Advanced Diagnostics: Features a "Battery Low" indicator and display for secondary voltage status

Technical Specifications

Physical Features & Indicators

• Front Panel Indicators:

• OK: Green LED, indicating proper secondary voltage output

• BAT: Red LED, signals low or missing internal RAM backup battery

• 24V: Green LED, indicates the presence of 24V DC for sensor power

• Connectors:

• Screw terminal block for input power

• 9-pin D-sub connector for alarm relay

• Alarm Relay:

• Includes "Power OK" dry contact (normally closed) for external monitoring of power status

Environmental Specifications

Applications

The Modicon TSXPSY5520 is widely used in industrial applications where reliable power distribution to a PLC backplane is essential. It powers the processor and I/O modules in Modicon Premium control systems, typically in sectors such as manufacturing, energy, and infrastructure. The power supply's ability to handle high inrush current and offer redundant outputs makes it ideal for mission-critical automation tasks.

Frequently Asked Questions (FAQ)

Q1: Is the TSXPSY5520 compatible with all Modicon PLCs?

• This power supply is designed for the Modicon Premium platform. It is important to confirm compatibility with other Modicon PLC families before use.

Q2: How does the overload protection function?

• The TSXPSY5520 includes electronic overload protection, which automatically restarts the system once the fault is cleared, ensuring minimal downtime and maximum system reliability.

Q3: Can this power supply handle extreme environments?

• Yes, the TSXPSY5520 is designed to operate within a wide temperature range of 0°C to +60°C and can withstand harsh industrial environments, with robust protection against overvoltage and short circuits.
