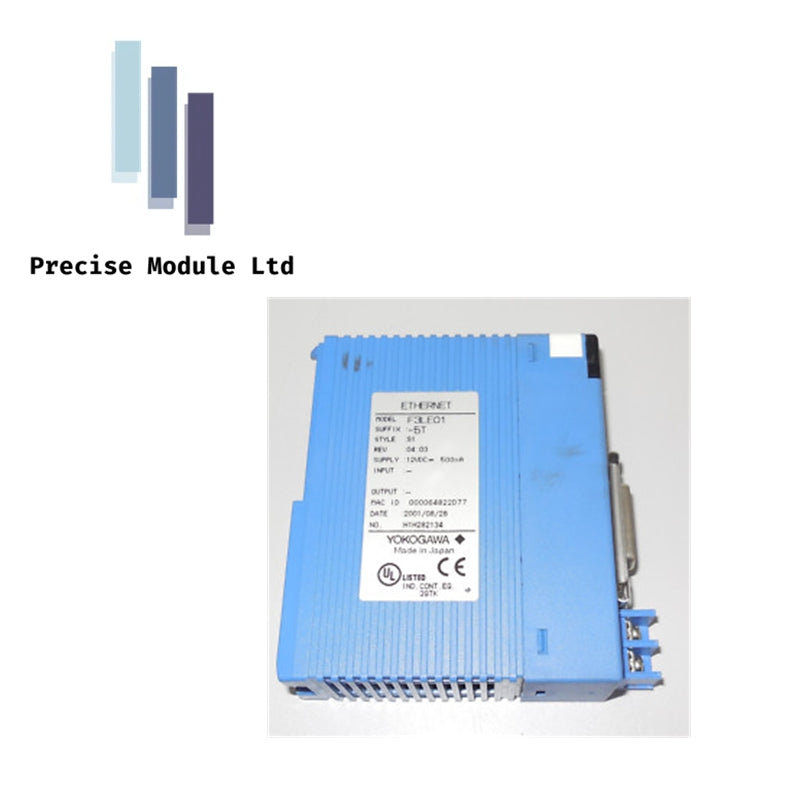

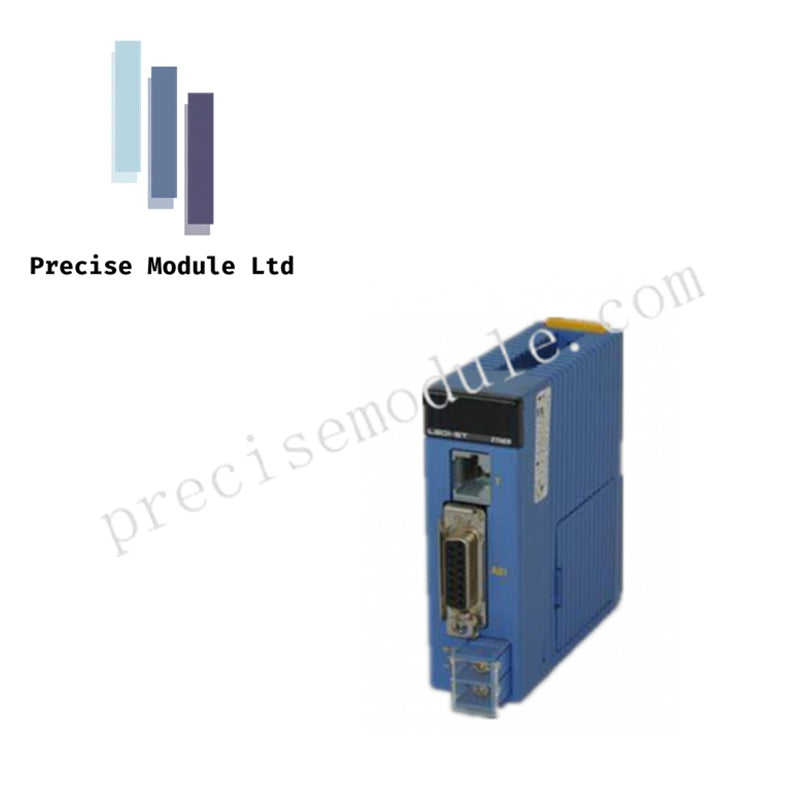

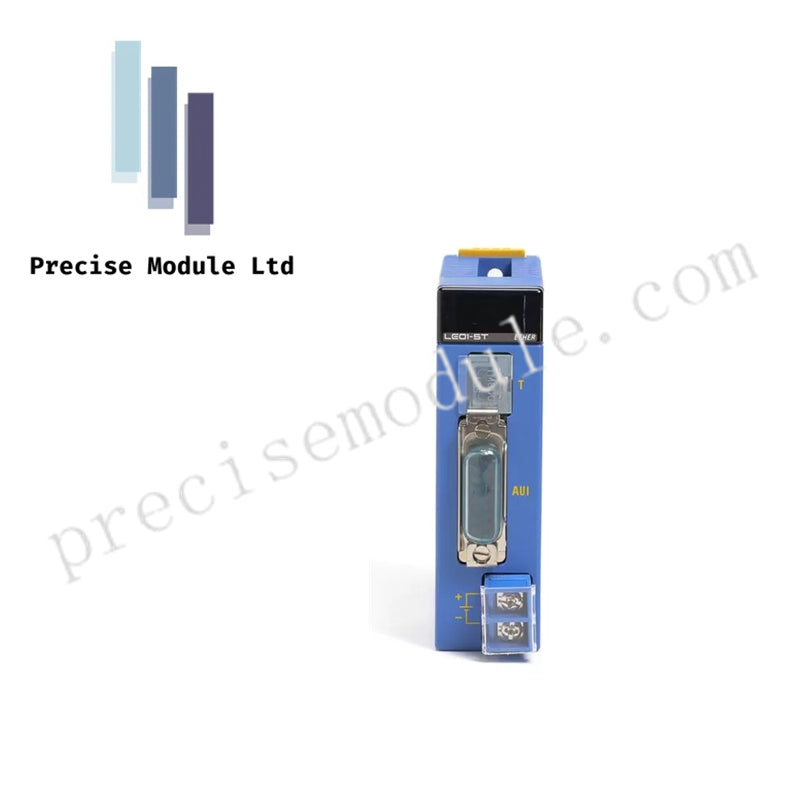

Yokogawa F3LE01-5T | Ethernet Interface Module | 100BASE-TX / 10BASE-T | FA-M3 Series

Product Description:

The Yokogawa F3LE01-5T (part number F3LE01-5T) is a robust Ethernet Interface Module designed for integration with the FA-M3 (Factory Automation M3) range of multi-controller systems. Operating at speeds of 100 Mbps (Fast Ethernet) and 10 Mbps, this module provides seamless communication within industrial Ethernet networks, ensuring fast and efficient data exchange between PLC systems, PCs, HMIs, and other industrial controllers.

As part of the FA-M3 series, the F3LE01-5T serves as a critical gateway, enabling the system to communicate over Ethernet using protocols such as TCP/IP and UDP/IP. It supports multiple logical connections, facilitating simultaneous data exchanges without taxing the main CPU of the PLC. This feature is especially valuable for peer-to-peer communication between multiple PLC racks or uploading production data to a central host computer for further analysis.

Key Features and Functions:

1. High-Speed Communication:
   The F3LE01-5T operates at 100 Mbps (Fast Ethernet) or 10 Mbps (Ethernet), providing auto-negotiation between the two speeds. This high-speed capability ensures rapid data transfer between the PLC and other network devices, making it ideal for real-time industrial applications.

2. Multi-Protocol Compatibility:
   The module supports a wide range of industrial communication protocols, enabling seamless integration into existing IT infrastructure. Key protocols include:

• FTP (File Transfer Protocol): For easy transfer of recipe data or log files.

• Socket Communication: Allows for custom data exchange via TCP/UDP ports.

• E-mail (SMTP): The module can send automated alert emails or status reports to maintenance personnel, enabling proactive system monitoring.

3. Full Duplex and Half Duplex Modes:
   The F3LE01-5T supports both Full Duplex and Half Duplex communication modes, providing flexibility in network setup and ensuring reliable communication even in demanding industrial environments.

4. Auto-MDI/MDI-X Support:
   This module automatically detects the type of Ethernet cable used (straight-through or crossover), eliminating common connection issues during installation and ensuring easy deployment in diverse network topologies.

5. Real-Time Diagnostics:
   Diagnostic LEDs on the front panel provide clear status updates:

• RDY: Indicates that the module is powered and ready for use.

• LNK/ACT: Shows the link status and data activity.

• 100M: Lights up when a 100 Mbps connection is active.

• ERR: Alerts users to internal hardware or configuration errors, assisting in troubleshooting.

Technical Specifications:

Installation & Configuration:

• Mounting: The F3LE01-5T is installed in a standard I/O slot of the FA-M3 baseplate.

• Cabling: Use Category 5 (Cat5e) or higher shielded twisted-pair (STP) cables to ensure reliable communication in industrial environments that may have high levels of electrical noise.

• IP Configuration: IP addresses and subnet masks are configured via WideField3 programming software.

• Routing: If connecting across different subnets, ensure the gateway address is defined correctly in the module’s configuration table for smooth communication.

Applications:

The Yokogawa F3LE01-5T Ethernet Interface Module is ideal for industrial automation applications requiring high-speed, real-time data exchange, and seamless integration into Ethernet-based factory automation networks. Typical applications include:

• Real-Time Data Transfer: Sending production data to central control systems or HMIs.

• Distributed Control Systems: Enabling peer-to-peer communication between multiple PLC racks or controllers.

• Remote Monitoring: Sending status reports and alerts to maintenance personnel for proactive system management.

Frequently Asked Questions (FAQ):

Q: What is the primary function of the F3LE01-5T Ethernet Interface Module?
A: The F3LE01-5T module provides Ethernet connectivity for the FA-M3 PLC system, enabling high-speed data exchange between the PLC and other devices over industrial Ethernet networks.

Q: How does the F3LE01-5T improve communication performance?
A: The module supports auto-negotiation for speeds up to 100 Mbps (Fast Ethernet), enabling faster and more reliable communication in real-time factory automation applications.

Q: Is the F3LE01-5T compatible with standard IT protocols?
A: Yes, the F3LE01-5T supports FTP, Socket Communication, and E-mail (SMTP), making it easy to integrate with standard IT systems and enabling efficient data transfer and remote monitoring.

Q: Can the F3LE01-5T be easily installed?
A: Yes, the module is designed for easy installation into a standard FA-M3 I/O slot. Additionally, it supports Auto-MDI/MDI-X, which simplifies cabling by automatically detecting the type of Ethernet cable used.
