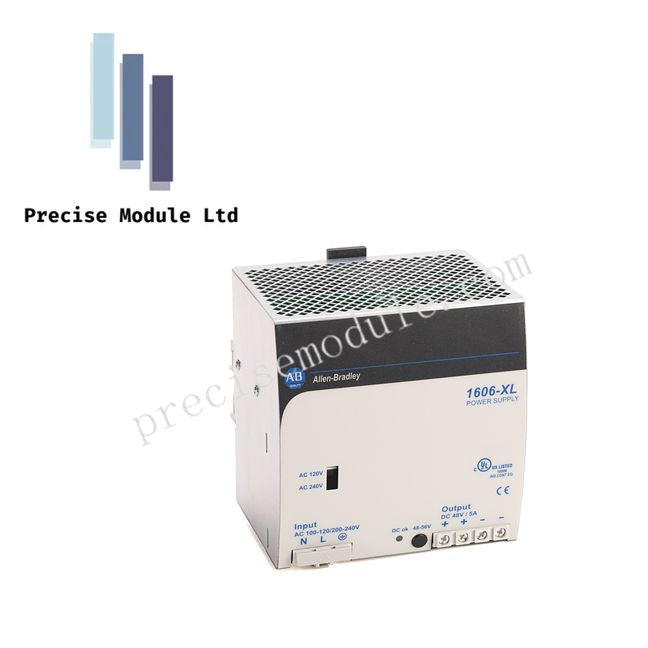

Allen-Bradley 1606-XL480EP 480W DIN-Rail Power Supply 24V DC

Product Description

Overview

The Allen-Bradley 1606-XL480EP is a 480-watt DIN-rail mounted switched-mode power supply engineered for demanding industrial control environments. Designed for reliable 24V DC delivery, this module offers high efficiency and robust protection for PLCs, sensors, actuators, and other field devices. Its compact design and convection cooling make it ideal for tight control panel installations where long-term reliability is critical.

Key Technical Features

• Output Power: 480 Watts continuous

• Output Voltage: 24–28 V DC adjustable via front potentiometer

• Output Current: 20 A at 24V, 18 A at 28V

• Input Voltage: 85–264 V AC / 90–375 V DC

• Input Frequency: 47–63 Hz

• Efficiency: Up to 94% depending on load

• Cooling: Convection, fanless operation

• Power Factor Correction: Active PFC for low harmonic distortion

• Parallel Operation: Supported for redundancy or increased load

• Status Indication: DC-OK LED and relay contact

Protection Features

• Overvoltage and overload protection with constant current limiting

• Short-circuit protection using hiccup mode

• Thermal protection to prevent overheating

• Inrush current limiting: ≤25A at 120V AC, ≤50A at 230V AC

Environmental & Mechanical

• Operating Temperature: -25°C to +60°C (derating above 60°C)

• Mounting: 35mm DIN-rail

• Dimensions: 121 x 124 x 127 mm (W x H x D)

• Certifications: UL, cUL, CE, RoHS, ATEX

Applications

• Powering PLC and HMI systems

• Supplying industrial I/O and field sensors

• Supporting redundant power configurations in SCADA systems

• Driving solenoids, actuators, and low-voltage motors

FAQ

Q: Can this unit operate in parallel with another 1606-XL480EP?
A: Yes, it supports parallel operation for redundancy or additional load capacity.

Q: Is it suitable for outdoor installations?
A: The unit requires an enclosed control panel. It is rated for -25°C to +60°C ambient temperatures.

Q: What distinguishes the XL480EP from newer 1606-XLE or XLS series?
A: The XL480EP has a wider footprint and slightly lower efficiency. Newer models are more compact and offer enhanced thermal management.

Technical Specifications Table
