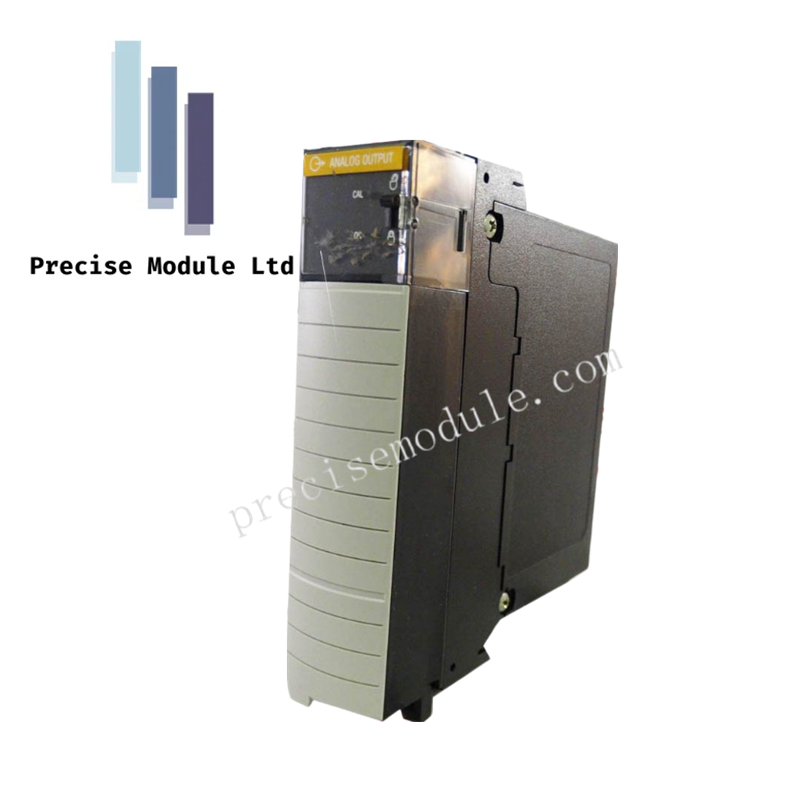

1756-OF8 | Allen-Bradley | Analog Output Module

Product Overview

The Allen-Bradley 1756-OF8 Analog Output Module provides eight voltage or current outputs with precise control and fast response. It delivers ±10 V and 0…20 mA ranges, achieving better than 0.05% accuracy at 25 °C. Its compact 0.4 kg design ensures easy installation while maintaining a thermal dissipation of 16.78 BTU/hr.

Key Features

• Eight individually configurable voltage or current output channels.

• ±10 V or 0…20 mA output range with <2 ms settling time.

• Current draw of 150 mA at 5.1 V and total backplane power of 5.8 W.

• Short-circuit and overvoltage protection up to 24 V DC.

• Open circuit detection for current outputs above 0.1 mA.

Technical Specifications

Environmental and Operational Details

The Allen-Bradley 1756-OF8 operates efficiently with low power dissipation and robust protection features, making it suitable for demanding industrial control environments. Its design minimizes thermal load while maintaining stable and accurate output signals.

Applications

This module is ideal for precise analog signal control in process automation, manufacturing plants, and distributed control systems. Its reliable protection and fast response make the 1756-OF8 a dependable choice for high-performance ControlLogix platforms.
