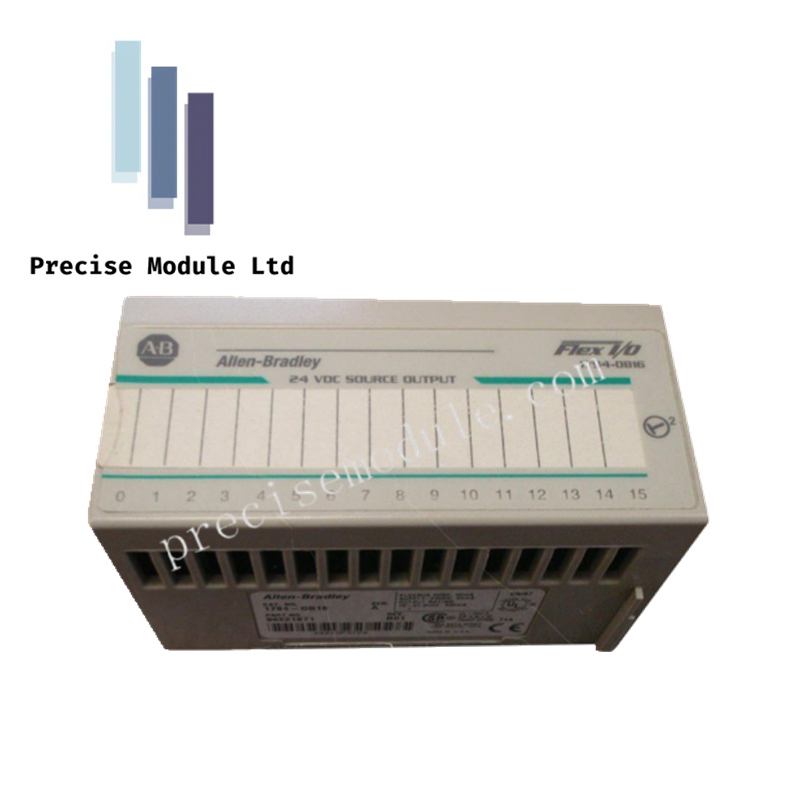

1794-OB16P | Allen-Bradley | FLEX I/O Digital DC Output Modules

Manufacturer: Allen-Bradley
Product No.: 1794-OB16P
Condition：in Stock
Product Type: FLEX I/O Digital DC Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Product Overview

The Allen-Bradley 1794-OB16P is a FLEX I/O digital DC output module featuring 16 non-isolated sourcing outputs. Each channel supports 0.5 A continuous current, with a surge capability of 1.5 A for 50 ms, repeatable every 2 seconds. The module is compact, with dimensions of 6.9 cm × 9.4 cm × 9.4 cm, and weighs only 0.074 kg. Designed for seamless integration into FLEX I/O systems, it offers reliable performance with 60 mA Flexbus current and tested 2121 V DC isolation between user and system.

Technical Specifications

Parameter	Specification
Manufacturer / Brand	Allen-Bradley
Part Number / Catalog No.	1794-OB16P
Product Type	FLEX I/O Digital DC Output Module
Number of Outputs	16, non-isolated, sourcing
Output Current Rating	8 A total (16 outputs × 0.5 A)
Surge Current	1.5 A for 50 ms, repeatable every 2 s
Isolation Voltage	Tested at 2121 V DC for 1 s (user vs system); no isolation between channels
Flexbus Current	60 mA
Dimensions (L×W×H)	6.9 × 9.4 × 9.4 cm
Weight	0.074 kg
Shipping Weight	1 kg

Key Features

16 non-isolated DC outputs, sourcing type for FLEX I/O systems.
Each channel supports 0.5 A continuous with 1.5 A surge capability.
Compact and lightweight: 6.9 × 9.4 × 9.4 cm, 0.074 kg.
Flexbus compatible with 60 mA current.
Isolation tested at 2121 V DC between user and system, ensuring system safety.
Ideal for industrial control applications requiring reliable digital output performance.
