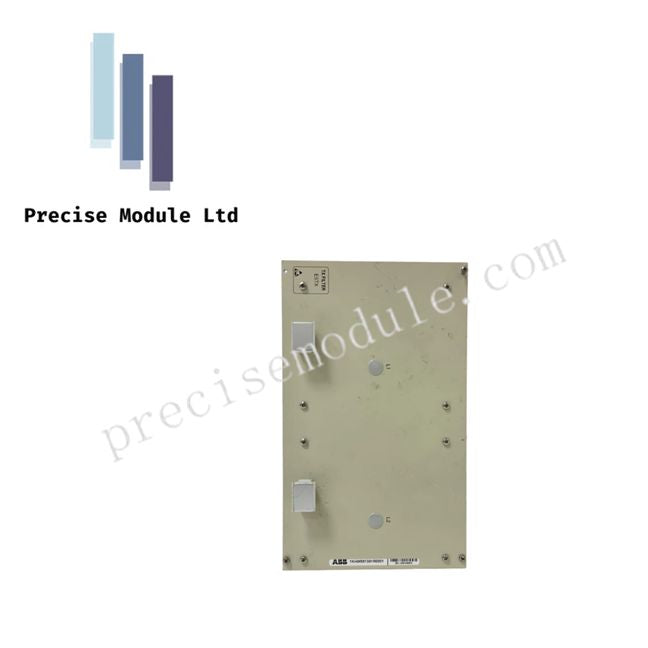

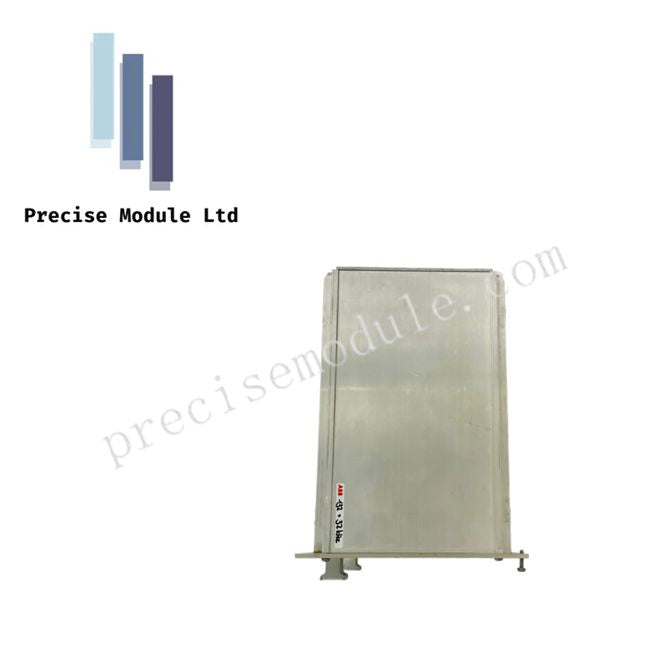

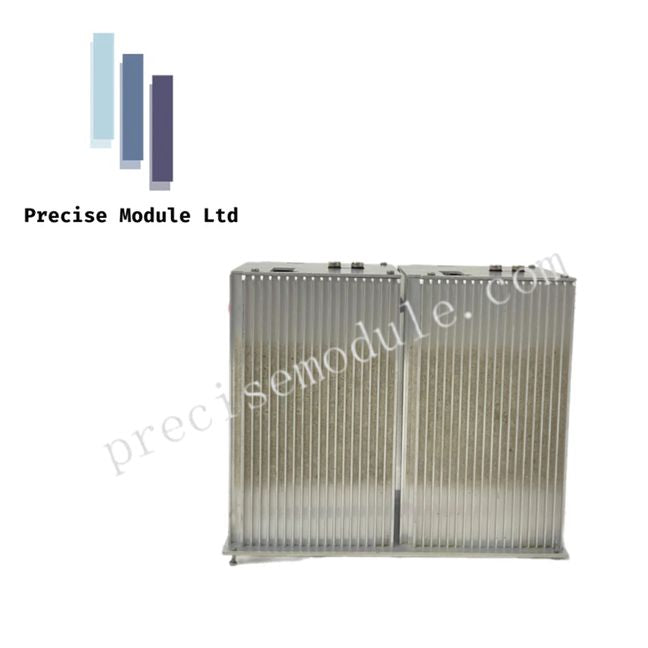

ABB 1KHW001381R0001 E5TX Servo Controller Unit for Precision Motion

Product Description

Overview

The ABB 1KHW001381R0001 is an advanced E5TX Servo Controller Unit designed for precise and responsive control of servo motors in demanding industrial and manufacturing environments. Engineered for high reliability and performance, this controller ensures smooth motion, accurate positioning, and high-speed response, making it ideal for complex automation and motion control systems.

Key Features

High-Precision Control: Maintains precise motor speed and position with a velocity loop bandwidth of 1.2 kHz.
Robust Electrical Input: Operates with a wide AC voltage range of 200–480 VAC, 3-phase, supporting both 50 Hz and 60 Hz systems.
Flexible Signal Interfaces: Supports ±10 V analog input and 1 MHz differential encoder interface for accurate feedback.
Current Handling: Continuous current of 5 A RMS with peak capability up to 15 A, ensuring reliable performance under transient loads.
Durable Operation: Designed to operate in temperatures from 0°C to +55°C and withstand storage conditions from -40°C to +85°C.
Compact Design: Dimensions of 2 × 15.5 × 26.2 cm with a lightweight build of 1.2 kg and low power consumption of 15 W.
Protection & Safety: IP20-rated housing suitable for indoor installation, safeguarding internal electronics from accidental contact and environmental stress.
Communication: Integrated Modbus RTU protocol for easy integration into industrial automation systems.

Technical Specifications

Applications

Servo Control in Automation Lines: Ideal for assembly robots, CNC machines, and high-speed conveyor systems.
Precision Motion in Manufacturing: Ensures accurate positioning in packaging, printing, and material handling operations.
Integration in Industrial Drives: Compatible with ABB high-performance drive platforms for efficient energy management and smooth motion control.

FAQ

Q: Is the controller compatible with standard industrial encoders?
A: Yes, it supports 1 MHz differential encoder signals and standard ±10 V analog inputs.

Q: Can it operate in humid or varying temperature environments?
A: The unit is designed for 5–95% non-condensing humidity and a temperature range of 0°C to +55°C during operation.

Q: What is the difference between this model and similar ABB servo controllers?
A: The 1KHW001381R0001 E5TX emphasizes high-speed velocity loop response (1.2 kHz) and compact installation dimensions, suitable for mid-power servo applications (0.5–5 kW), differentiating it from higher-power ABB models like the E6 series.
