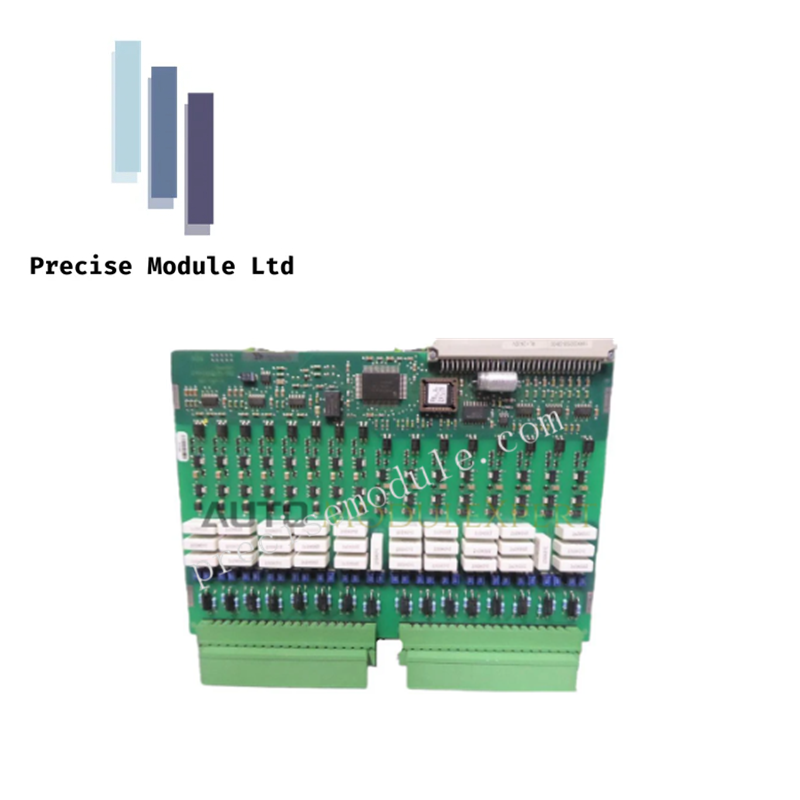

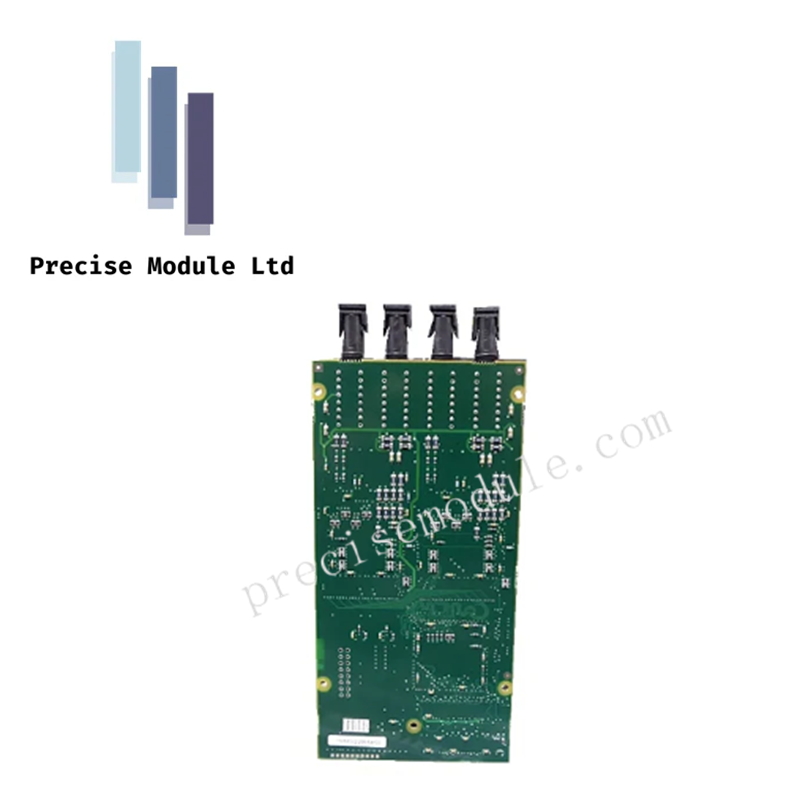

ABB|1MRK002266-AArO3|Relay Card

Product Overview

The 1MRK002266-AArO3, is a high-density protection and control interface module belonging to the ABB Relion 670 series, specifically optimized for the REL670 transmission protection system. Identified by revision 1MRK002266-AArO3, this relay card serves as a critical bridge between primary substation equipment and the intelligent electronic device (IED) logic. It is engineered to handle complex monitoring tasks, providing a combination of multi-channel analog acquisition and high-speed digital switching. Designed for the most demanding utility environments, the 1MRK002266-AA (1MRK002266-AArO3) ensures high-fidelity signal processing and sub-2ms response times, which are vital for maintaining grid stability and protecting high-value assets.

Technical Specifications

The 1MRK002266-AA features an extensive array of I/O and communication capabilities to support modern digital substations.

Advanced Functional Features

The 1MRK002266-AA (1MRK002266-AArO3) is distinguished by its industrial-grade architecture and precise synchronization:

• Sub-Cycle Processing: With a response time of less than 2ms, this card allows the REL670 system to detect and initiate trip sequences faster than conventional mechanical relays.

• High-Density I/O Layout: The integration of 8 analog inputs and 16 digital outputs on a single card maximizes slot efficiency within the IED chassis.

• Superior Galvanic Isolation: A 2500V RMS isolation rating protects the sensitive microprocessor electronics from high-voltage transients and ground potential rises.

• IEC 61850 Readiness: Native support for modern substation protocols allows for seamless peer-to-peer GOOSE messaging and station bus integration.

Application Compatibility

While specifically utilized within the REL670 distance protection framework, the 1MRK002266-AA is also compatible with other 670 series IEDs (such as RED670 or REC670) depending on the backplane configuration. It is primarily used for:

• Transmission line fault detection and distance relaying.

• Synchrocheck and energizing check functions.

• High-speed binary signaling for teleprotection schemes.
