ABB 216EA61b UNITROL 6000 MEGATROL Analog I/O Module

Product Description

Overview

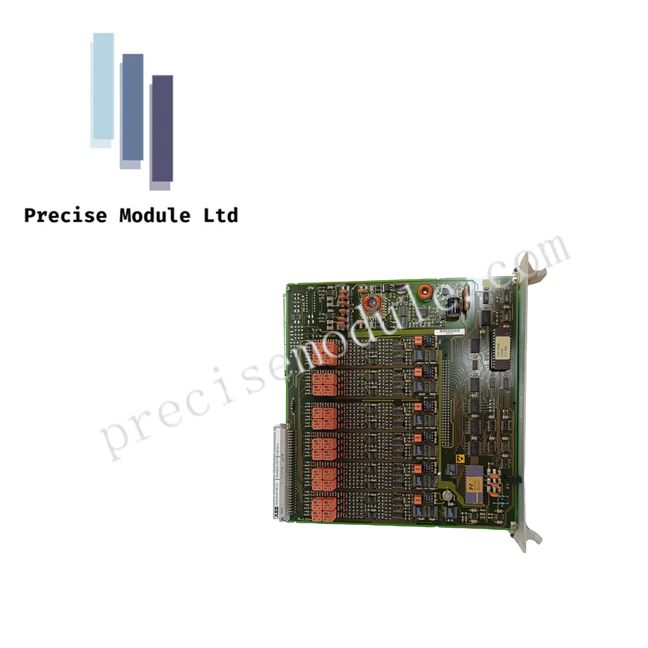

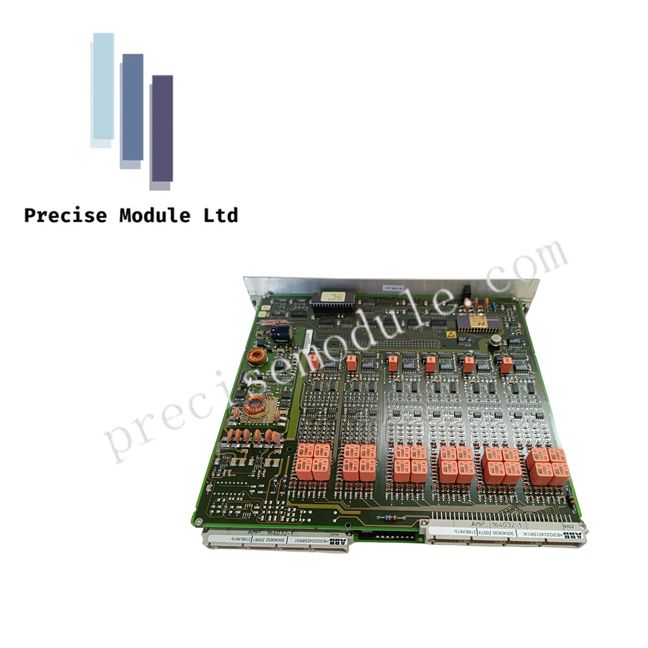

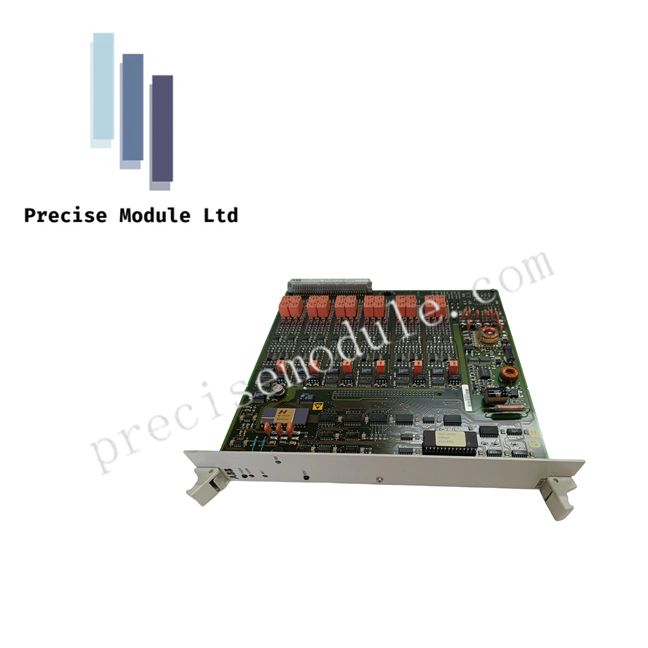

The 216EA61b is a high-performance analog input/output module from ABB, designed for UNITROL 6000 and MEGATROL excitation and static frequency converter systems. It serves as the primary interface for analog signals between field devices, such as sensors and transducers, and the high-speed controllers like AC 800PEC. This module ensures precise signal acquisition and rapid processing, critical for automatic voltage regulation and grid stability.

Key Features

• Multichannel Analog Capability: Multiple independent inputs and outputs allow simultaneous monitoring of generator terminal voltage/current, field voltage/current, and auxiliary parameters like stator temperature.

• High-Speed Conversion: Equipped with high-resolution A/D and D/A converters, the module processes signals with minimal latency, enabling millisecond-level response to grid transients.

• Signal Conditioning and Filtering: Built-in analog filters suppress high-frequency noise and electromagnetic interference, ensuring clean and reliable control data.

• Galvanic Isolation: Each channel is isolated to prevent high-voltage surges from damaging the controller and to eliminate cross-talk between signals.

• Self-Monitoring Diagnostics: Onboard diagnostics detect hardware faults, power issues, and out-of-range signals to improve system uptime and facilitate maintenance.

Technical Specifications

Applications

The 216EA61b is ideal for high-speed analog signal acquisition in power plants, excitation systems, and static frequency converters. It ensures reliable regulation, fast AVR response, and accurate signal monitoring for generators and auxiliary systems.

FAQ

Q: Can the 216EA61b handle both voltage and current signals?
A: Yes, it supports multiple analog input and output types, including ±10V and 4–20 mA loops.

Q: Is it compatible with older UNITROL 6000 systems?
A: Compatibility depends on the firmware version of the AC 800PEC; always verify before replacement.

Q: How does it differ from similar analog I/O boards?
A: Compared to other REG216 series modules, the 216EA61b provides higher channel density, faster conversion, and advanced onboard diagnostics.
