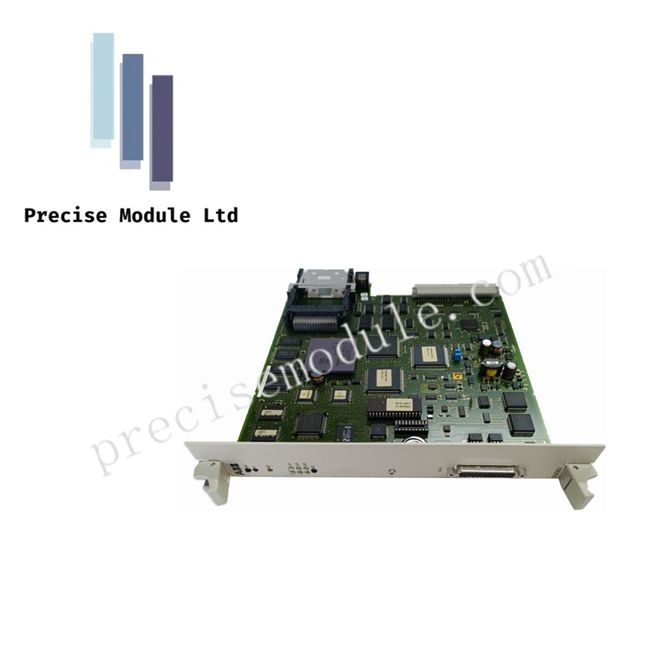

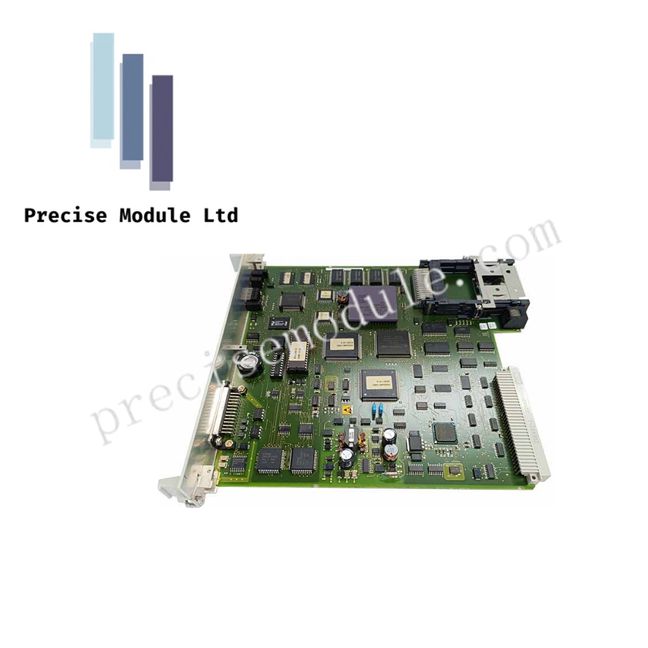

ABB 216VC62a UNITROL 6000 Voltage Coupler Module

Product Description

Overview

The 216VC62a from ABB is a precision voltage coupling and signal interface module engineered for the UNITROL 6000 excitation system. It delivers reliable voltage measurement and signal conditioning, bridging high-voltage components such as generator terminals or excitation transformers with low-voltage control electronics like COB or AC 800PEC controllers. This ensures accurate regulation of generator output while safeguarding sensitive electronics against voltage transients.

Key Features

• High Accuracy Signal Conversion: Maintains exceptional linearity across a broad voltage range for stable generator regulation.

• Galvanic Isolation: Provides complete isolation to prevent control system damage from power-side faults and eliminates ground-loop interference.

• Thermal Stability: Minimal drift ensures consistent readings even under fluctuating cubicle temperatures.

• Fast Dynamic Response: Low propagation delay allows near-instantaneous reaction to grid disturbances or load changes.

• Rugged Industrial Design: Compliant with EMC standards, resistant to electromagnetic interference in power generation environments.

Technical Specifications

Processor and Memory (REG216 Integration)

• 32-bit 80486DX-2 processor

• Flash EPROM for application software storage

• RAM for real-time operational data

• Non-volatile Flash EPROM for configuration storage

• Event memory with gold capacitor backup, 256 events with 1ms resolution

• Time synchronization support for accurate event logging

Communication Interfaces

• RS-423 potential-free interface for PC connection

• Station control bus for message exchange

• Parallel bus B448C supporting up to 32 master units, compliant with IEEE P 896 standard

Power Supply

• 24V DC auxiliary supply

• Redundant power options available

• Data integrity monitoring with handshake protocol

Applications

Ideal for power plant excitation systems, generator terminal voltage monitoring, and fast-response AVR regulation. Essential for environments requiring high reliability, precise signal conditioning, and robust protection against electrical disturbances.

FAQ

Q: Can the 216VC62a handle high-voltage transients?
A: Yes, its galvanic isolation protects control electronics from voltage spikes and ground-loop errors.

Q: Is it compatible with other ABB controllers?
A: Fully compatible with AC 800PEC and COB interfaces in UNITROL 6000 excitation systems.

Q: How does it compare with similar voltage couplers?
A: Compared to other REG216 series modules, the 216VC62a offers faster dynamic response, higher thermal stability, and robust EMI compliance.
