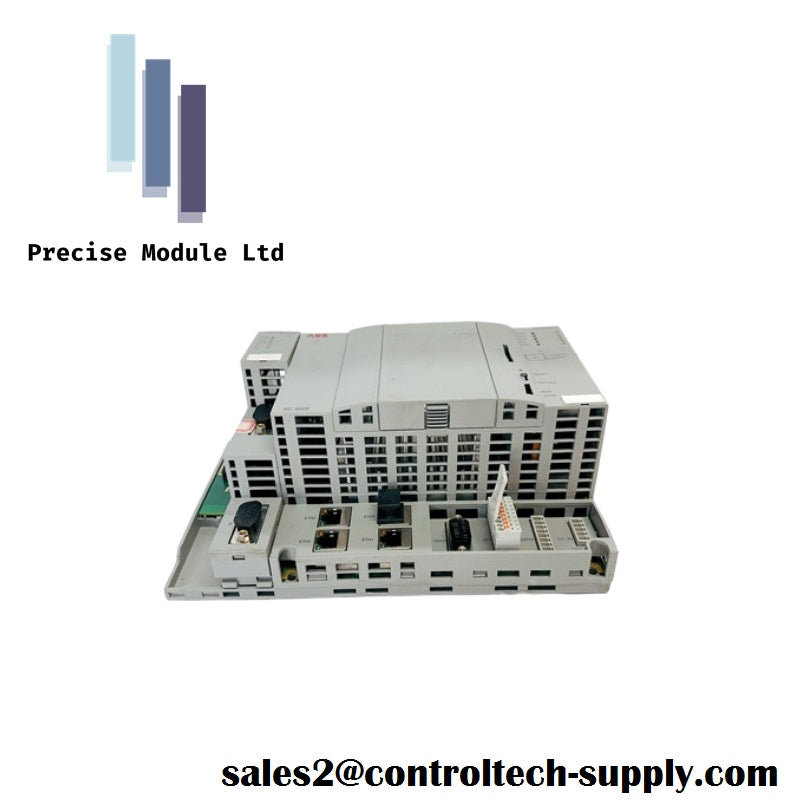

ABB 3BDH001000R0001 Freelance AC 900F CPU Module Factory Sealed

Brand: ABB

Condition: 100% New Original

Payment Terms: T/T

Minimum Order Quantity: 1pc

Product Description: ABB 3BDH001000R0001 Freelance AC 900F CPU Module

The ABB PM 902F 3BDH001000R0001 is a central processing unit (CPU) module for the Freelance AC 900F controller family. It's considered the medium-sized base unit, suitable for applications requiring up to 1500 input/output (I/O) connections. This CPU boasts an 800 MHz processor for fast operation and 24 MB of controller memory for storing program logic. Additionally, it comes with 8 MB of battery-buffered SRAM for critical data retention and 16 MB of DRAM for temporary program execution.

The PM 902F offers four Ethernet ports for flexible networking and communication. It also features two slots for adding communication interface modules, allowing for expansion based on specific project requirements.  An external 24 VDC power supply is necessary to operate this unit.

Features:

Central processing unit for Freelance AC 900F controllers
Supports up to 1500 I/O connections
800 MHz CPU for fast performance
24 MB controller memory
8 MB battery-buffered SRAM for critical data storage
16 MB DRAM for program execution
Four Ethernet ports for networking
Two slots for communication interface modules

Technical Specifications:

Product ID: 3BDH001000R0001
CPU clock speed: 800 MHz
Controller memory: 24 MB
Battery-buffered SRAM: 8 MB
DRAM: 16 MB
Ethernet ports: 4
Communication interface module slots: 2
I/O capacity (supported): Up to 1500
Power supply: External 24 VDC
Dimensions (approx.): 95 x 227 x 152 mm
Weight: 1.1 kg

Competitive Series:

• AC800M series controller I/O module
• AC800F series controller module
• AC31 series controller module
• DCS 800xA series modules
• S800 I/O modules
• S900 I/O modules
• Bailey INFI90 module
• DSQC robot module spare parts
• Advant OCS system spare parts
• H&B Freelance 2000

ABB New Arrival In Stock!!
