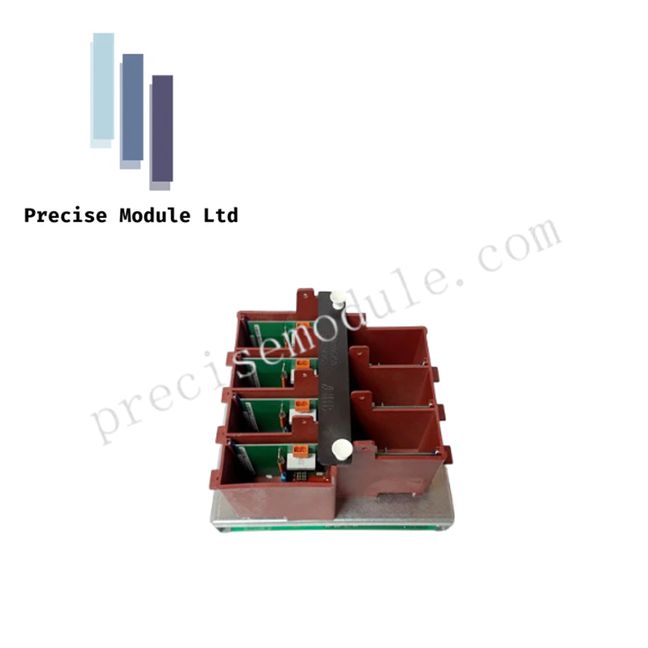

ABB 3BHB004661R0101 Gate Driver Unit | KUC711AE Medium Voltage

ABB 3BHB004661R0101 Gate Driver Unit | KUC711AE Medium Voltage

  • Manufacturer: ABB

  • Product No.: 3BHB004661R0101

  • Condition：in Stock

  • Product Type: 3BHB004661R0101

  • Product Origin: Switzerland

  • Payment:T/T, Western Union

  • Weight: 1500g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The ABB 3BHB004661R0101 (KUC711AE) is a precision Gate Driver Unit engineered for medium-voltage ACS series drives and high-power excitation systems. It serves as the critical interface between low-voltage control circuits and high-power semiconductor switches, providing the fast, high-current pulses required to operate IGCTs and IGBTs efficiently. Its compact, modular design ensures smooth integration, reliable operation, and simplified maintenance in industrial environments.

Key Features

High-Speed Gate Control

  • Delivers precise, nanosecond-level switching for optimized drive efficiency

  • Capable of providing high peak currents to charge and discharge large power module gate capacitances

Integrated Protection

  • Short-circuit and overcurrent detection with automatic shutdown

  • Undervoltage and overvoltage monitoring

  • Thermal overload protection for stable operation under extreme conditions

Robust Communication

  • Fiber optic interface ensures EMI immunity in electrically noisy environments

  • Real-time status monitoring of gate units and power modules

Industrial Reliability

  • High-temperature tolerance and thermal management suitable for enclosed drive cabinets

  • Durable design to withstand high $dv/dt$ and $di/dt$ conditions

Applications

  • ABB ACS5000 / ACS6000 medium-voltage drives

  • MEGADRIVE-LCI converters

  • Power grid converters and excitation systems

  • Mining, cement, oil & gas, power generation, and water treatment sectors

Technical Specifications

Feature Specification
Model Number 3BHB004661R0101
Component Type Gate Driver Unit / Gate Unit
Target Devices IGCT / IGBT Power Modules
Input Voltage 85–264 VAC, Single-Phase
Output Voltage 24 VDC
Output Current Up to 100 A
Protection Features Short-Circuit, Overvoltage, Undervoltage, Thermal Overload
Control Interface Fiber Optic Signal
Status Indicators LED Lights for Operational and Fault Status
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +70°C
Humidity 95% RH, Non-Condensing
Dimensions 100 x 100 x 50 mm
Weight 1.5 kg
Protection Class IP20

FAQ

Q: Can this unit replace any ACS series Gate Unit?
A: Only replace if the model and revision number (3BHB004661R0101) match the existing hardware to ensure correct timing and protection settings.

Q: Is this unit compatible with both IGBT and IGCT modules?
A: Yes, it is engineered to drive both IGCT and IGBT power modules used in medium-voltage applications.

Q: How is the unit cooled?
A: The design relies on convection and the thermal management features integrated within the drive cabinet.
