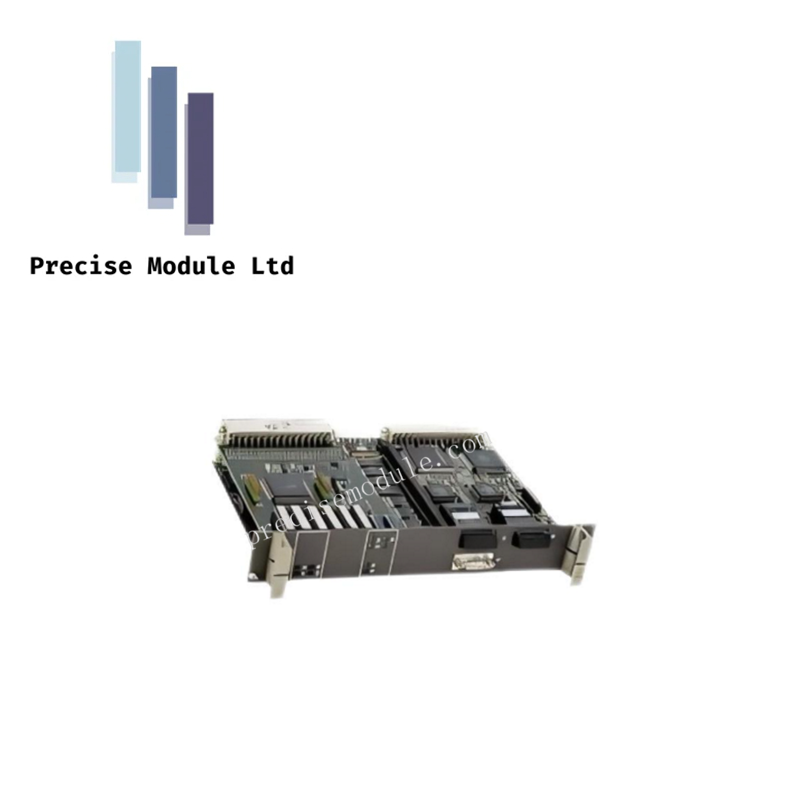

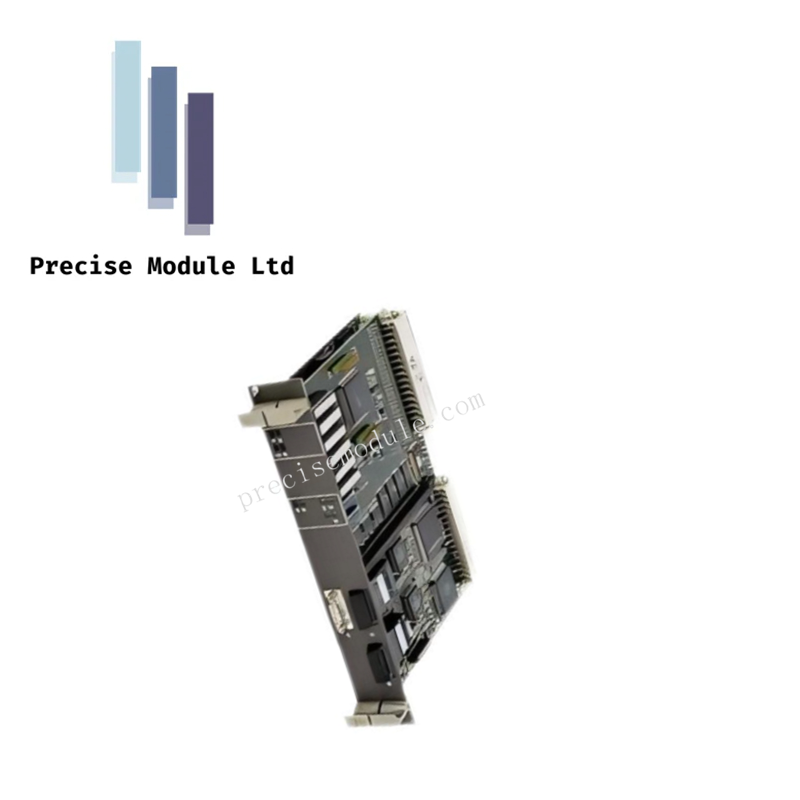

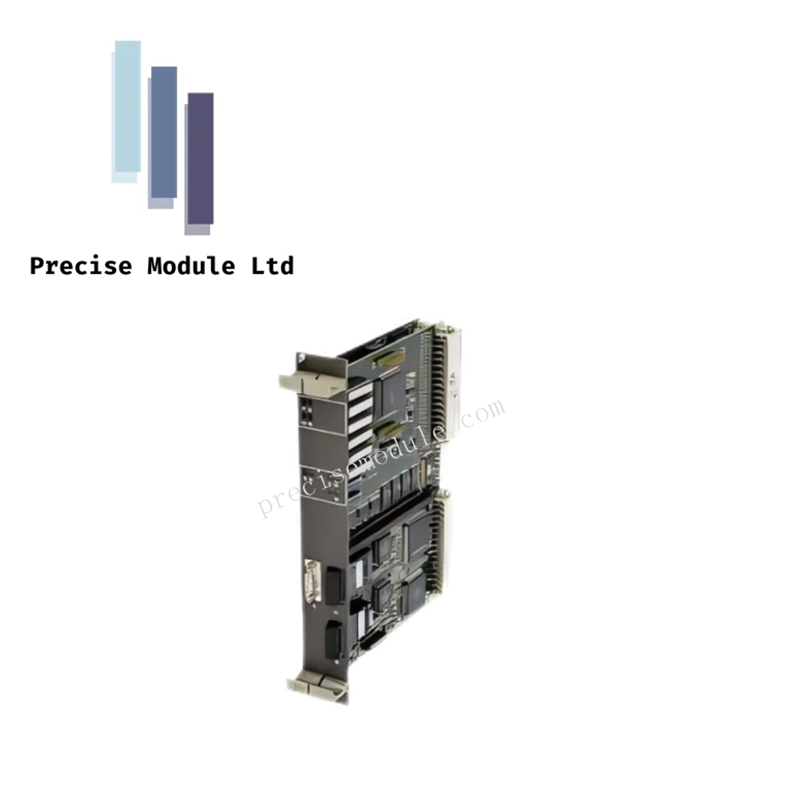

ABB 88TK50B-E GJR2397000R1210 Station Bus Coupling Module

Description

The 88TK50B-E GJR2397000R1210 from ABB is a station bus coupling module designed to connect PROCONTROL systems to the FDDI remote bus. It ensures high-speed, fault-tolerant communication and supports redundant operation with synchronized firmware.

Specifications

• Model Number: IS200AEBMG1AFB

• Manufacturer: ABB

• Series: Mark VI Turbine Control System

• Module Type: Advanced Engineering Bridge Module (AEBM)

• Dimensions: 110 mm × 66.8 mm × 50 mm

• Weight: 0.3 kilograms

• Communication Protocol: FDDI with maximum ring length of 100 km

• Error Detection: CRC protection for reliable data integrity

• Interface: Multi-point industrial connectors compatible with Mark VI backplane

• Power Requirement: 5V DC with maximum power consumption of 3W

• Operating Temperature: -30°C to +65°C

• Installation Method: Slot-mounted for secure integration

• Certifications: CE, UL, RoHS compliant

Features

• High-Speed Data Transfer: Supports low-latency communication between PROCONTROL stations

• Redundant Operation: Requires identical firmware for paired modules to ensure failover readiness

• Multiple Interfaces: Includes station bus, monitoring, and service ports for flexible integration

• Fault-Tolerant Design: Implements CRC protection to maintain data integrity

• Long-Distance Capability: Supports FDDI ring lengths up to 100 km for extended network reach

• Industrial Reliability: Built for continuous operation in demanding automation environments
