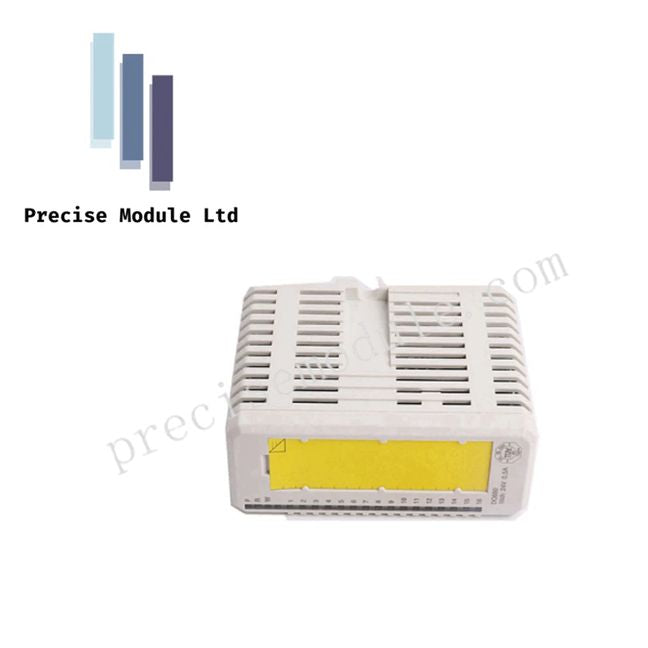

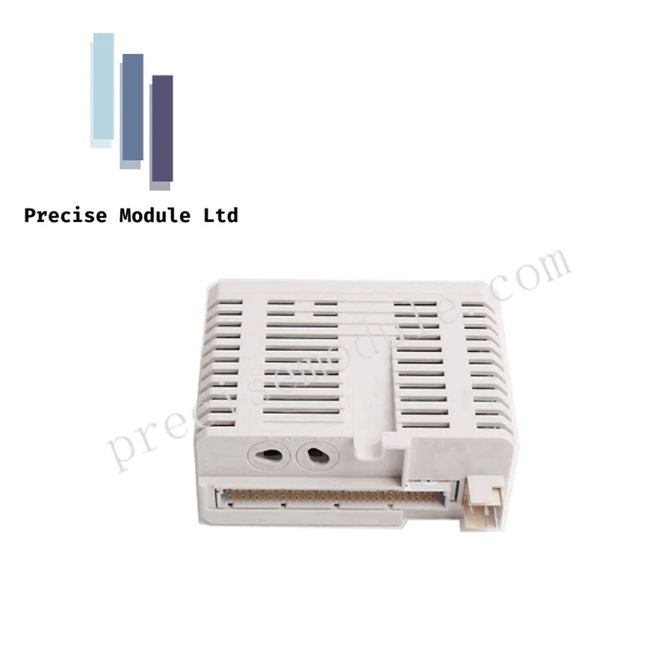

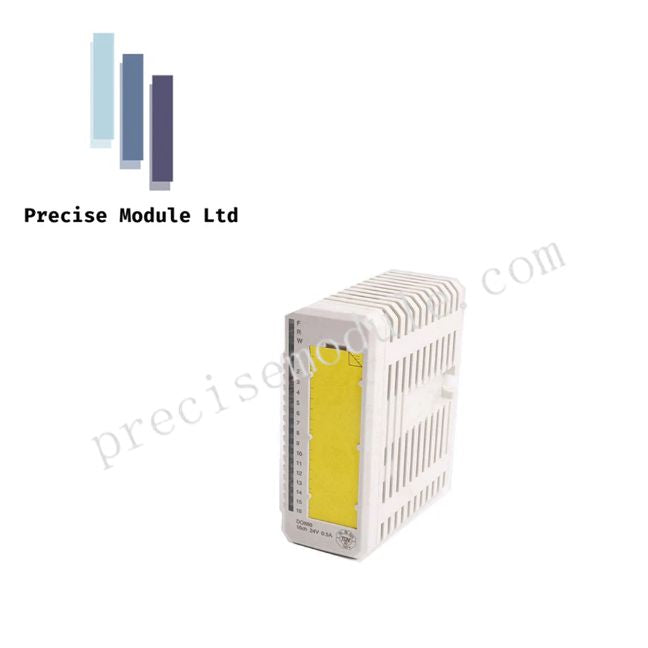

ABB AI880A | 3BSE028586R1 | High Integrity Analog Input Module

Product Overview

The ABB AI880A (3BSE028586R1) is an 8-channel High Integrity Analog Input Module engineered for the S800 I/O platform. Designed for critical industrial applications, the module provides precise monitoring of 0–20 mA and 4–20 mA signals with advanced self-diagnostics and internal redundancy. Ideal for safety-instrumented systems, it meets SIL3 standards when paired with compatible controllers, ensuring reliable data acquisition in demanding environments.

Key Features

SIL3 Safety Integrity
The AI880A incorporates a "1oo2" microprocessor architecture that continuously cross-checks input measurements, ensuring no single hardware fault leads to unsafe process states.

HART Pass-Through Capability
Supports HART 5, 6, and 7 protocols, enabling remote configuration of smart transmitters, retrieval of diagnostic data, and access to secondary process variables without affecting primary signals.

Advanced Self-Diagnostics
Continuous internal monitoring of A/D converters, voltage references, and memory detects inconsistencies, automatically placing the module into a safe state and alerting the controller.

Robust Field Protection

• Current Limiting: Each input channel is protected against short circuits.

• Galvanic Isolation: Protects the controller backplane from transient disturbances and ground loops.

High Accuracy and Resolution
12-bit resolution ensures precise signal measurement, with minimal temperature drift (max. 50 ppm/°C), linear response, and reliable performance under fluctuating environmental conditions.

Technical Specifications

Applications

Safety-Critical Process Control: Suitable for Emergency Shutdown Systems (ESD), Fire & Gas (F&G), and other SIL3 safety applications.

Industrial Monitoring: High-integrity input for chemical, oil & gas, and manufacturing process control.

Remote or Redundant Systems: Supports both single and redundant configurations for reliable operation in critical environments.

Mounting and Installation

• Must be installed with a compatible Module Termination Unit (MTU) such as TU810, TU812, TU814, or TU830 for redundant high-integrity operation.

• Ensure firm seating and proper locking on the ModuleBus connector to maintain reliable communication.

• Confirm cable lengths and field connections comply with S800 I/O specifications.

Frequently Asked Questions (FAQ)

Q: What is the input resolution of the AI880A?
A: The module provides 12-bit resolution, enabling precise analog measurement.

Q: Can it handle HART transmitters?
A: Yes, it supports HART 5, 6, and 7 without interrupting the primary 4–20 mA signal.

Q: Is it certified for safety-critical applications?
A: Yes, the AI880A is SIL3 certified when used with a high integrity controller.

Q: Can I configure it for single and redundant operation?
A: Yes, it supports both configurations to meet system safety requirements.
