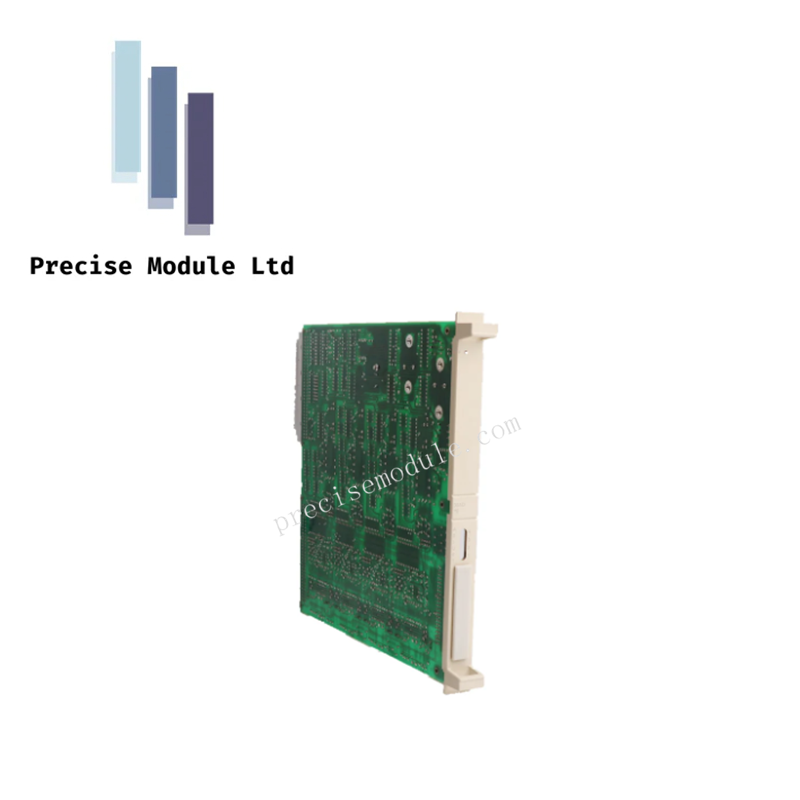

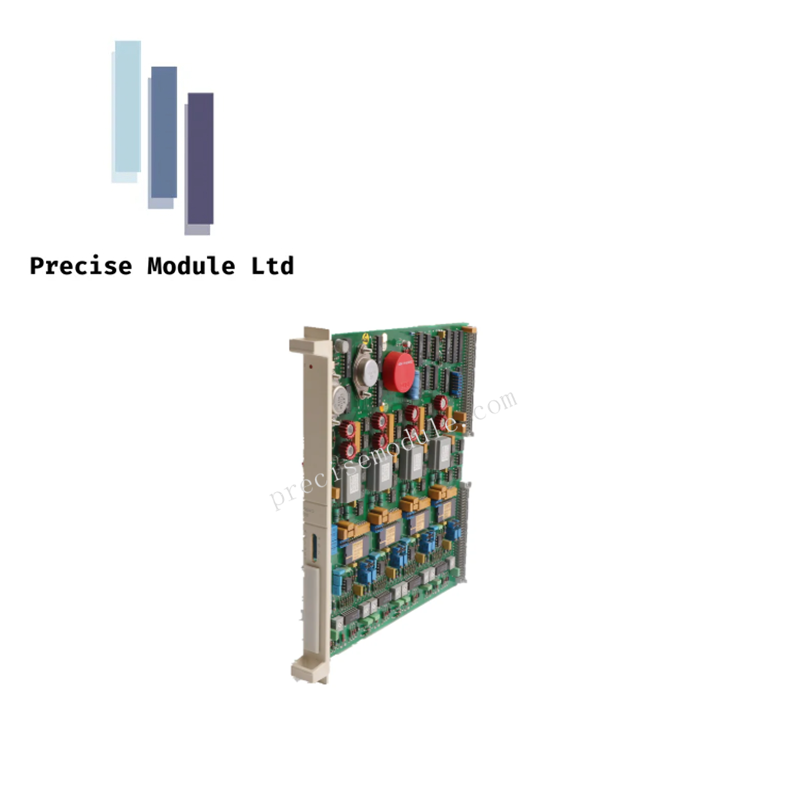

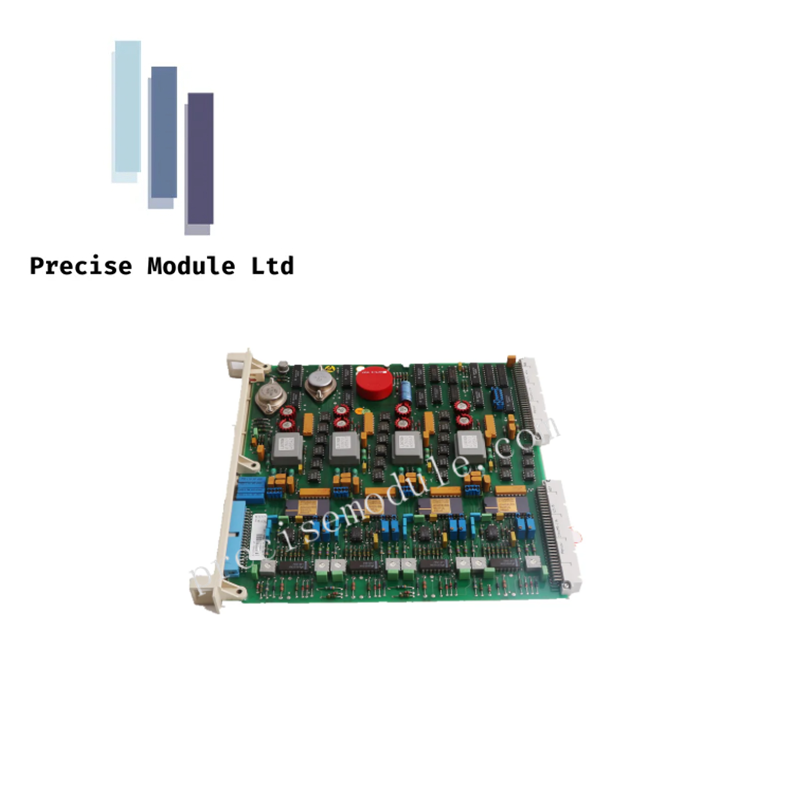

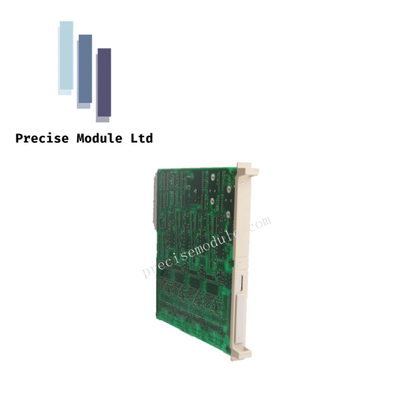

The CBC 11-P 3BDH000734R1 from ABB is an open loop control module designed for precise signal handling in industrial automation systems. It supports high-density I/O and integrates seamlessly with DX channel architectures.
Specifications
Product ID: 3BDH000734R1
Type Designation: CBC 11-P
Channel Type: DX
Number of Input Channels: 48
Number of Output Channels: 36
Product Net Depth / Length: 204 mm
Product Net Height: 340 mm
Product Net Width: 45 mm
Product Net Weight: 0.69 kg
RoHS Compliance: EU Directive 2011/65/EU
WEEE Category: Category 5 – Small Equipment
Battery Count: 0
Features
High-Density I/O: Offers 48 inputs and 36 outputs for complex control tasks
Compact Form Factor: Slim 45 mm width fits easily into control cabinets
Lightweight Design: Weighs only 0.69 kg for easy handling and installation
Environmental Compliance: Meets RoHS and WEEE standards for sustainability
DX Channel Integration: Optimized for systems using DX-type signal processing
Modular Compatibility: Designed for seamless integration with ABB control platforms
No Battery Maintenance: Operates without internal batteries for simplified upkeep
