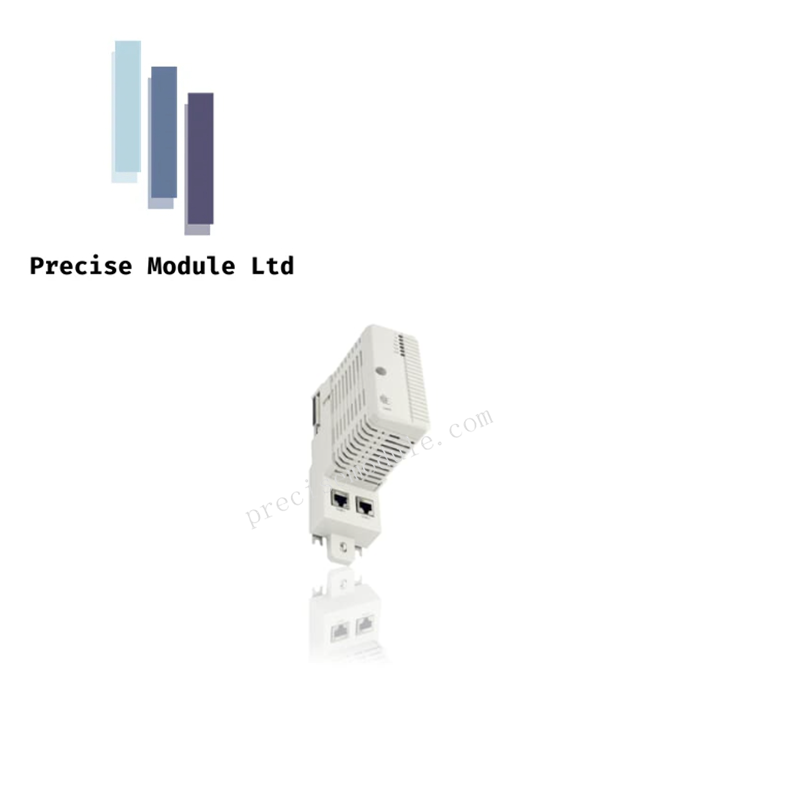

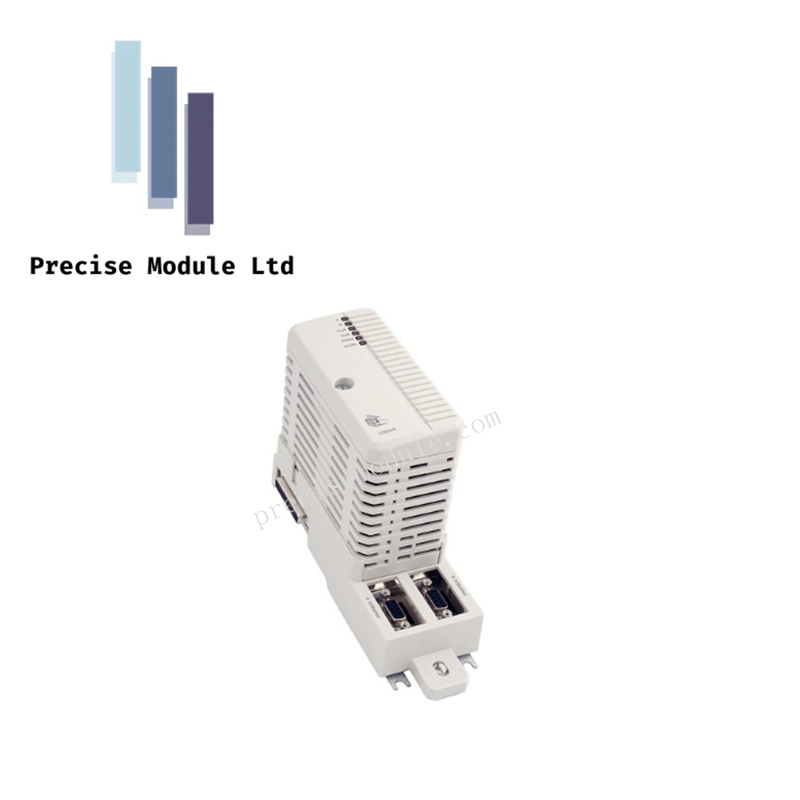

ABB CI855K01 3BSE018106R1 Communication Module

Description

The CI855K01 3BSE018106R1 communication module from ABB enables seamless integration of PROFIBUS-DP networks into AC800M control systems. It ensures fast and reliable data exchange across distributed automation environments.

Specifications

• Model Number: CI855K01 3BSE018106R1

• Manufacturer: ABB

• Interface Type: PROFIBUS-DP dual-channel communication

• System Compatibility: Designed for ABB AC800M controllers

• Power Supply: 24V DC nominal input

• Operating Temperature: -25°C to +70°C

• Mounting Method: DIN rail or panel-mounted configuration

• Dimensions: 186 mm × 119 mm × 57 mm

• Weight: 0.65 kg

• Baud Rate Support: Up to 12 Mbps per channel

• Connector Type: 9-pin D-sub PROFIBUS connectors

• Firmware Storage: Internal flash memory for configuration retention

• Certifications: CE, UL, RoHS compliant

Features

• Dual PROFIBUS Channels: Supports two independent DP networks for flexible topology

• High-Speed Communication: Enables fast data transfer with minimal latency

• Integrated Diagnostics: Monitors network status and detects communication faults

• Modular Design: Easily fits into existing AC800M system architecture

• Hot-Swap Capability: Allows replacement without interrupting system operation

• Secure Data Handling: Includes CRC checks for transmission integrity

• Wide Temperature Range: Operates reliably in harsh industrial conditions

• Low Power Consumption: Efficient design reduces energy usage

• Firmware Upgradeable: Supports updates for enhanced functionality

• Field Proven Reliability: Trusted in ABB automation systems worldwide
