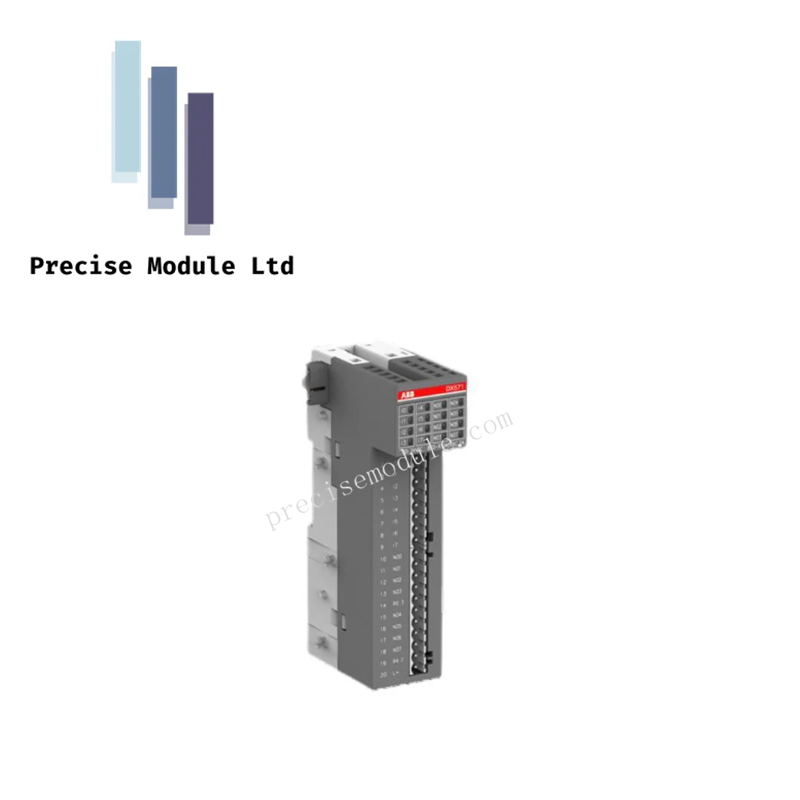

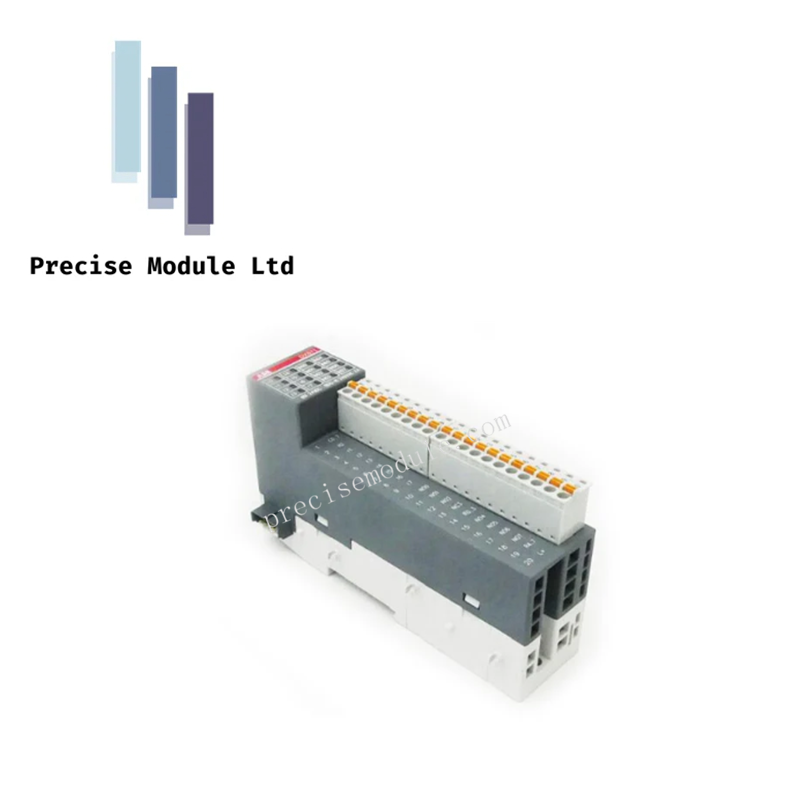

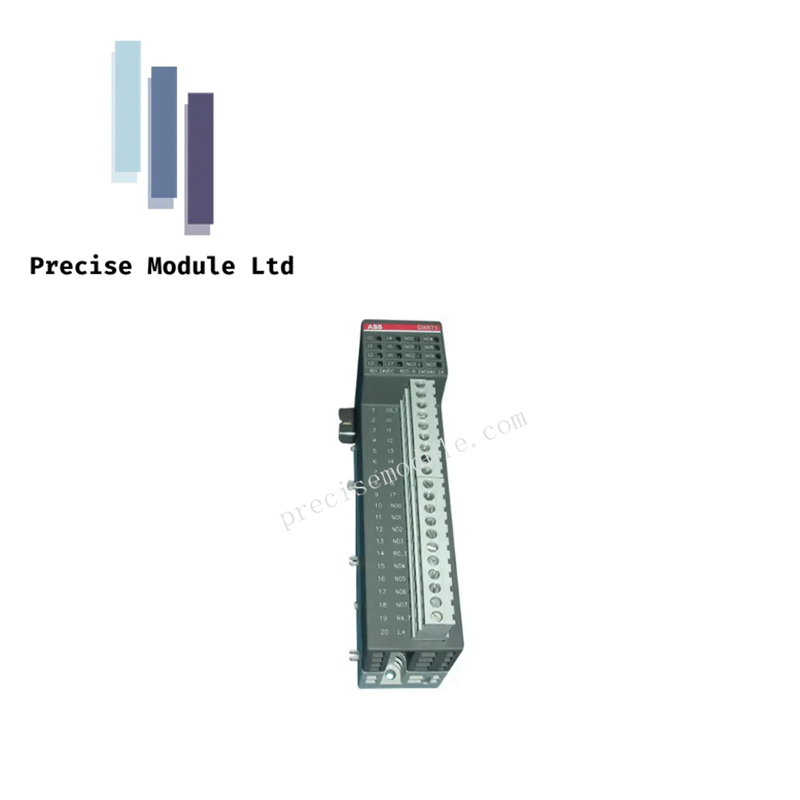

ABB DC562 1SAP231900R0000 Digital Input/Output Module

Description

The DC562 1SAP231900R0000 from ABB is a compact digital input/output module designed for distributed automation systems. It belongs to the S500-eCo series and supports flexible configuration for industrial control applications.

Specifications

• Product Type: DC562

• Product ID: 1SAP231900R0000

• Series: S500-eCo Distributed Automation PLCs

• Function: 16 configurable DI/DO channels

• Input Voltage Type: DC

• Input Current: 5 mA

• Maximum Input Voltage: 0–30 V

• Delay Time: 8 ms

• Output Type: Transistor

• Output Voltage Type: DC

• Output Current: 0.5 A per channel

• Output Voltage Range: 20.4–28.8 V

• Supply Voltage: 20.4–28.8 VDC

• Connection Type: Pluggable terminal

• Degree of Protection: IP20

• Net Dimensions:

  • Depth: 75 mm

  • Height: 135 mm

  • Width: 34 mm

• Net Weight: 0.15 kg

• Gross Weight: 0.222 kg

• Package Dimensions: 93 × 63 × 170 mm

• Units per Carton: 1

Features

• Configurable Channels: Supports 16 digital I/O points for flexible control

• Compact Footprint: Slim 34 mm width fits easily into tight cabinet spaces

• Fast Response: 8 ms delay time ensures timely signal processing

• Transistor Output: Delivers stable DC switching up to 0.5 A

• Wide Voltage Range: Operates reliably from 20.4 to 28.8 VDC

• Pluggable Terminals: Simplifies wiring and maintenance procedures

• Industrial Compliance: Meets IP20 protection standards for automation environments

• RoHS & WEEE Ready: Fully compliant with EU environmental directives
