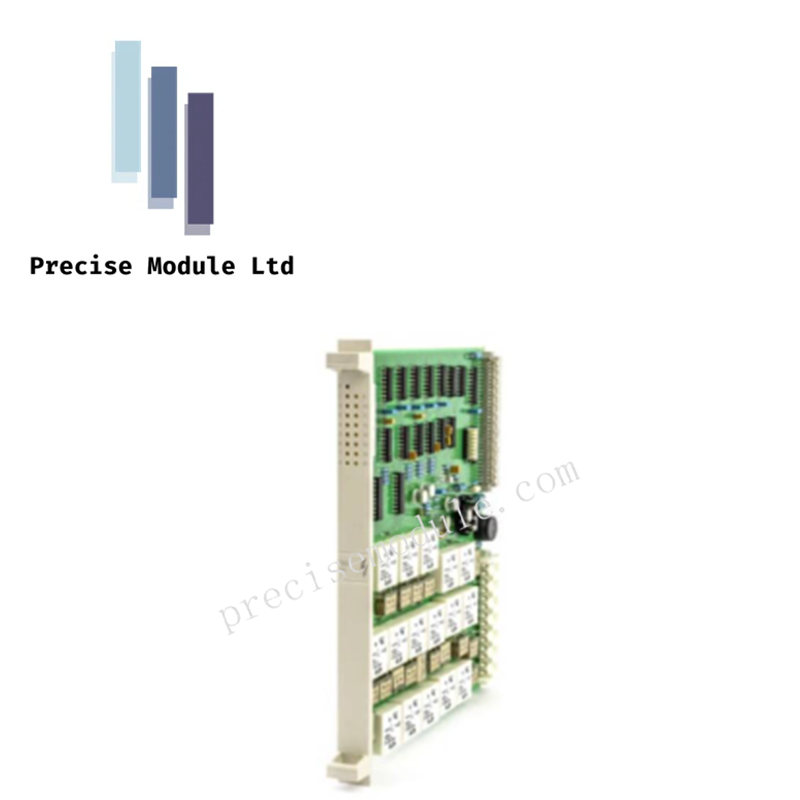

ABB DSD0131 57160001-KX Digital 0utput Unit

Product Overview

The DSDO131 (Part Number 57160001-KX) is a high-density, versatile digital output interface designed for ABB’s industrial control ecosystems. This unit features 16 independent relay channels, providing the critical mechanical isolation required to drive high-power actuators, industrial indicators, and interposing relays. Engineered for "Universal Switching," the DSDO131 is capable of managing both AC and DC loads up to 240V, making it an ideal choice for hybrid control environments where various voltage levels coexist. Its slim, ruggedized form factor ensures high-reliability performance in the electrically noisy and thermally demanding conditions common in process automation and power distribution cabinets.

Technical Specifications

• Module Identification: DSDO131

• ABB Ordering Code: 57160001-KX

• Output Configuration: 16 Digital Relay Channels

• Switching Voltage Range: 0V to 240V AC/DC

• Maximum DC Load Capacity: 48W per channel

• Maximum AC Load Capacity: 720VA per channel

• Isolation Architecture: Physical relay contacts for robust channel-to-logic decoupling

• Physical Depth: 324 mm

• Physical Height: 18 mm

• Physical Width: 225 mm

• Net Weight: 0.7 kg

• Application Scope: Distributed control systems (DCS) and PLC-based actuator management

• Durability: Hardened casing for vibration and interference resistance

System Integration and Safety

The DSDO131 serves as the heavy-duty "execution layer" for control logic. Because it utilizes mechanical relay outputs rather than solid-state switching, it offers superior resistance to voltage transients and allows for the control of completely independent circuits without a common ground requirement. In a typical industrial layout, the 57160001-KX might simultaneously trigger 24V DC solenoid valves and 230V AC status lamps. The unit’s depth and slim height are optimized for standard ABB subrack integration, allowing for massive I/O expansion within a limited cabinet footprint.
