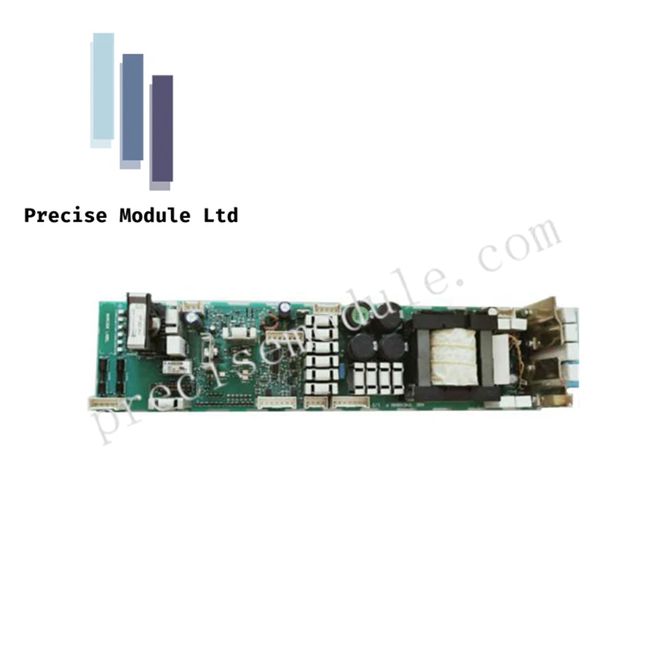

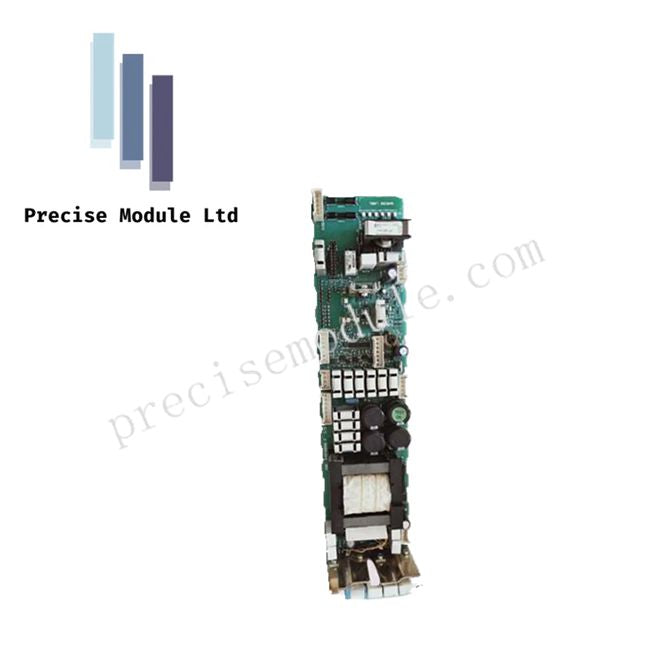

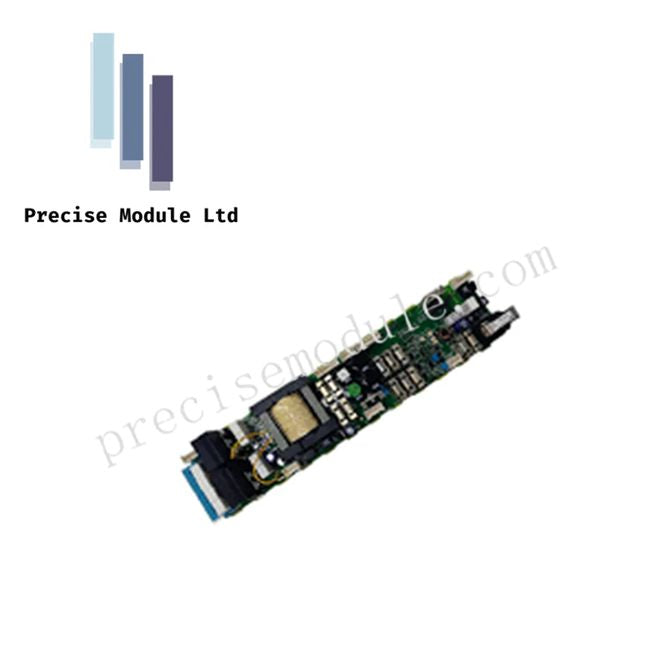

ABB DSMB-01C 64691929 Power Supply & Detection Board

Product Description

Overview
The DSMB-01C (64691929 / 64648896) is an industrial-grade power supply and monitoring module engineered for ABB ACS800 series frequency converters and multi-drive systems. Designed to deliver reliable DC power while continuously monitoring rectifier module performance, this board ensures stable and efficient operation in demanding environments such as metal processing, mining, and renewable energy installations.

Key Functional Features

Power Regulation and Output

• Provides a regulated 24V DC output, with optional auxiliary voltages of 5V DC and 12V DC for secondary logic circuits.

• Supports continuous current up to 4A, with transient peak capability to accommodate start-up loads.

• High-efficiency design (≥85%), reducing heat generation and optimizing system energy use.

Monitoring and Protection

• Integrated detection circuits continuously monitor voltage levels, temperature, and overall rectifier health.

• Built-in safeguards against overvoltage, short circuits, and overloads, ensuring protection of connected drive systems.

• Low ripple and noise (<50mV peak-to-peak) maintain signal integrity for sensitive control modules.

Industrial Design and Reliability

• Operates across a wide temperature range from -20°C to +60°C, with some industrial variants rated up to +70°C.

• High Mean Time Between Failures (MTBF) supports uninterrupted 24/7 industrial operation.

• Complies with IEC 61000 EMC standards, allowing reliable operation near high-power switching equipment.

• Compact form factor simplifies installation in confined control panels.

Technical Specifications

Applications
The DSMB-01C is ideal for multi-drive configurations in critical motor control systems, including:

• Heavy-duty industrial motors

• Multi-drive conveyor systems

• Renewable energy converters

• Process automation requiring stable DC power and module monitoring

FAQ

Q: Can the DSMB-01C be used with older ACS800 drives?
A: Yes, but always verify the board revision to ensure compatibility with your existing firmware and hardware.

Q: What is the expected lifespan of this module?
A: Designed for continuous industrial operation, the DSMB-01C has a high MTBF, typically exceeding 100,000 operational hours.

Q: Are there alternative versions with different voltage outputs?
A: Some variants include 5V DC and 12V DC outputs for auxiliary low-voltage logic circuits.
