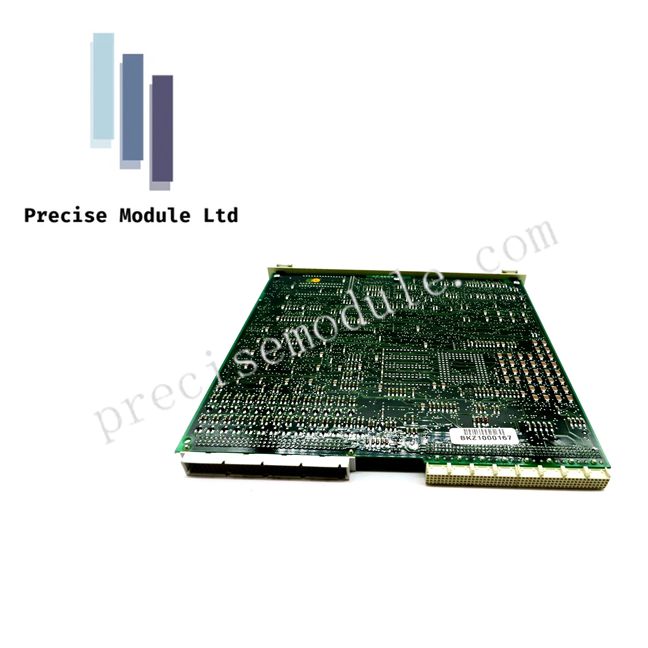

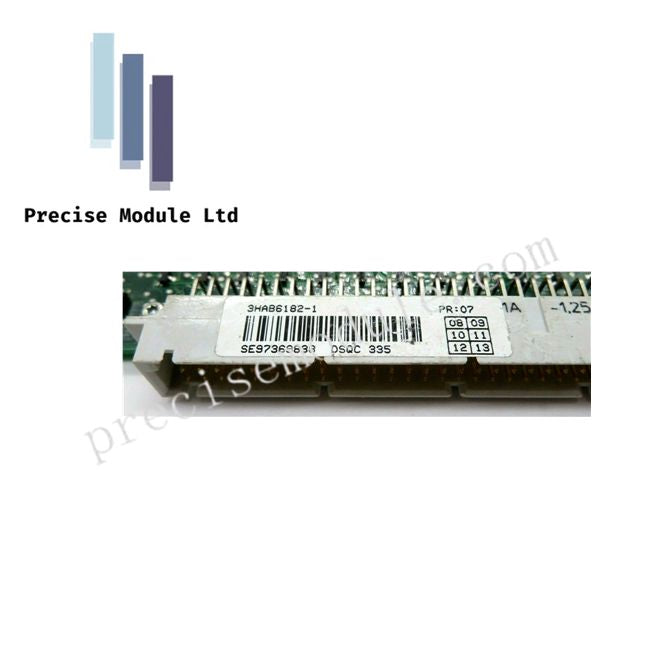

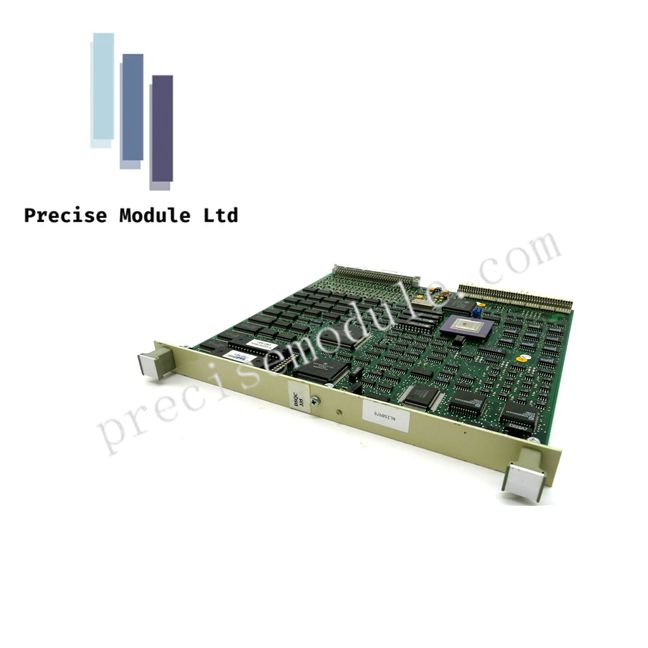

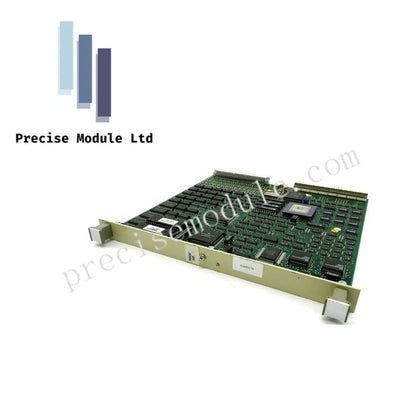

ABB DSQC335 3HAB2241-1 Robot Controller Power Supply Module

Product Description

Overview

The DSQC335 (part number 3HAB2241-1) is a high-performance power supply module designed for ABB S4C and S4Cplus robot controllers. It delivers stable DC voltages to the robot's internal electronics, including control boards, processor units, and auxiliary components. This module integrates protection, monitoring, and power regulation to ensure precise and uninterrupted robotic operation in demanding industrial environments.

Key Features

Precision Voltage Regulation

• Provides multiple regulated outputs: +5V DC for logic and processor circuits, ±15V DC for analog components.

• Low ripple and noise specifications prevent signal errors and ensure stable operation of sensitive electronic modules.

Protection and Reliability

• Over-voltage and over-current safeguards automatically limit or shut down outputs to protect downstream components.

• Thermal management through integrated heat sinks and compatibility with forced-air cabinet cooling ensures safe operation.

• Galvanic isolation separates low-voltage control circuits from high-voltage mains, preventing electrical interference.

Industrial-Grade Durability

• Built with high-quality capacitors and transformers for continuous 24/7 operation.

• Resistant to vibrations commonly found in robotic work cells.

• High MTBF design enhances long-term reliability.

Integration and Maintenance

• Standardized DIN-style plug-in connectors allow quick installation and replacement, reducing maintenance downtime.

• Diagnostic LEDs on the module provide visual status for voltage outputs and fault conditions.

Applications

The DSQC335 is used in ABB S4C and S4Cplus robot controllers, powering internal control electronics for industrial manipulators, welding robots, assembly robots, and other automated machinery. It is critical for maintaining stable operations in manufacturing, automotive, and precision assembly environments.

Technical Specifications

Frequently Asked Questions

What is the purpose of the DSQC335?
It powers all internal electronics of ABB S4C and S4Cplus controllers, ensuring stable operation of motion control and communication boards.

Which controllers is it compatible with?
ABB S4C and S4Cplus robot controllers.

How does it handle faults?
Built-in over-voltage, over-current, and thermal protection safeguard the electronics from damage.

What maintenance considerations are important?
Legacy modules may experience capacitor aging; checking output voltage on the backplane is a standard diagnostic procedure if the controller fails to boot or shows intermittent errors.

Are there similar modules?
The DSQC336 is a newer power supply for upgraded S4Cplus systems, offering higher efficiency and additional monitoring features.
