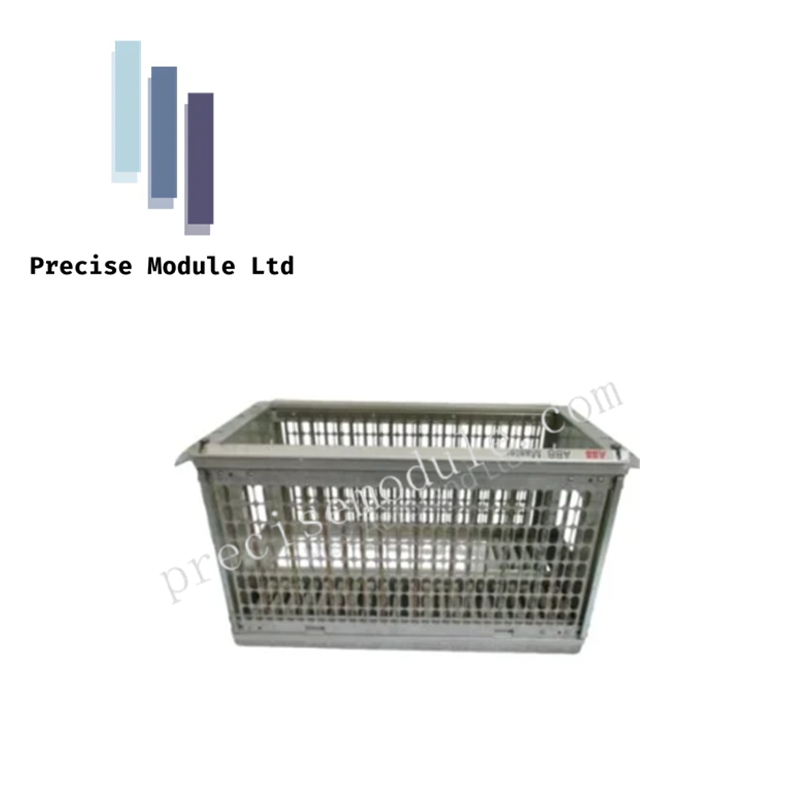

ABB DSRF 180 Equipment Frame

Product Overview

The DSRF180 is a high-reliability equipment frame designed specifically for the ABB MasterPiece 200 and 200/1 series control systems. This subrack serves as the mechanical and electrical foundation for the system's central processing units (CPUs) and I/O modules. Unlike standard passive frames, the DSRF180 features an integrated voltage regulator that stabilizes electrical performance across the backplane, effectively neutralizing power-line noise and ensuring high-fidelity signal routing. Its modular architecture is engineered to streamline the installation of complex distributed control environments, providing a scalable platform that supports both modern industrial standards and legacy system upgrades.

Technical Specifications

• Model Designation: DSRF180

• System Platform: ABB MasterPiece 200 / 200/1 Series

• Primary Function: Mechanical support, power distribution, and signal bus routing

• Power Management: Integrated single-channel voltage regulator for logic stability

• Mounting Configuration: Standard 19-inch rack-mount for industrial control cabinets

• Net Weight: 7.0 kg (Approx. 15.4 lbs)

• Protection Rating: IP20 (Designed for clean-room or cabinet-enclosed environments)

• Form Factor: Optimized multi-slot subrack for MasterPiece modules

• Durability: Industrial-grade construction for continuous 24/7 operation

• Serviceability: Tool-less module insertion and high-access backplane wiring

Key Advantages and Engineering Highlights

The DSRF180 is a critical asset for "High-Availability" control schemes. By integrating voltage regulation directly into the frame, ABB minimizes the risk of CPU resets or I/O communication errors caused by transient voltage dips. In heavy industrial sectors—such as power generation and chemical processing—this hardware-level stabilization is essential for maintaining the integrity of synchronized control loops. The subrack’s design focuses on "Field Upgrade Flexibility," allowing maintenance teams to expand I/O capacity or swap CPU modules without needing to re-engineer the primary power distribution or mounting rails within the cabinet.
