ABB FI830F PROFIBUS DP Master Module | AC 800F Interface

Product Description

Overview

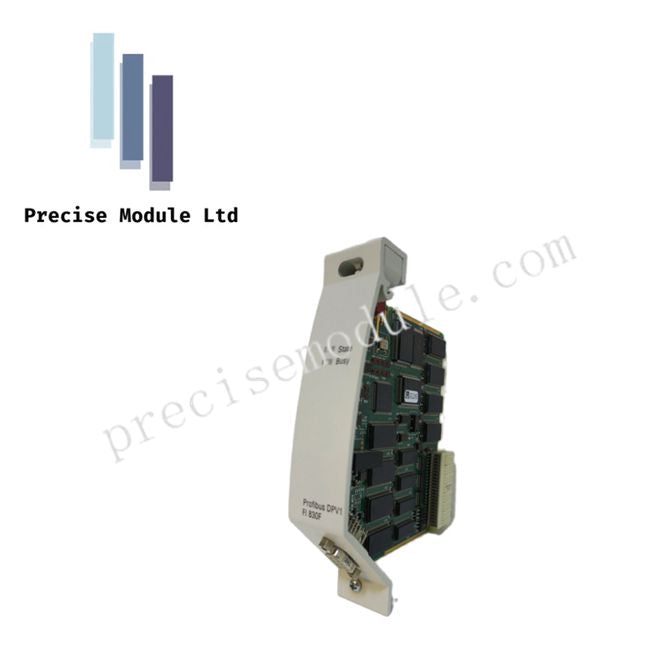

The FI830F from ABB is a high-performance PROFIBUS DP master interface designed for the AC 800F controller platform. It enables real-time communication between the central controller and distributed field devices, including remote I/O, motor starters, inverters, and sensors. The module is engineered for high-speed, reliable data transfer in process, energy, and manufacturing applications.

Key Features

High-Speed Fieldbus Communication

• Supports PROFIBUS-DP V1 with transmission rates up to 12 Mbps

• Real-time cyclic data exchange ensures low-latency performance for critical control loops

• Compatible with Modbus RTU and Modbus TCP for flexible integration

Network Capacity and Scalability

• Connects up to 125 PROFIBUS slave devices per module

• Handles up to 244 bytes of input and 244 bytes of output data per slave per cycle

• Suitable for large-scale distributed control systems

Diagnostics and Monitoring

• Front-panel LEDs indicate module status, errors, and communication health

• Supports GSD and DTM files for configuration, monitoring, and diagnostics via Freelance Engineering software

• Redundant pair configuration for communication continuity in case of module or cable failure

Reliability and Installation

• DIN rail mountable, hot-swappable module when used with AC 800F backplane

• Operating temperature range: -40°C to +70°C, storage up to -45°C to +85°C

• Protection rating IP20, compliant with CE, RoHS, and IEC 61131-2

Technical Specifications

Applications

• Process control in chemical, papermaking, and metallurgical plants

• Energy generation, transmission, and distribution systems

• Manufacturing automation including automotive assembly lines and packaging machinery

• High-speed, high-reliability fieldbus networks requiring real-time data interaction

FAQ

Q: Can the FI830F module connect multiple third-party devices?
A: Yes, it interoperates with PROFIBUS-compliant devices from various manufacturers.

Q: Is the module suitable for hot-swapping?
A: Yes, when used with the appropriate AC 800F backplane, it supports hot-plugging without system downtime.

Q: What redundancy options are available?
A: FI830F can be configured in redundant pairs to maintain communication in case of failure.

Q: Which engineering software supports module configuration?
A: Fully integrated with ABB Freelance Engineering software and Control Builder F environment.
