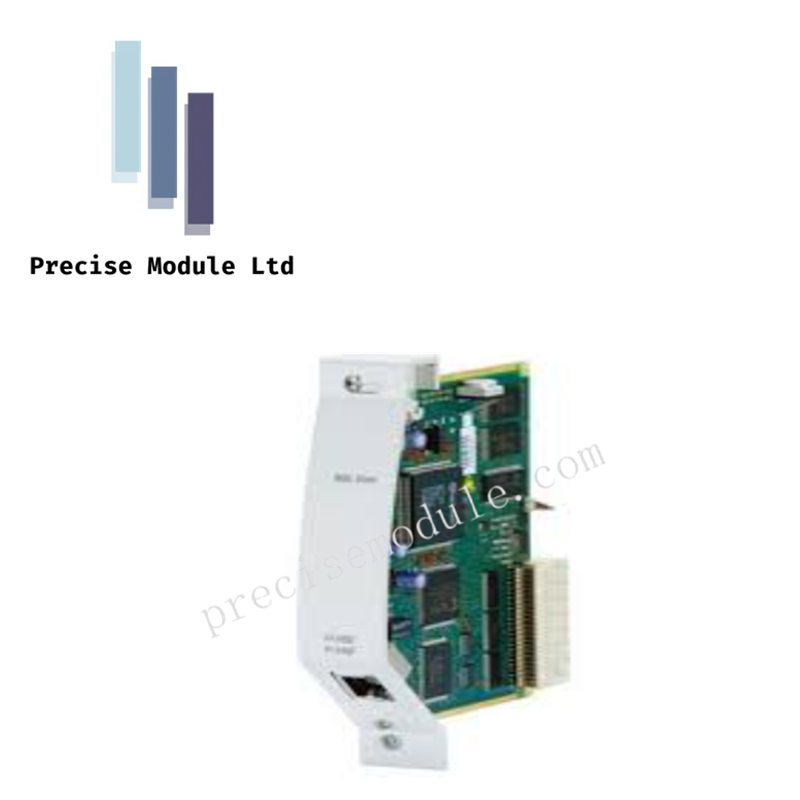

ABB FI840F Fieldbus Communication Module

Technical Overview

The FI840F is a high-performance communication expansion module designed specifically for the ABB AC 800F controller family. This interface serves as the critical link between the process control layer and field-level instrumentation, implementing the FOUNDATION Fieldbus High-Speed Ethernet (FF HSE) protocol. By leveraging the FI840F, engineers can achieve high-bandwidth data exchange, ensuring that complex control loops and diagnostic information are transmitted with microsecond-level precision.

Engineered for the demanding environments of industrial automation, the FI840F facilitates a decentralized architecture. It allows the AC 800F system to manage a high density of field devices while maintaining deterministic communication standards required for safety and efficiency in power, chemical, and manufacturing sectors.

Detailed Technical Specifications

• Protocol Support: Native FOUNDATION Fieldbus HSE (High-Speed Ethernet) integration.

• Transmission Rate: High-speed 100 Mbps data throughput for real-time process transparency.

• Controller Compatibility: Seamlessly integrates into the ABB Freelance AC 800F system architecture.

• Electrical Requirements: Standard 24 VDC power supply input.

• Thermal Endurance: Robust operating range from -40°C to 70°C (-40°F to 158°F), suitable for unconditioned cabinet environments.

• Physical Footprint: Compact dimensions of 125 mm x 155 mm x 28 mm.

• Structural Integrity: Lightweight 150g design originating from ABB Sweden manufacturing facilities.

Application and Integration

The FI840F module is typically utilized in large-scale industrial plants where FF HSE backbones are necessary to connect multiple H1 links or high-speed field instruments to the central DCS. Its ability to handle multiple channels ensures that the AC 800F controller remains scalable as the number of field assets grows. This module is essential for users requiring advanced device management and remote diagnostics through the Fieldbus architecture.
