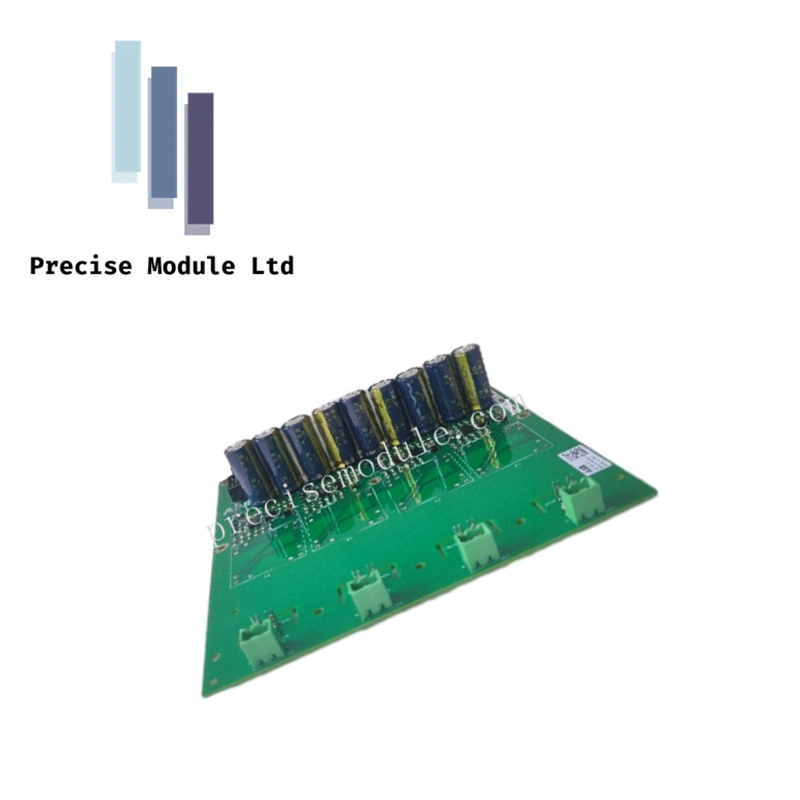

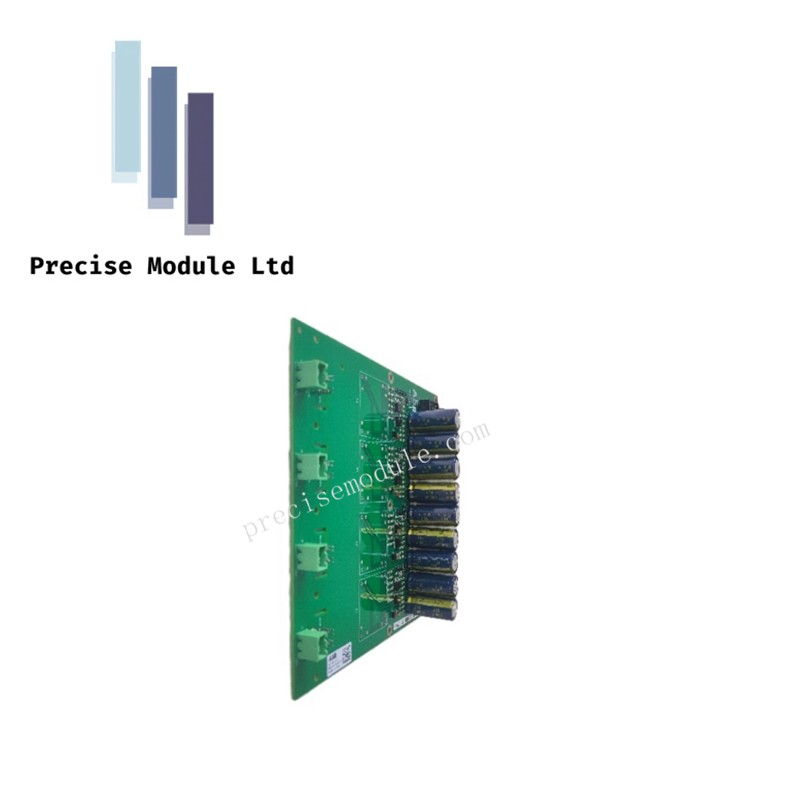

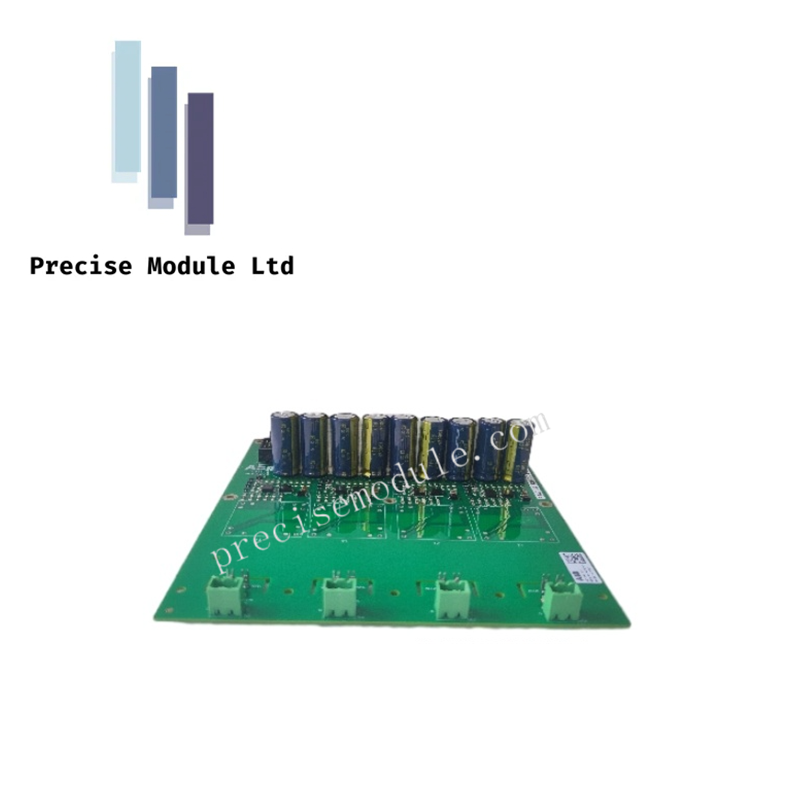

The GDC801B101 3BHE051592R0101 from ABB is a compact digital input/output module designed for industrial automation systems. It supports high-speed signal processing and integrates seamlessly with PLCs and fieldbus networks.
Specifications
Manufacturer: ABB
Model: GDC801B101
Part Number: 3BHE051592R0101
Input Channels: 8 digital inputs
Output Channels: 8 digital outputs
Input Voltage: 24 VDC
Output Voltage Range: 18 to 34 VDC
Nominal Output Current: 1 A per channel
Max Output Current per Block: 12 A
Switching Frequency: Up to 500 Hz
Short-Circuit Protection: Yes
Communication: Compatible with fieldbus protocols
Protection Class: IP20
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Certifications: CCC, CE, cULus
Features
High-Speed Processing: Supports fast digital signal switching up to 500 Hz
Dual Functionality: Combines input and output channels for flexible control
Robust Design: Industrial-grade build ensures stability in harsh environments
Easy Integration: Works with various PLCs and automation platforms
Modular Format: Compact size simplifies installation and system expansion
Reliable Protection: Includes short-circuit and reverse polarity safeguards
Certified Quality: Meets international standards for industrial automation
