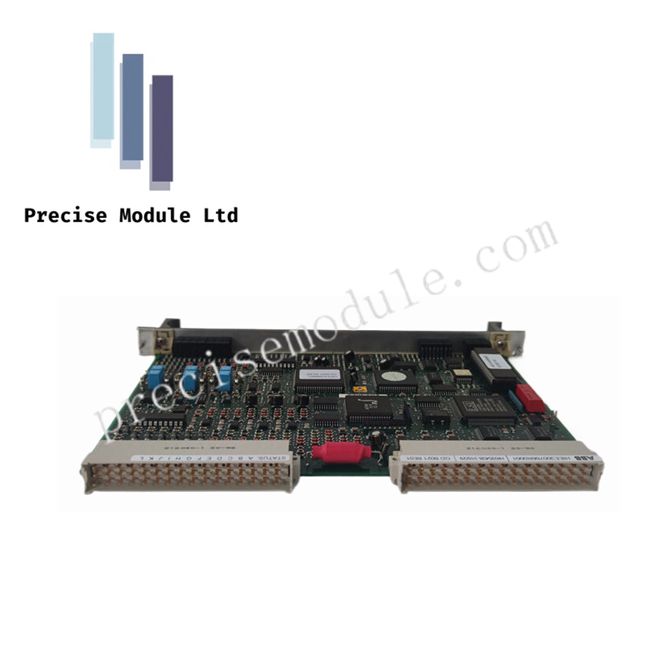

ABB GDB021BE01 HIEE300766R0001 Gate Driver Board for UNITROL 6000

Product Description

Overview

The ABB GDB021BE01 (HIEE300766R0001) is a precision gate driver board designed for high-power semiconductor control in ABB UNITROL 6000 excitation systems and MEGADRIVE-LCI large drive converters. It functions as the critical interface between low-voltage control electronics and high-power thyristors or GTOs, delivering precise gate pulses for reliable switching. This board is engineered to provide high pulse currents while maintaining galvanic isolation to ensure both performance and safety in heavy-duty industrial applications.

Key Features

• High-current gate pulses optimized for large-area thyristors and GTOs

• Pulse shaping circuit provides an initial peak followed by a stable "back porch" current

• Minimal propagation delay ensures synchronized multi-phase switching

• Galvanic isolation between control electronics and power circuits

• Status feedback for fault detection including fail-to-fire monitoring

• Ruggedized design suitable for high-vibration and high-temperature environments

• Compact form factor for direct mounting near the power stack

Technical Specifications

Electrical & Signal Characteristics

• Input Signal: Logic-level or fiber-optic depending on system configuration

• Power Supply: Derived from the system’s internal bus

• Gate Pulse: High peak current with controlled pulse shape

• Propagation Delay: Minimal to ensure synchronized operation

• Feedback: Status outputs for gate health monitoring

Mechanical & Environmental

• Mounting: Subrack or power module integrated

• Cooling: Natural convection or forced air depending on system setup

• Operating Temperature: -25°C to +55°C

• Protection Class: IP20 (system dependent)

• Form Factor: Modular, compact architecture for low inductance gate leads

System Compatibility

• ABB UNITROL 6000 Series excitation systems

• MEGADRIVE-LCI large motor drives

• High-power industrial rectifiers and load-commutated inverters

Performance & Safety

• Galvanic Isolation: High-level protection from high-voltage spikes

• Adaptive Protection: Supports dynamic load-based adjustment for optimized reliability

• Monitoring & Diagnostics: Trip events, alarms, and predictive maintenance logging

• Communication Interfaces: Optional Modbus RTU, Profibus DP, or Ethernet/IP

• Energy Monitoring: Real-time measurement of current, voltage, power, and harmonics

Applications

• Synchronous Generator Excitation: Precise DC supply to generator rotors

• Large Motor Drives: High-horsepower LCI systems in mining and oil & gas

• Static Var Compensators (SVC): Power quality management in transmission grids

• Industrial MCCs, power distribution panels, and renewable energy systems

FAQ

Q: Can the board detect a fail-to-fire condition?
A: Yes, integrated feedback signals alert the main controller if gate pulses fail.

Q: What mounting options are available?
A: The board can be mounted in subracks or directly adjacent to power modules.

Q: Does it support fiber-optic input signals?
A: Yes, certain configurations allow fiber-optic signaling for electrical isolation.

Q: What is the operating temperature range?
A: Designed to operate between -25°C and +55°C for industrial environments.
