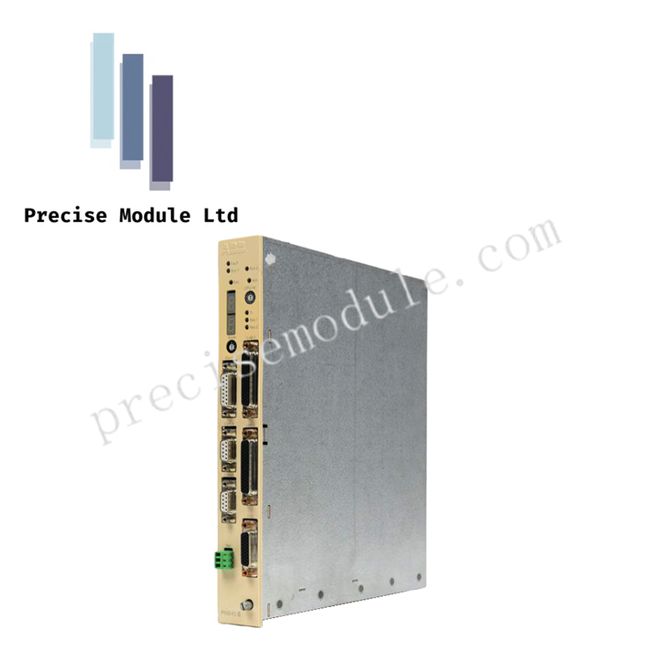

ABB PM645B | 3BSE010535R1 Processor Unit AC 400 Series

Product Description

Overview

The PM645B (3BSE010535R1) is a high-performance processor module within ABB’s Advant Controller 400 series, supporting AC 410 and AC 450 systems. Acting as the central control unit, it executes complex control logic, manages communication with I/O modules, and ensures robust system diagnostics. Designed for demanding industrial environments, it provides high-speed processing and extensive memory for advanced automation tasks.

Key Features and Advantages

High-Speed Processing

• Handles complex logic operations and fast control loops.

• Optimized for critical applications requiring precise process regulation.

Expanded Memory Capacity

• Supports large program libraries and function blocks.

• Provides extensive runtime data storage and historical buffering.

Redundancy Support

• Full CPU redundancy enables dual-processor configurations.

• Secondary processor assumes control seamlessly in case of primary CPU failure, preventing process interruptions.

Multitasking and Communication

• Real-time operating system with prioritized task execution.

• Simultaneously manages MasterBus 300, AF100 communication, and I/O operations.

Diagnostics and Reliability

• Integrated hardware and software diagnostics monitor memory and internal buses.

• Front-panel LEDs indicate Run, Fault, and Maintenance status.

• Battery-backed RAM preserves program and data during power loss.

Software Integration

• Supports IEC 61131-3 logic programming (LD/FBD).

• Integrates MATLAB/Simulink models for high-speed control.

• FPGA support for rapid I/O tasks (PWM, ADC).

Installation and Maintenance

• Vertical DIN rail mounting with insulated screws for proper heat dissipation.

• Power supply: 24 V DC ±10%.

• Shielded cables for I/O and Ethernet connections minimize EMI.

• Firmware updates via Control Builder M engineering tool.

• Quarterly maintenance includes heat sink cleaning and ambient temperature verification (<60°C).

Technical Specifications

Applications

• Central processor for AC 410 / AC 450 automation systems

• Continuous process control in power generation, chemical, and pulp & paper industries

• Upgrade for legacy PM633 or PM645 modules

• High-availability systems with full CPU redundancy

FAQ

Q: Can the PM645B replace older PM645 units?
A: Yes, it provides higher memory and processing speed while maintaining compatibility with AC 400 subracks.

Q: How is redundancy configured?
A: Two PM645B modules operate in a Hot Standby mode for seamless failover.

Q: What programming options are supported?
A: Ladder Diagrams (LD), Function Block Diagrams (FBD), MATLAB/Simulink models, and FPGA programming.

Q: How do I connect Ethernet devices?
A: Use shielded RJ45 cables to PROFINET or Modbus TCP/IP switches, ensuring proper grounding.
