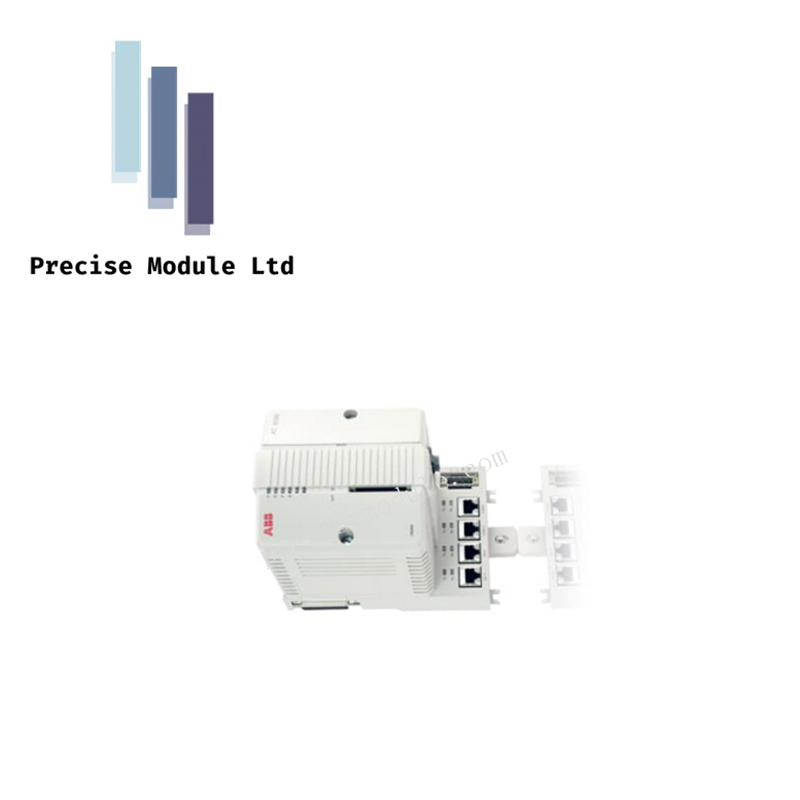

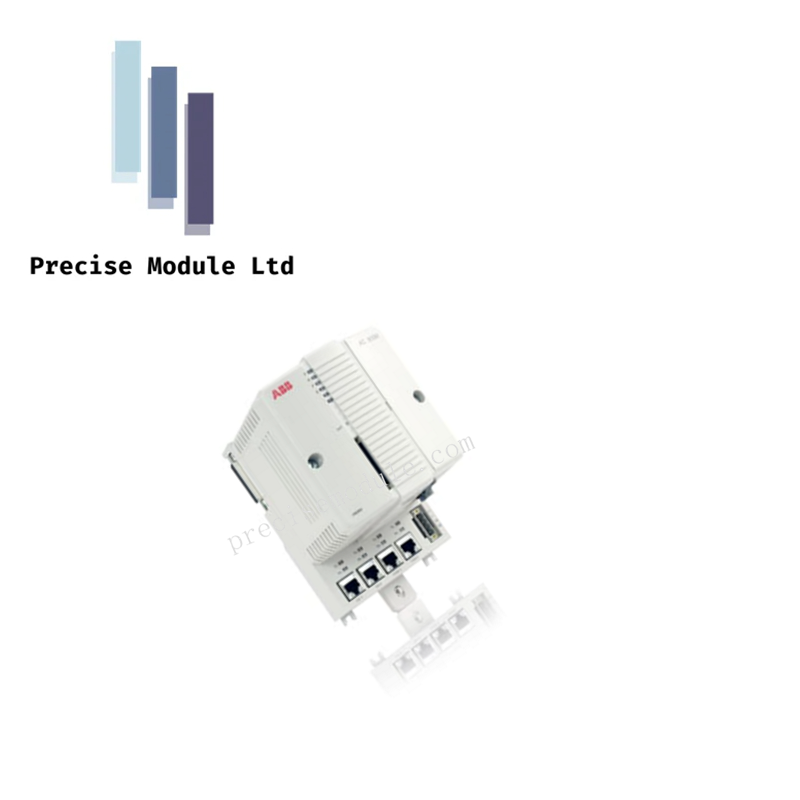

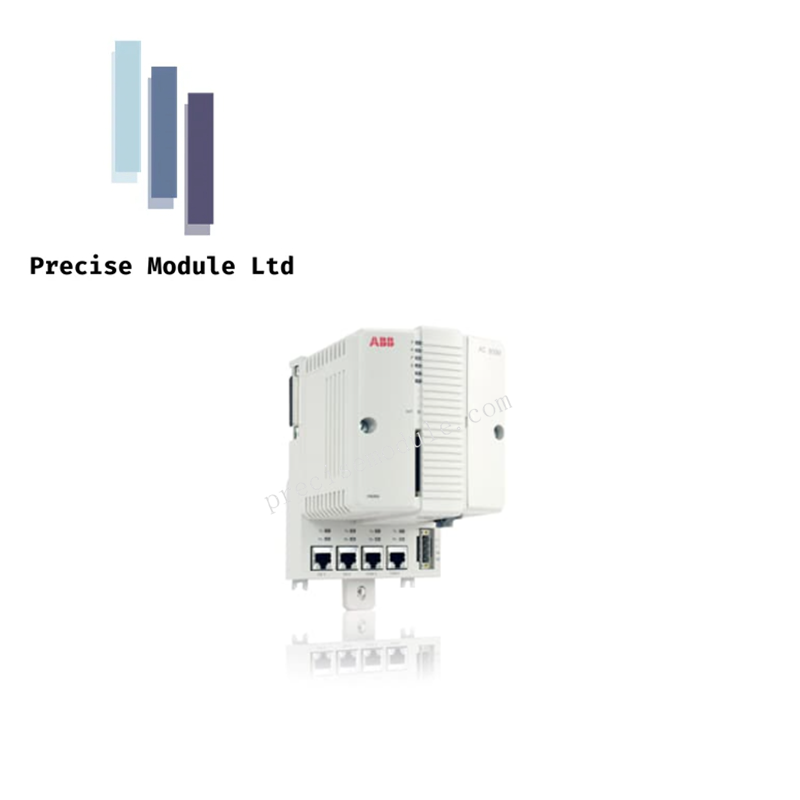

The PM864AK01 REF3BSE018161R1 processor unit from ABB is a high-performance control module designed for AC800M automation systems. It supports real-time applications and ensures reliable operation in demanding industrial environments.
Specifications
Model Number:PM864AK01 REF3BSE018161R1
Manufacturer: ABB
Processor Type: 32-bit RISC processor
Memory Capacity: 32MB RAM, 8MB Flash
Communication Ports: Dual Ethernet ports (RJ45)
Power Supply: 24V DC nominal input
Operating Temperature: -25°C to +70°C
Mounting Method: DIN rail or panel mounting
Dimensions: 186 mm × 119 mm × 57 mm
Weight: Approximately 1.2kg
System Compatibility: AC800M controller family
Certifications: CE, RoHS, UL listed
Features
Dual Ethernet Ports: Enables redundant or segmented network configurations
Real-Time Performance: Supports fast control cycles for time-critical processes
Integrated Diagnostics: Provides system health monitoring and fault detection
Modular Design: Easily integrates with other AC800M modules
Flash Memory: Stores firmware and configuration data securely
Hot-Swap Capability: Allows replacement without system shutdown
Robust Construction: Withstands vibration and harsh industrial conditions
Flexible Connectivity: Supports multiple fieldbus protocols via expansion modules
Secure Operation: Includes watchdog timers and CRC checks for data integrity
Scalable Architecture: Suitable for small to large automation systems
