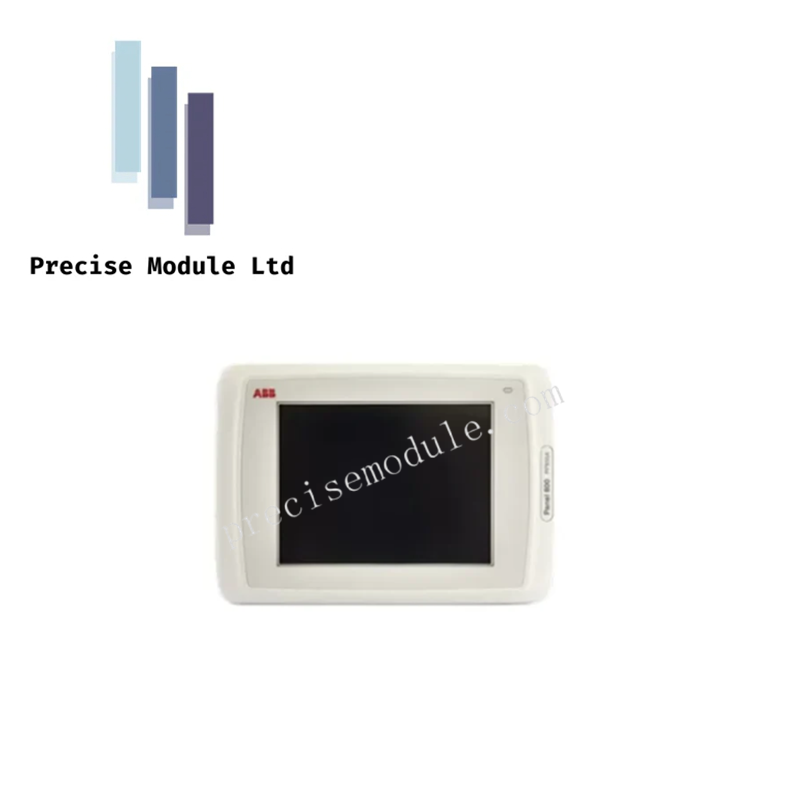

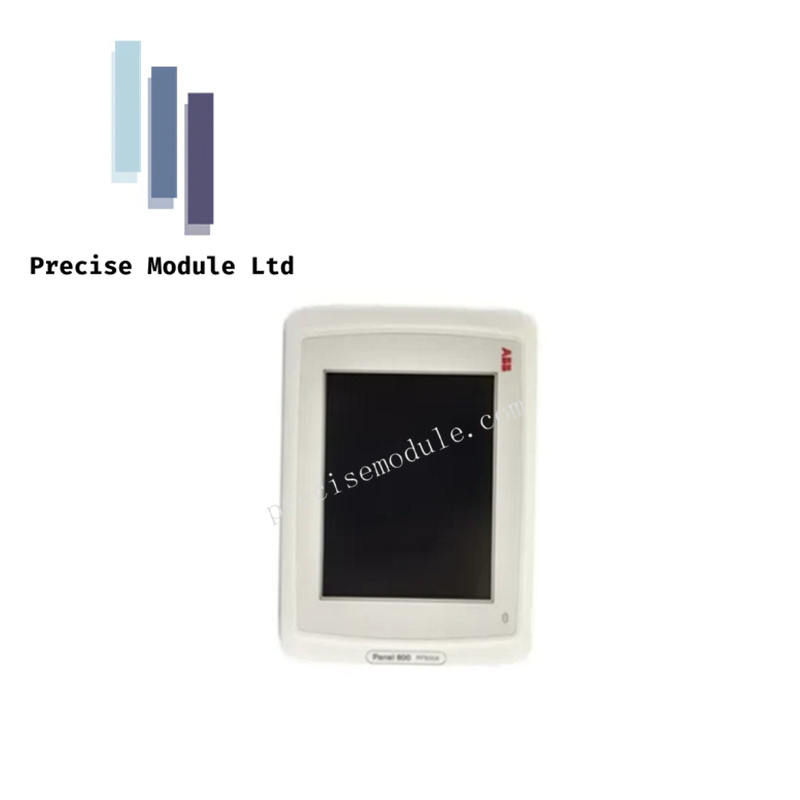

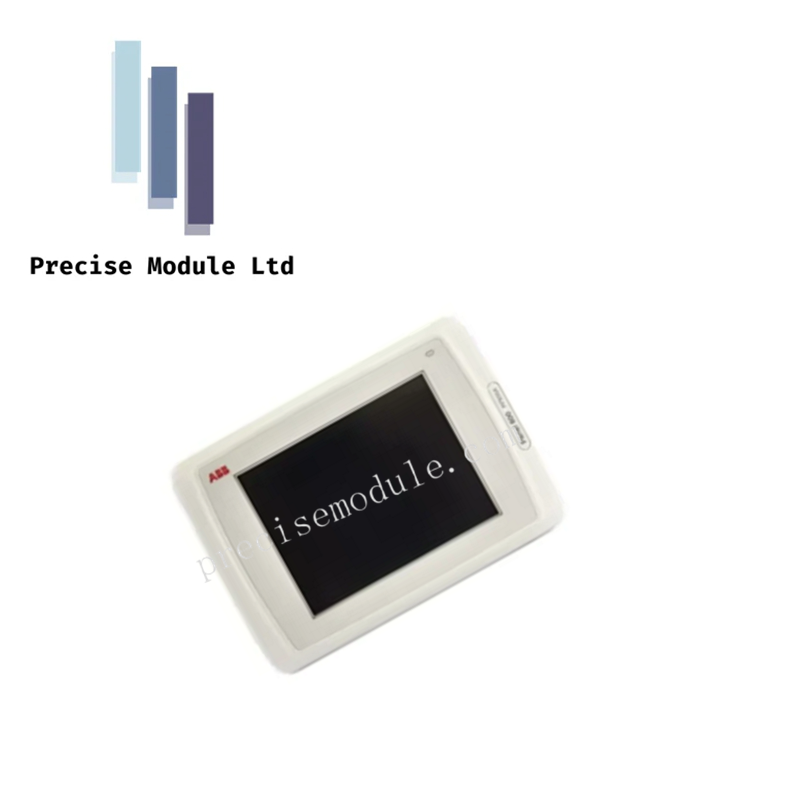

ABB PP865 3BSE042236R2 Touch Panel

Description

The PP865 3BSE042236R2 from ABB is a rugged 15-inch touch panel engineered for harsh industrial environments. It delivers high-resolution visualization, reliable input control, and seamless integration with ABB’s Panel 800 system.

Specifications

• Manufacturer: ABB

• Model: PP865 3BSE042236R2

• Display Type: 15-inch TFT touchscreen

• Resolution: 1024 × 768 pixels

• Color Depth: 64K or 262K colors

• Brightness: 450 cd/m² (typical)

• Backlight Lifetime: Over 35,000 hours at 25°C

• Input Methods: Resistive touchscreen and function keys

• Front Panel Seal: IP65/IP66 rated

• Rear Panel Seal: IP20 rated

• Front Panel Material: Polyester on glass with Autotex overlay

• Rear Panel Material: Powder-coated aluminum

• Front Panel Dimensions: 398 × 304 × 6 mm (W × H × D)

• Panel Cut-out: 355.5 × 278.5 mm (14.0 × 10.96 inches)

• Mounting Depth: 60 mm (160 mm including clearance)

• Weight: 1.9 kg

• Power Supply: +24 VDC (20–30 VDC), 3-pin jack block

• Operating Temperature: –40°C to +70°C

• Storage Temperature: –40°C to +85°C

• Software Requirement: Panel Builder 800 version 5

• System Compatibility: ABB Panel 800 series

Features

• High-Resolution Display: 1024×768 pixel screen ensures sharp and clear process visualization

• Wide Temperature Range: Operates reliably from –40°C to +70°C in extreme conditions

• Durable Construction: IP66-rated front and aluminum rear panel resist dust, water, and impact

• Flexible Input Options: Combines touchscreen and function keys for versatile control

• Long Backlight Life: Over 35,000 hours of continuous operation at standard temperature

• Easy Integration: Fully compatible with ABB Panel 800 systems and configuration tools

• Compact Installation: Slim profile and standard cut-out simplify panel mounting
