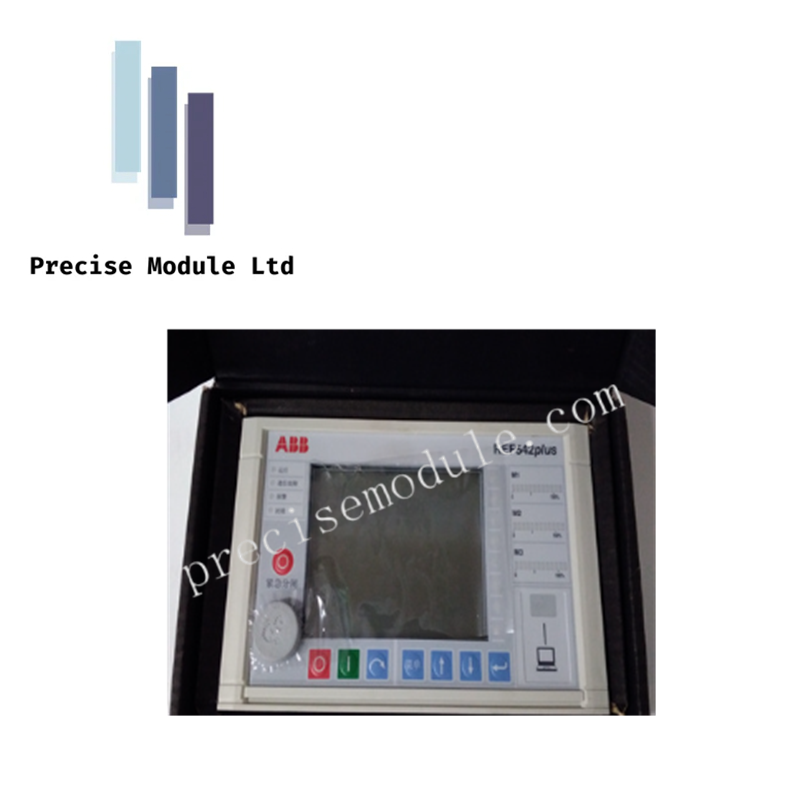

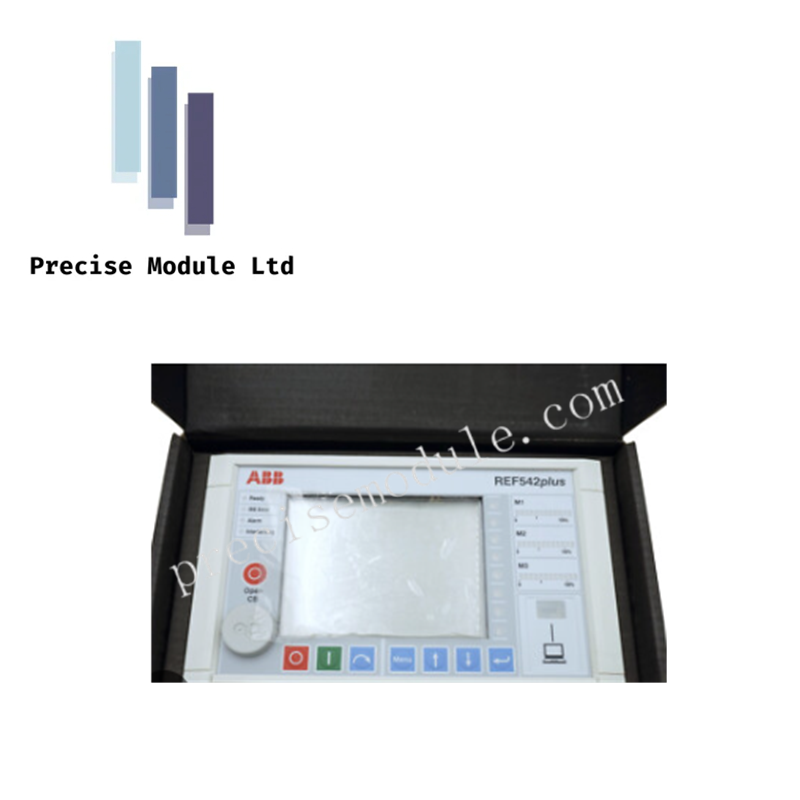

ABB|REF542PLUS 1VCR007346|Multifunction Protection Switchgear Control Unit

Technical Overview

The REF542plus (1VCR007346) represents a versatile, high-integration solution for the protection, control, and supervision of medium-voltage switchgear. This multifunction unit combines traditional protection functions with advanced programmable logic, allowing it to manage complex interlocking and automated sequences within industrial power systems. Engineered for reliability, the REF542plus serves as a centralized hub for monitoring power quality and executing rapid fault clearance.

The hardware architecture of the 1VCR007346 is built for longevity, featuring an MTBF exceeding 100,000 hours. It utilizes internal FLASH and RAM for non-volatile configuration storage and comprehensive event logging, ensuring data integrity even after power cycles or software exceptions.

Detailed Technical Specifications

• Power Supply Range: Universal 110V to 240V AC/DC input.

• Environmental Tolerance: Operating temperature from -25°C to +70°C; storage rated from -40°C to +85°C.

• Network Connectivity: Integrated 10 Mb/s Ethernet port via standard RJ-45 connector.

• Serial Interfaces: RS-232 and RS-485 ports for local and remote integration.

• Supported Protocols: Modbus RTU, TCP/IP, UDP/IP, and SPA communication standards.

• Diagnostics: Advanced watchdog monitoring and reset cause tracking (SW exceptions, fatal errors).

• Mass: 3300g robust chassis design.

• Manufacturing Origin: USA.

System Integration and Applications

The REF542plus (1VCR007346) is primarily deployed in primary and secondary switchgear for utility and industrial distribution networks. Its user-friendly HMI allows for real-time monitoring and field-level configuration changes. Because it supports multiple communication protocols simultaneously, it can bridge the gap between legacy serial-based SCADA systems and modern Ethernet-based substation automation.
