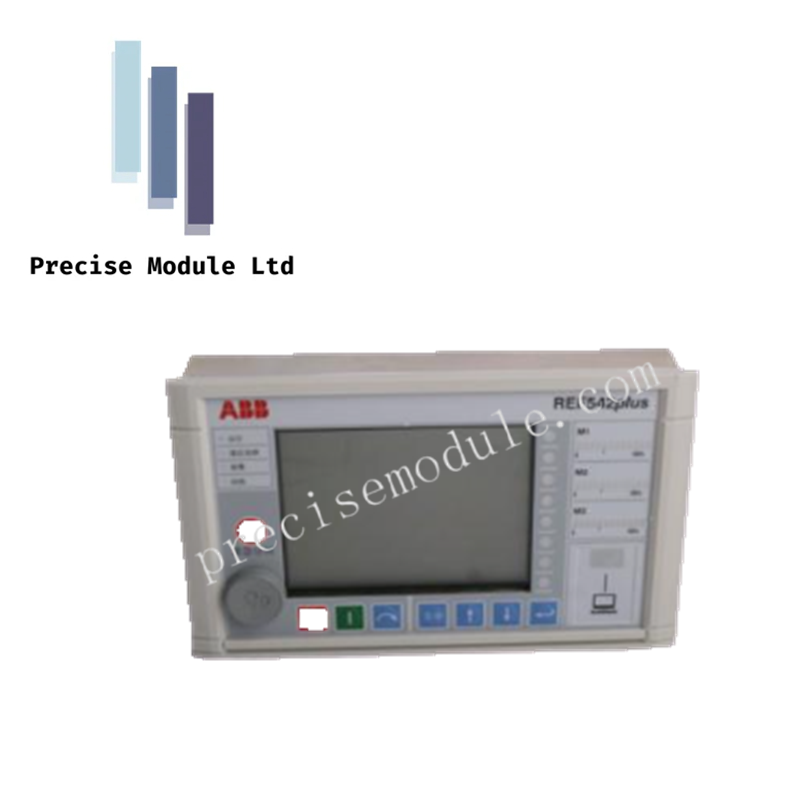

ABB REF542PLUS 2RCA029395 Bay Control and Protection Unit

The REF542plus (2RCA029395) is a sophisticated bay control and protection terminal engineered for high-performance management of medium-voltage substations. This specific unit functions as a centralized intelligence node, consolidating protection, control, measurement, and monitoring into a single hardware platform. By integrating complex interlocking and automation logic, the 2RCA029395 reduces the physical footprint of control cabinets while significantly enhancing operational safety and substation efficiency.

Designed for seamless transition into digital grids, the REF542plus supports native IEC 61850 communication. This ensures high-speed horizontal data exchange (GOOSE) and vertical integration with SCADA systems, making it a cornerstone for modern automated power distribution architectures.

Detailed Technical Specifications

• Control Functionality: Integrated circuit breaker control, automated sequence logic, and software-defined interlocking.

• Communication Architecture: Multiprotoctol support including IEC 61850, Modbus RTU/TCP, and DNP3.

• Diagnostics and Monitoring: High-resolution fault logging and disturbance recording for post-event forensic analysis.

• Human-Machine Interface (HMI): Built-in LCD interface featuring real-time status indicators and programmable soft keys.

• Input Voltage: Universal power supply compatible with 110V to 240V AC/DC.

• Thermal Performance: Operational stability from -25°C to +70°C; storage rated for -40°C to +85°C.

• Installation Flexibility: Optimized for both standard panel-mount and 19-inch rack-mount configurations.

• Build Quality: Robust 5000g industrial chassis, manufactured in Sweden.

Application and System Deployment

The REF542plus (2RCA029395) is primarily utilized in utility substations and heavy industrial plants for bay-level protection of feeders, motors, and transformers. Its programmable logic allows engineers to customize protection curves and control sequences without additional hardware. The unit’s ability to synchronize with external time sources ensures that all recorded events are time-stamped with millisecond precision, which is critical for large-scale network stability analysis.
