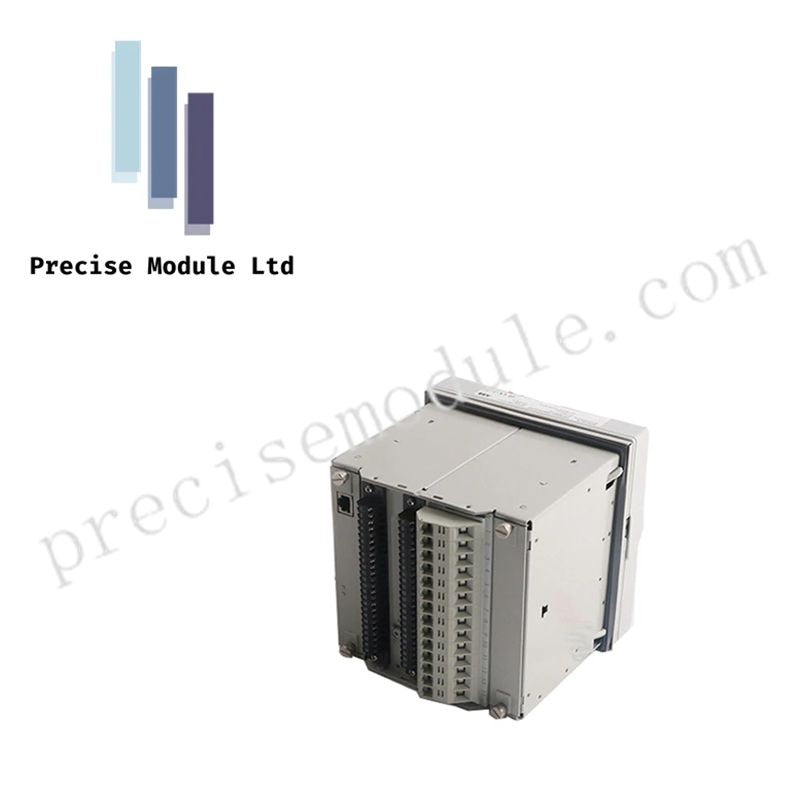

ABB RET316*4 | HESG448750M2 | MODURES® Series | Differential Protection Relay

Product Description:

The ABB RET316*4 (HESG448750M2) is an advanced Differential Protection Relay specifically designed for high-performance protection of three-phase transformers, generators, and motors in power systems. As part of the MODURES® series, the RET316*4 relay provides a modular, flexible, and highly reliable protection solution. It is capable of detecting internal short circuits, ground faults, and other electrical abnormalities that could lead to catastrophic equipment failure. This relay is a key component of ABB's Relion legacy protection family and integrates numerical protection algorithms to ensure precise and rapid fault detection.

The RET316*4 operates on the principle of Numerical Differential Protection by continuously comparing the currents entering and leaving the protected zone. If a significant difference is detected, the relay immediately triggers an alarm or a trip action, preventing damage to critical equipment.

Key Features:

• Differential Protection (87T/87G): Provides fast and reliable protection against internal faults in transformers, generators, and motors.

• Restricted Earth Fault (87N/64R): Detects ground faults close to the neutral point, offering high-sensitivity protection.

• Overcurrent Protection (50/51): Includes backup protection for phase and earth faults to ensure continuous safety during fault conditions.

• Thermal Overload (49): Monitors transformer temperature and calculates the "thermal image" to protect the insulation from overheating.

• Overexcitation (24): Prevents transformer core saturation by detecting excessive excitation levels.

Technical Specifications:

Key Protection Functions:

1. Transformer Differential (87T):

• The RET316*4 utilizes harmonic restraint (2nd and 5th harmonics) to prevent nuisance tripping during transformer inrush events, providing high-speed protection for transformers and other critical equipment.

2. Restricted Earth Fault (87N/64R):

• This function offers high-sensitivity detection for earth faults, particularly useful in scenarios where ground faults occur near the neutral point of a transformer.

3. Overcurrent Protection (50/51):

• The relay provides backup protection for both phase and earth faults, adding an extra layer of safety against electrical failures and abnormal current flow.

4. Thermal Overload Protection (49):

• The RET316*4 calculates the thermal image of the transformer, ensuring that the insulation remains protected from potential damage due to overheating, based on the load current.

5. Overexcitation (24):

• This protection feature is specifically designed to prevent transformer core saturation, protecting transformers from overexcitement during abnormal operational conditions.

Hardware Features:

1. Modular Design:

• The MODURES® platform is known for its flexibility and modularity. The HESG448750M2 assembly includes the processing unit, analog input cards (CT/VT), and power supply module housed within a 19-inch subrack or compact case. This modularity simplifies maintenance and system upgrades.

2. Amplitude and Vector Group Compensation:

• Unlike traditional analog relays, the RET316*4 offers software-based compensation for transformer vector groups (such as Dyn11) and CT ratio mismatches, eliminating the need for additional interposing CTs in most applications, thus reducing system complexity and cost.

3. Self-Monitoring System:

• The relay continuously supervises its own operation. If an internal fault (e.g., in the CPU, memory, or DC supply) is detected, it signals an alarm and deactivates the "Ready" contact to avoid a fail-to-trip scenario, ensuring reliable protection.

Maintenance and Diagnostics:

• Event Recorder: Stores up to several hundred events with a 1 ms time stamp, enabling post-event analysis.

• Disturbance Recorder: Captures analog waveforms during faults, allowing in-depth analysis through ABB’s CAP 316 or PCM600 software tools.

• Human-Machine Interface (HMI): Features a built-in display and keypad for local setup adjustments and status monitoring, simplifying operation and diagnostics.

Legacy Status and Replacement:

The RET316*4 has largely been replaced by the ABB RET670 series, which offers enhanced features and capabilities. When maintaining older RET316 units, ensure periodic checks on backup batteries and electrolytic capacitors (typically every 5-8 years) to maintain system reliability.

Application Scenarios:

The RET316*4 is primarily used for differential protection in critical power system components like transformers, generators, and motors in high-voltage substations. Its high-speed fault detection and protection capabilities make it ideal for use in industries where system uptime and equipment longevity are essential, such as utilities, power generation, and heavy industrial manufacturing.
