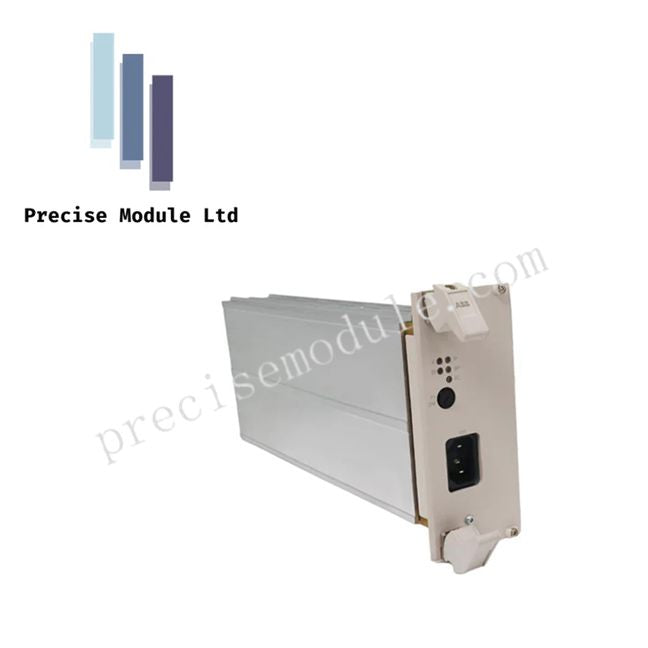

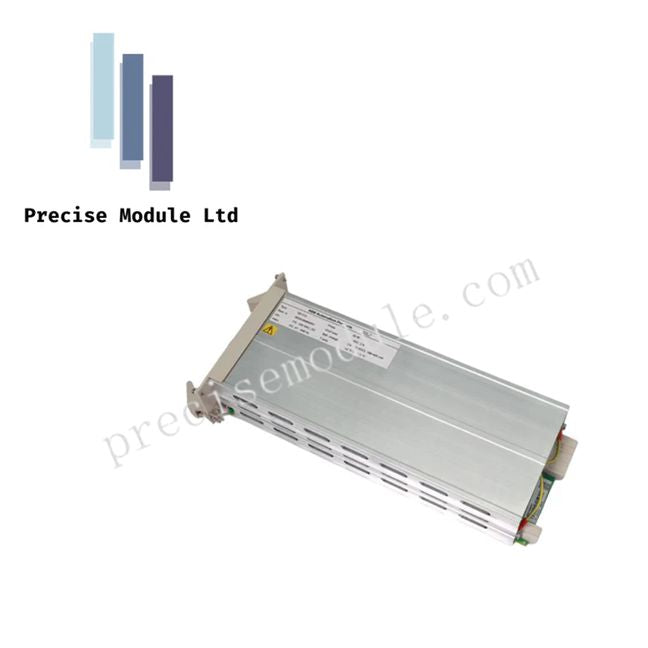

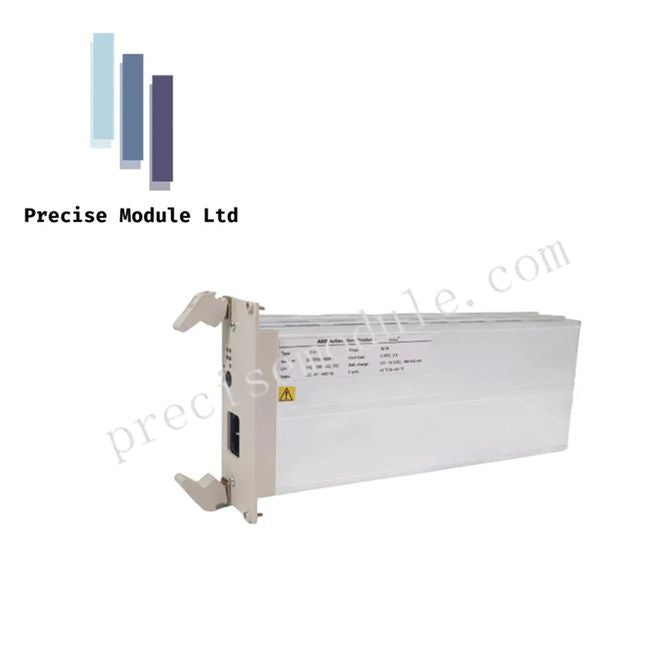

ABB SB510 3BSE000860R1 Submodule Bus Extension Module AC 400

Product Description

Overview

The ABB SB510 (3BSE000860R1) is a high-reliability Submodule Bus Extension designed for ABB Advant Controller 400 series and MasterPiece systems. It enables communication between central processors and remote I/O subracks, supporting both S800 and S100 I/O modules. The unit ensures consistent data transfer over extended distances, making it suitable for complex industrial automation environments.

Key Features

High-Speed Data Transmission: Provides low-latency communication for real-time process control.
Extended I/O Reach: Supports physical separation of subracks from the main controller for flexible plant layouts.
Galvanic Isolation: Protects sensitive electronics from voltage spikes and ground loops in industrial settings.
Redundancy Ready: Can be installed in redundant pairs to maintain continuous operation during module failure.
Built-In Diagnostics: Front-panel LEDs indicate Run status, Fault conditions, and real-time traffic activity.

Technical Specifications

Applications

Ideal for large-scale industrial plants, chemical processing facilities, or power distribution systems where decentralized I/O needs reliable connection to the central controller over long distances. Suitable for setups requiring high availability, redundant operation, or real-time process monitoring.

Frequently Asked Questions

Q: Can the SB510 support both S800 and S100 I/O modules?
A: Yes, it is fully compatible with both S800 and S100 subracks.

Q: Is the SB510 suitable for redundant configurations?
A: Yes, it can operate in pairs for failover to ensure uninterrupted operation.

Q: Does it include battery charging functionality?
A: Yes, it can charge 12 V, 4 Ah NiCd batteries for backup power.

Q: Are special cables required for installation?
A: The SB510 is typically used with the RC527 cable and SS510 baseplate for full installation. Firmware compatibility should be verified before replacement.
