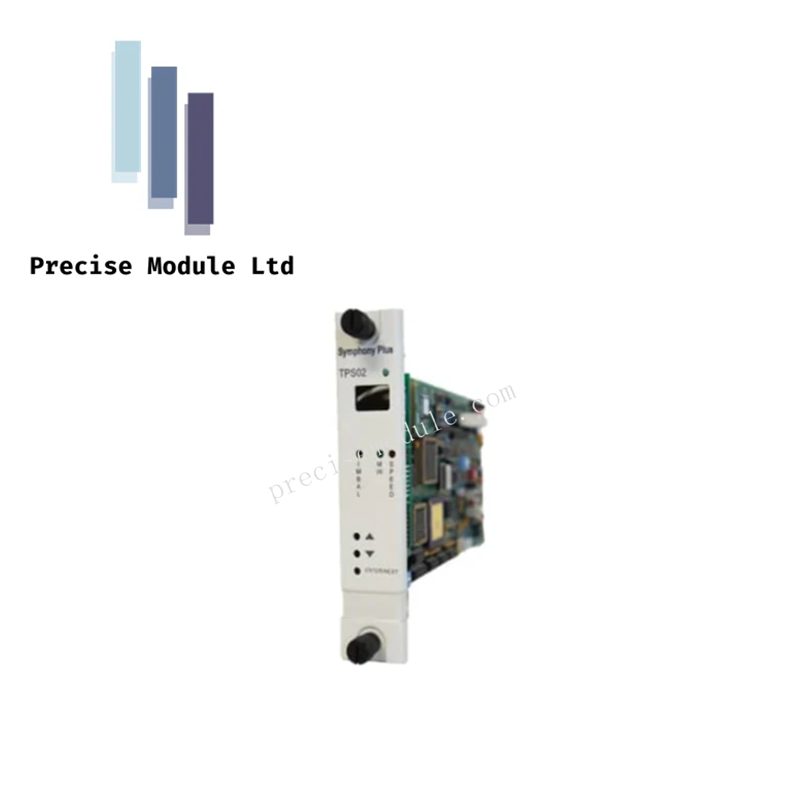

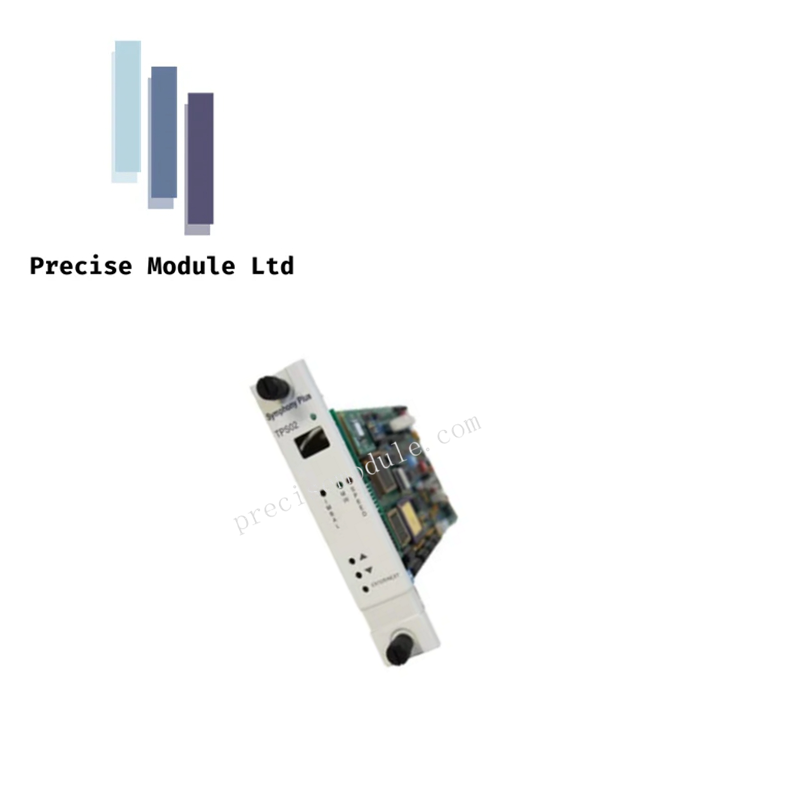

ABB SPTPS13 Turbine Protection Module

Description

The SPTPS13 from ABB is a high-performance turbine protection module built for the Symphony Plus Harmony Rack (HR) Series. It ensures real-time monitoring and fault detection for steam and gas turbines in industrial control systems.

Specifications

• Model: SPTPS13 / SPTPS13TSA

• Manufacturer: ABB

• Replacement For: SPTSA01 legacy module

• System Compatibility: Symphony Plus HR Series

• Monitoring Parameters:

  • Speed

  • Vibration

  • Temperature

  • Pressure

  • Flow (optional)

• Input Types:

  • Speed: Magnetic pickups, proximity sensors

  • Vibration: Transducers, accelerometers

  • Temperature: RTDs, thermocouples

  • Pressure: Analog transmitters

• Output Functions:

  • Shutdown control

  • Alarm signaling

• Communication Protocols: Modbus, Ethernet (varies by configuration)

• Power Supply: 24 V DC

• Operating Temperature: –40°C to +70°C

• Mounting Options: DIN rail or panel mount

• Dimensions:

  • Depth: 450 mm

  • Height: 177 mm

  • Width: 35 mm

• Weight: 0.272 kg

Features

• Real-Time Monitoring: Tracks turbine speed, vibration, and temperature with high accuracy

• Flexible Input Support: Accepts multiple sensor types for broad application coverage

• Integrated Fault Detection: Triggers alarms and shutdowns to prevent equipment damage

• Modular Communication: Supports Modbus and Ethernet for seamless system integration

• Wide Temperature Range: Operates reliably from –40°C to +70°C in harsh conditions

• Compact Installation: Slim profile fits DIN rail or panel-mounted configurations

• System Upgrade Ready: Replaces SPTSA01 with enhanced functionality and compatibility
