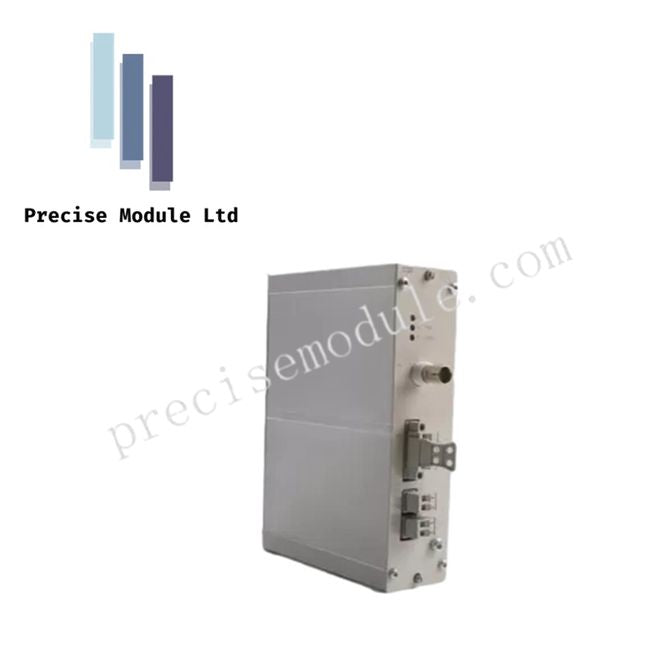

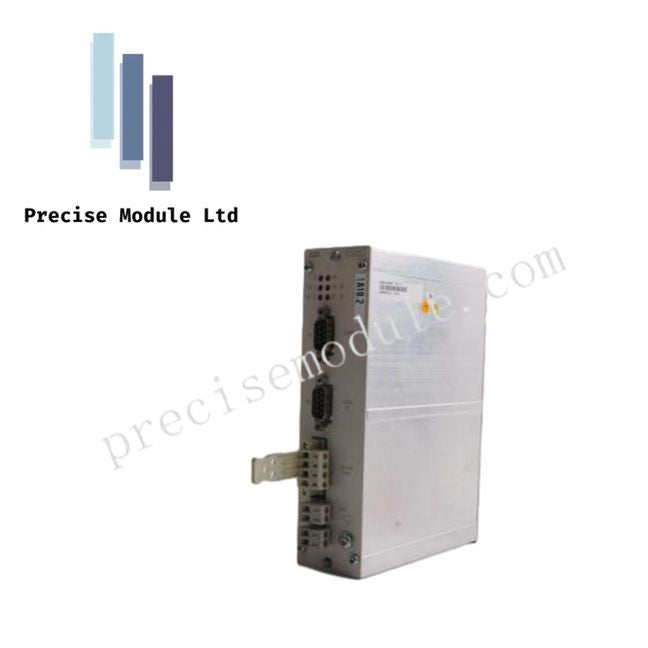

ABB TC513V1 3BSE018405R1 | Advant Controller Communication Module

ABB TC513V1 3BSE018405R1 | Advant Controller Communication Module

  • Manufacturer: ABB

  • Product No.: TC513V1 3BSE018405R1

  • Condition：in Stock

  • Product Type: Communication Module

  • Product Origin: Switzerland

  • Payment:T/T, Western Union

  • Weight: 725g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The ABB TC513V1 (3BSE018405R1) serves as a vertical mounting baseplate and connection unit for the Advant Controller 400 (AC 400) series and S800 I/O systems. It provides the physical and electrical interface for communication modules such as the CI522A, enabling seamless connectivity across redundant AF100 (Advant Fieldbus 100) networks. Its rugged construction ensures reliable operation in industrial environments, maintaining proper signal routing and power distribution even under vibration or thermal stress.

Key Performance Features

Reliable Network Support

  • Redundant AF100 lines ensure continuous network connectivity even if one path fails.

  • Hot-swap capability allows modules to be replaced without interrupting other connected devices or the power supply.

Signal Integrity and Protection

  • Built-in grounding and shielding mechanisms minimize electromagnetic interference (EMI), critical for maintaining high-speed data transmission.

  • Low-impedance connections provide minimal signal loss across the communication bus.

Installation and Maintenance Friendly

  • Optimized for vertical DIN rail mounting, saving space in industrial cabinets.

  • Clearly labeled terminals reduce wiring errors during commissioning.

Environmental Durability

  • Industrial-grade construction supports operation across a wide temperature range (0°C to +55°C) and high-humidity conditions (up to 95% non-condensing).

  • Compliant with RoHS 2011/65/EU, ensuring environmentally safe materials.

Technical Specifications

Feature Specification
Product ID 3BSE018405R1
Model Type TC513V1
Compatible Modules CI522A, CI526, etc.
Network Interface AF100 (Advant Fieldbus 100)
Power Supply 24V DC, rated isolation 50V
Mounting Orientation Vertical
Dimensions Depth 200 mm × Height 150 mm × Width 30 mm
Weight 0.725 kg
RoHS Compliant Yes
WEEE Category 5. Small Equipment

Applications

  • Acts as the baseplate for Advant Fieldbus 100 communication modules.

  • Supports high-reliability redundant networks in critical industrial processes.

  • Suitable for S800 I/O integration and modular control system configurations.

FAQ

Q: Can the TC513V1 support redundant AF100 communication lines?
A: Yes, it maintains network connectivity even if one communication path fails.

Q: Is hot-swapping supported for attached modules?
A: Yes, modules can be replaced without interrupting the power supply or other network devices.

Q: What mounting configuration does the TC513V1 require?
A: Vertical DIN rail mounting is recommended for optimized space utilization.
