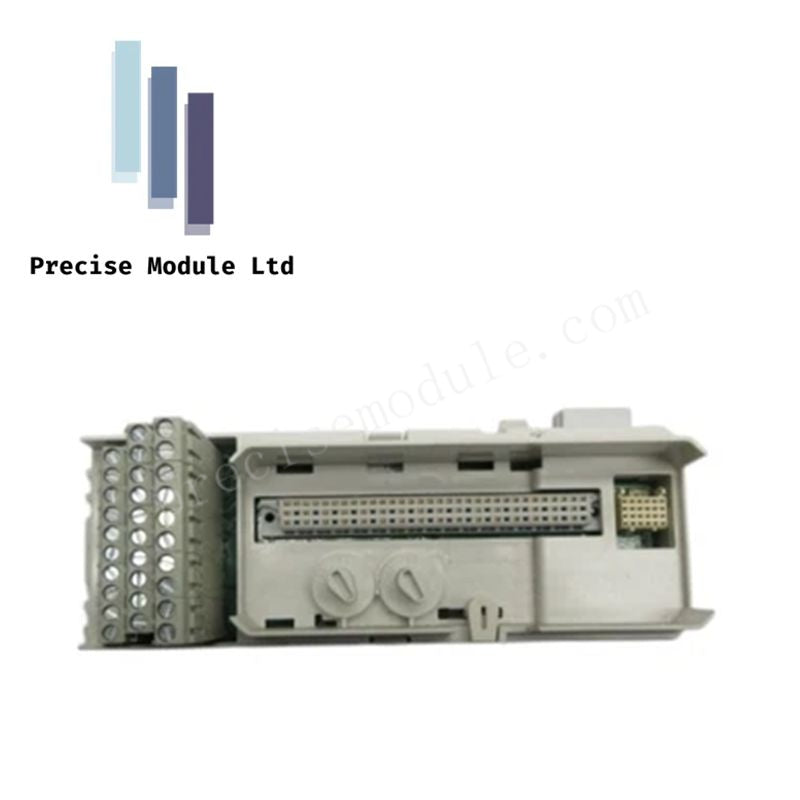

ABB TU810V1 – Compact Module Termination Unit (MTU)

Manufacturer: ABB
Product No.: 3BSE013230R1/TU810V1
Condition：in Stock
Product Type: Compact Module Termination Unit
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 230g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

ABB TU810V1 – Compact Module Termination Unit (MTU)

Product Description

The ABB TU810V1 is a Compact Module Termination Unit (MTU) designed for the S800 I/O system. It is a passive component that provides the interface between field wiring and the I/O modules. In addition to connecting field signals, the TU810V1 distributes the ModuleBus and assigns the physical address to the installed I/O module based on its bus position.

The unit is equipped with 2×8 signal terminals, supporting up to 16 channels of field signals. It also includes mechanical keying, preventing incorrect module insertion. Its DIN rail mounting allows for quick and efficient installation in industrial automation systems.

Technical Specifications

Parameter	Specification
Maker	ABB
Model	TU810V1
Product ID	3BSE013230R1
Product Type	Compact Module Termination Unit (MTU)
Voltage Rating	50 V
Terminals	2×8 signal terminals (16 channels)
Mounting	DIN rail
Mechanical Keying	Yes, prevents wrong I/O module insertion
Dimensions (W × H × D)	58.5 mm × 170 mm × 64 mm
Net Weight	0.2 kg
Compatibility	ABB S800 I/O system
