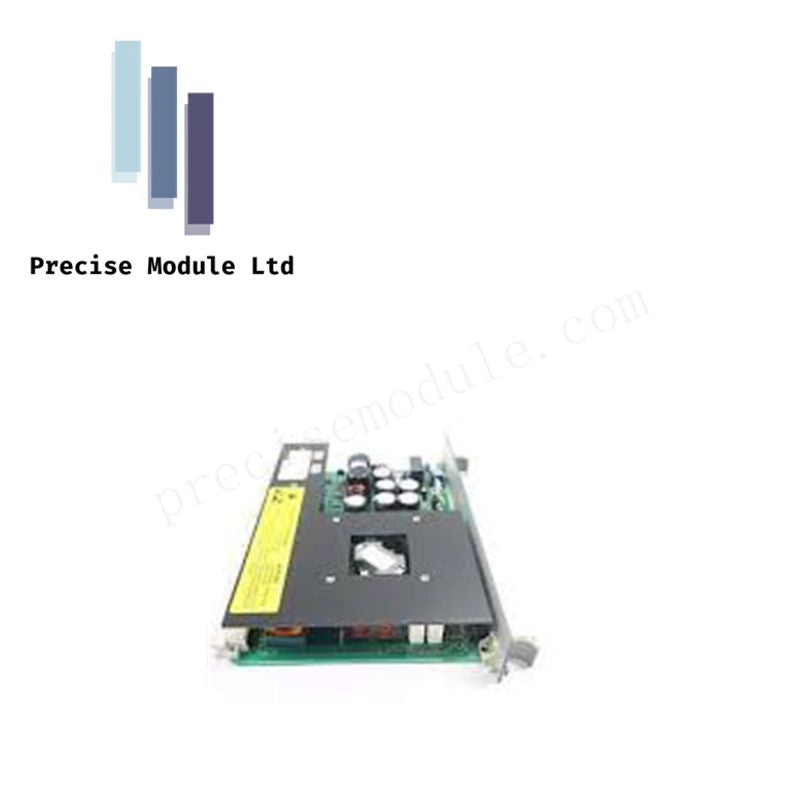

ABB UFC092A1 specialized control circuit board

Product Description

The ABB UFC092A1 (part number HIEE300686R0001) is a specialized control circuit board designed for industrial AC drive systems, particularly within the ABB ACS6000 series. This board is responsible for managing essential drive operations, ensuring precise regulation of motor speed and torque. By maintaining accurate control, the UFC092A1 contributes to overall system stability, reliability, and performance.

Engineered for seamless integration, the board processes both digital and analog signals within the drive system. It is commonly used by technicians for repairs, replacements, and maintenance, ensuring that ABB drives operate at their full capacity with genuine, manufacturer-approved components.

Technical Specifications

• Manufacturer: ABB

• Model: UFC092A1

• Part Number: HIEE300686R0001

• Category: Control PCB (Printed Circuit Board)

• Compatibility: ABB AC drive systems (primarily ACS6000 series)

• Dimensions (H × W × D): 275 × 205 × 30 mm

• Weight: 0.7 kg (1.54 lbs)

• Connectors: Multiple pin headers and terminals for system interfacing

• Input/Output: Supports digital and analog I/O for signal processing

• Energy Storage: Integrated capacitors for stable power regulation

• Components: Microprocessors, relays, and other electronic elements

• Operating Temperature: -10 to +55 °C (14 to 131 °F)

• Mounting: Internal chassis mount (within drive cabinet)
