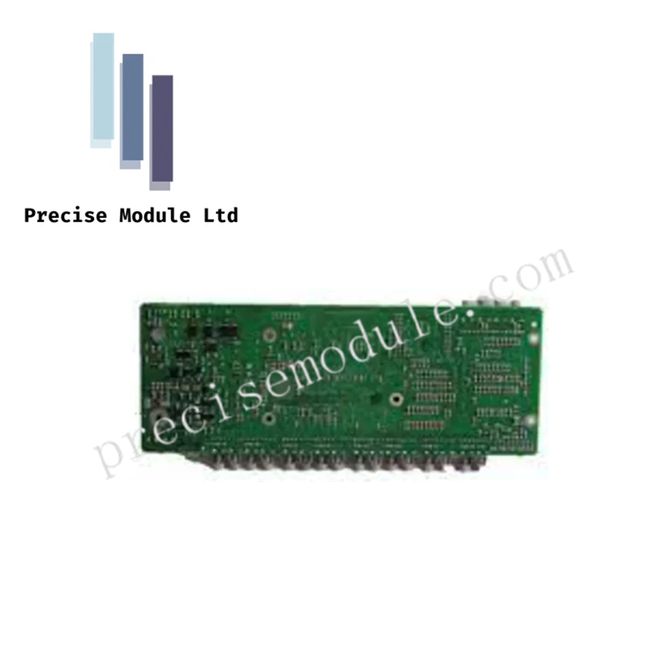

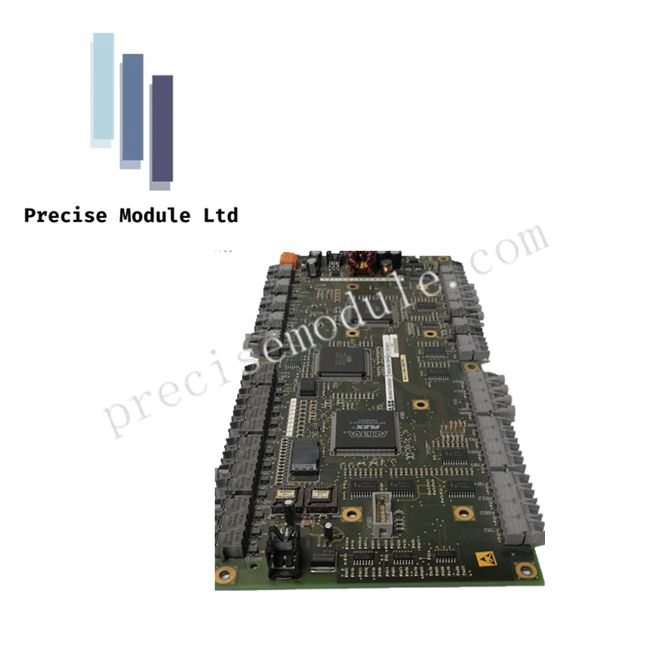

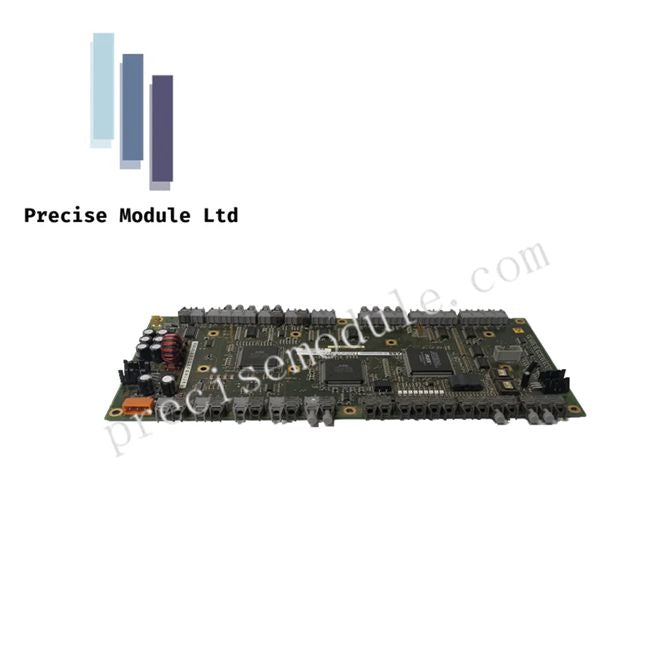

ABB UFC789AE101 3BHE014023R0101 Control Module AC 800M

ABB UFC789AE101 3BHE014023R0101 Control Module AC 800M

  • Manufacturer: ABB

  • Product No.: UFC789AE101 3BHE014023R0101

  • Condition：in Stock

  • Product Type: Control Module

  • Product Origin: Switzerland

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The UFC789AE101 (3BHE014023R0101) is a high-performance control module designed for ABB’s AC 800M and AC 800PEC systems. Engineered for demanding industrial environments, it delivers rapid real-time data processing and robust communication for complex power electronics applications. This module ensures reliable operation in high-voltage, high-speed control scenarios, including wind turbine converters, large motor drives, and excitation systems.

Key Features

High-Speed Processing

  • Dual-core architecture for microsecond-level execution

  • Handles complex PWM and protection logic beyond standard PLC capabilities

Advanced Communication

  • Multiple interfaces: Ethernet, serial, fieldbus, optional fiber-optic

  • Galvanic isolation for high-noise environments

  • Triple-network redundancy for uninterrupted operation

Robust Industrial Design

  • Wide operating temperature: -10°C to +55°C

  • Resistance to vibration, electromagnetic interference (EMI), and thermal fluctuations

  • Rack or panel-mountable, ruggedized enclosure

System Integration

  • Compatible with AC 800M, AC 800PEC, and Symphony Plus platforms

  • Supports real-time monitoring and diagnostics

  • MATLAB/Simulink integration for complex control algorithm deployment

Technical Specifications

Feature Specification
Manufacturer ABB
Model UFC789AE101
Part Number / Order Number 3BHE014023R0101
Platform AC 800M / AC 800PEC / 800xA Extended Automation
Function High-Speed Power Electronics Control / Communication Interface
Processor Dual-core, high-speed execution
Redundancy Triple-network
Power Supply Module-integrated, optimized for AC 800M racks
Communication Ethernet, Serial, Fieldbus
Mounting Rack or Panel Mount
Operating Temperature -10°C to +55°C
Dimensions (HxWxD) 2.5 × 24 × 25.3 cm
Weight 0.3 kg
Application Wind turbine converters, excitation systems, large motor drives, SVC, traction

Applications

  • Master/slave configurations in control cabinets for power electronics

  • Real-time monitoring of converter systems in energy plants

  • High-speed industrial drives and excitation systems

FAQ

Q: Is the UFC789AE101 compatible with older AC 800M systems?
A: It is compatible with AC 800M and AC 800PEC systems, but firmware must match the system software version.

Q: Can this module handle high EMI environments?
A: Yes, the module is specifically designed for EMI-heavy industrial settings with high-level galvanic isolation.

Q: Can I use MATLAB/Simulink for programming?
A: Yes, AC 800PEC systems support model-based design using MATLAB/Simulink for deploying advanced control logic.
