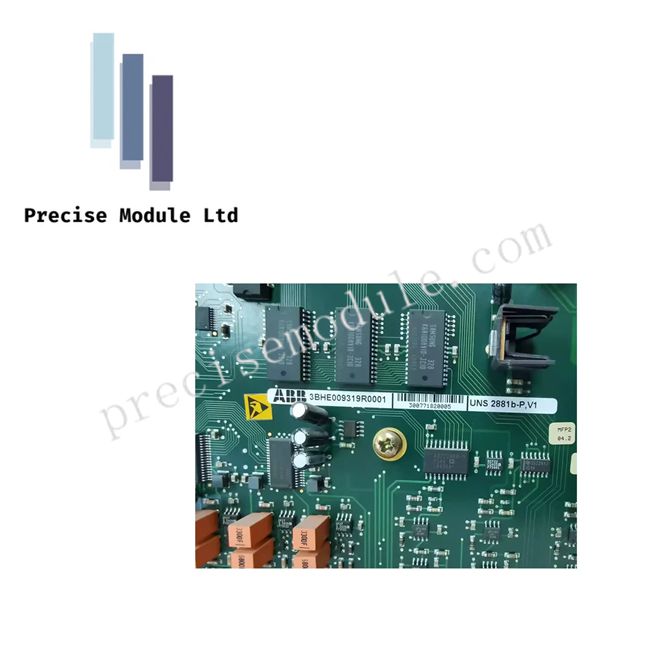

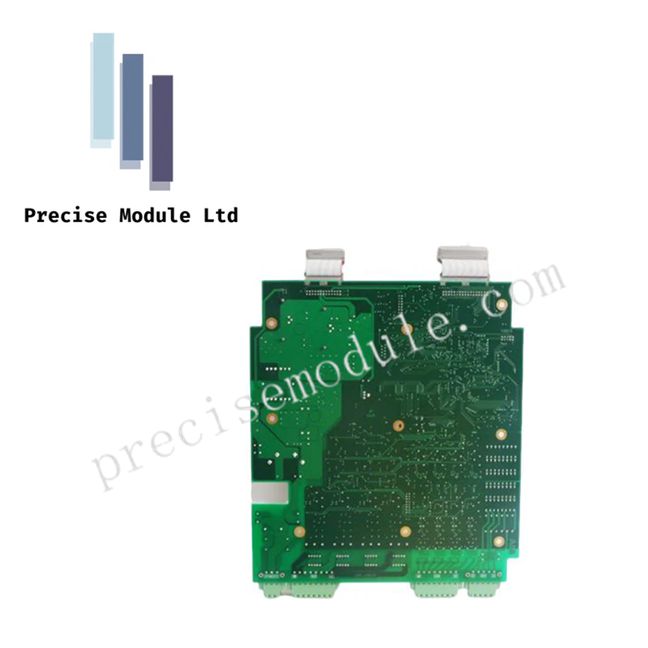

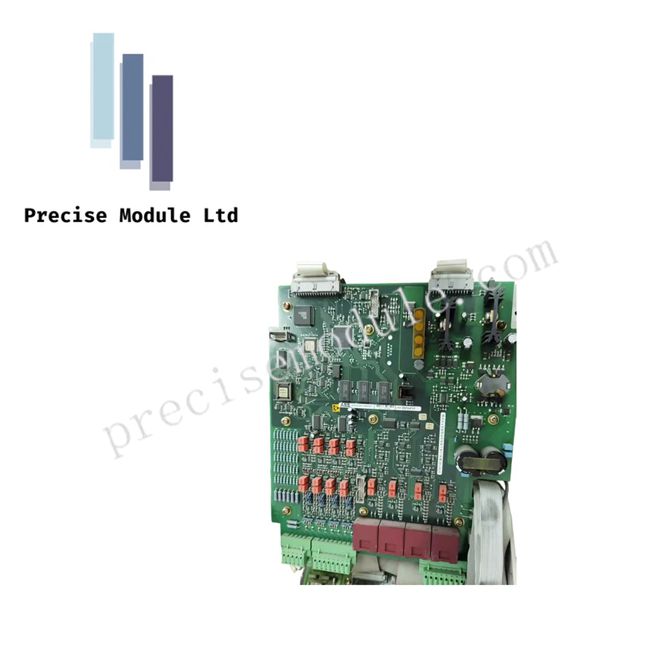

ABB UNS2881B-P,V1 3BHE009319R0001 Pulse Amplifier Module

Product Description

Overview

The UNS2881B-P,V1 (3BHE009319R0001) is a high-performance pulse amplifier and gate driver interface designed for ABB UNITROL® 6000, MEGATROL, and high-power rectifier systems. It bridges low-voltage control logic with high-power thyristor bridges, delivering precise, synchronized firing pulses to SCRs or other large semiconductors. This module is essential for stable operation of excitation systems, AC drives, and industrial rectifier applications.

Key Features

Precision Pulse Amplification

• Provides sharp, high-energy trigger pulses to power thyristors, ensuring accurate firing angles under electrically noisy conditions.

• Minimizes jitter between channels, maintaining stable DC output in excitation or frequency converter systems.

Robust Isolation & Noise Immunity

• High-rated galvanic isolation separates sensitive control circuits from high-voltage power sections.

• EMI-filtered design ensures reliable operation near high-current busbars or rectifier bridges.

Integrated Diagnostics & Monitoring

• Includes embedded monitoring circuits for pulse status and thyristor health.

• Reports faults such as pulse failure or short-circuits to the main controller for rapid system protection.

Industrial-Grade Reliability

• Components selected for long-term operation in continuous-duty, high-temperature environments.

• Designed for 24/7 industrial power systems including generator excitation and large rectifier networks.

Plug-and-Play Compatibility

• Standardized form factor allows direct integration into ABB subracks (UNITROL®, UNIREC, or PEC frames).

• Simplifies upgrades or replacements without extensive rewiring.

Technical Specifications

Applications

• Excitation systems for large generators

• High-power rectifier control in industrial plants

• AC drives requiring precise thyristor firing

• Critical electrical infrastructure monitoring and protection
