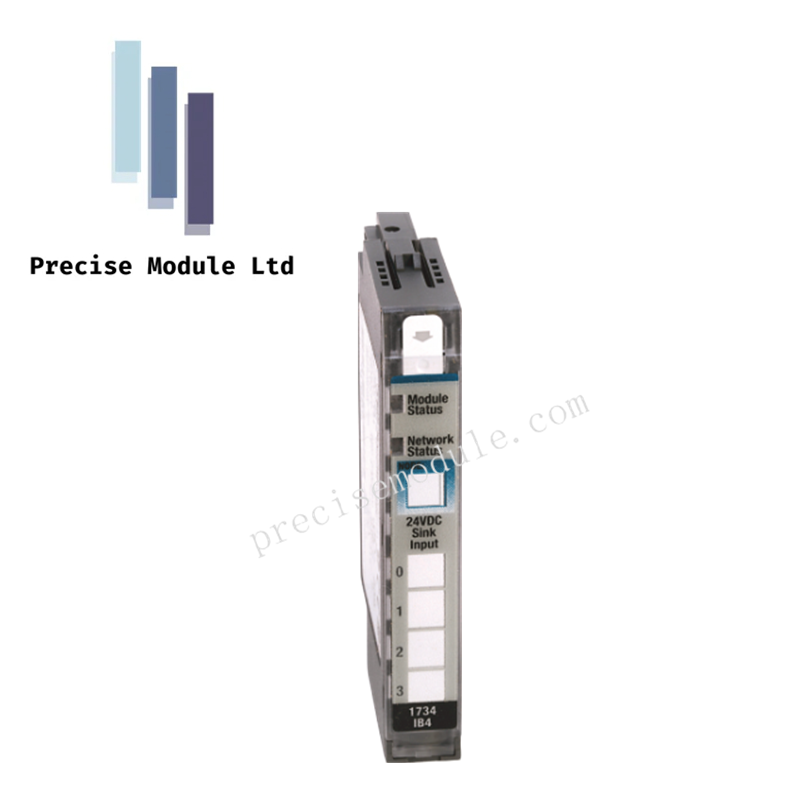

Allen Bradley 1734-IB4 POINT I/O Input Modules

Allen Bradley 1734-IB4 POINT I/O Input Modules

  • Manufacturer: Allen-Bradley

  • Product No.: 1734-IB4

  • Condition：in Stock

  • Product Type: POINT I/O Input Modules

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 318g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Overview

The Allen-Bradley 1734-IB4 is a 4-point sinking digital input module designed for distributed control systems using the POINT I/O architecture. Manufactured by Rockwell Automation, this module offers high-speed signal acquisition, compact design, and flexible configuration options for industrial automation environments.

Key Features

  • 4 sinking inputs grouped in a single block

  •  Wide operating voltage range from 10V to 28.8V DC

  • User-selectable input filter times for noise immunity

  • Tool-less installation with 1734-TB or 1734-TBS base assemblies

  •  LED indicators for input, module, and network status

  • Reinforced insulation tested at 2500V DC for 60 seconds

  • Low thermal dissipation for energy-efficient operation

  • Slim profile ideal for space-constrained panels

Technical Specifications

Electrical Characteristics

Attribute Value
Inputs per module 4 (1 group of 4), sinking
Voltage, on-state (min) 10V DC
Voltage, on-state (nom) 24V DC
Voltage, on-state (max) 28.8V DC
Current, on-state (nom) 4 mA @ 24V DC
Current, on-state (max) 5 mA
Voltage, off-state (max) 5V DC
Current, off-state (min) 1.5 mA
Input impedance (nom) 3.6 kΩ
Input impedance (max) 4.7 kΩ
Input filter time 0.5 ms hardware + 0–63 ms user-selectable

Mechanical & Environmental

Attribute Value
Dimensions (HxWxD) 56 x 12 x 75.5 mm
Weight 31.8 g (1.12 oz)
Terminal base screw torque 0.8 Nm (7 lb-in.)
Module location 1734-TB or 1734-TBS
Enclosure type rating None (open-style)
Wire size Determined by terminal block
Wiring category Category 1 (signal ports)
Isolation voltage 50V continuous, tested @ 2500V DC
Field power supply voltage (nom) 24V DC
Field power voltage range 10–28.8V DC
Power dissipation @ 28.8V DC 1.0 W
Thermal dissipation @ 28.8V DC 3.4 BTU/hr
POINTBus current (max) 75 mA @ 5V DC
Keyswitch position 1
Temperature code (NA/ATEX) T4A / T4
