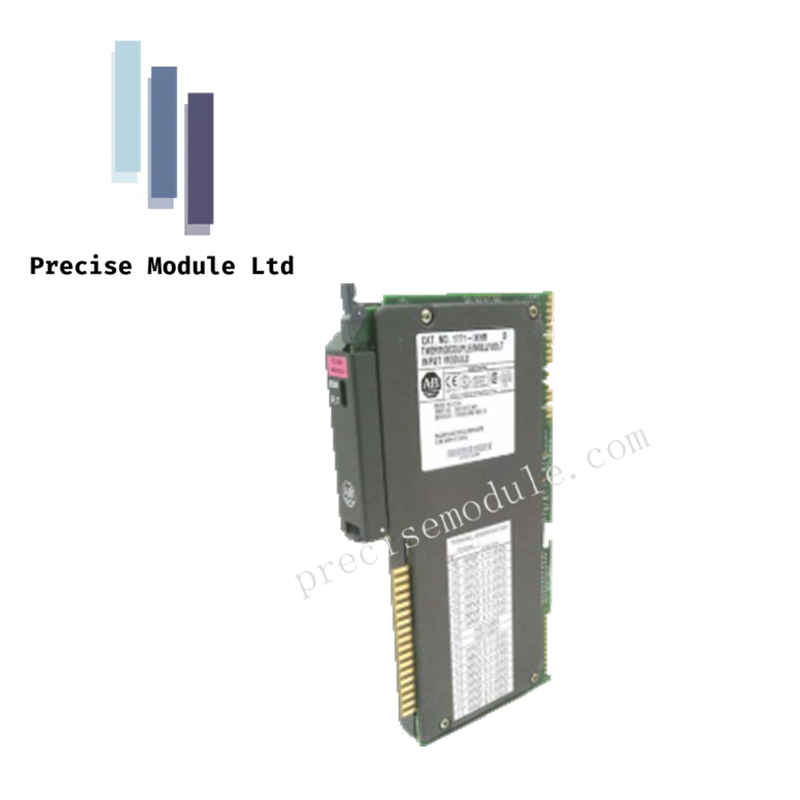

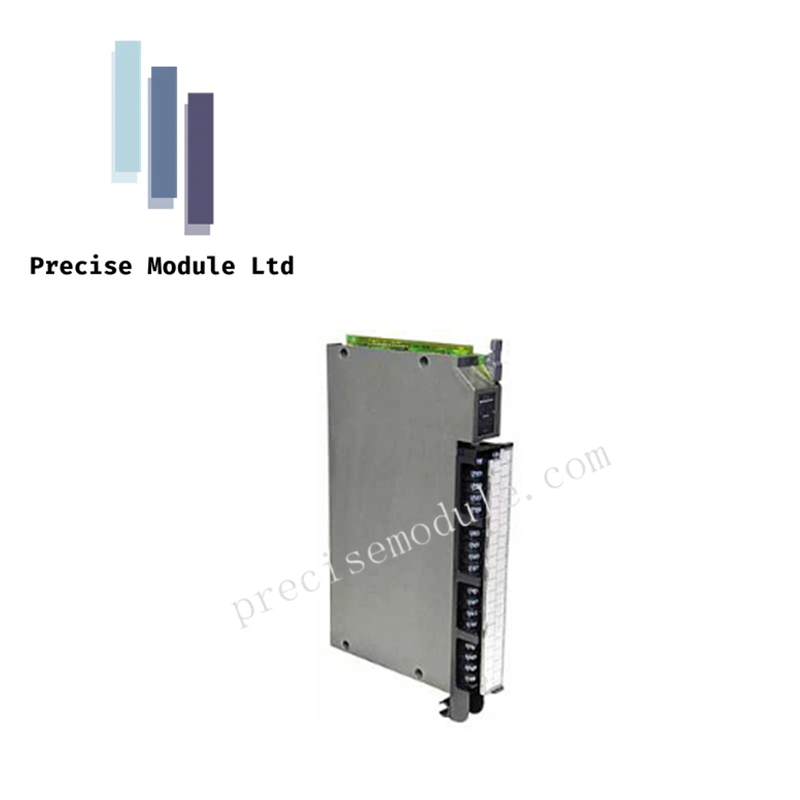

Allen Bradley 1771-IXHR Thermocouple Millivolt Input Module

Product Overview

The 1771-IXHR is a precision-engineered analog input interface designed for the Allen-Bradley PLC-5 platform, specifically optimized for low-level signal detection. This module excels in applications requiring extreme thermal accuracy, providing eight floating differential inputs that support a wide array of thermocouple types and millivolt signals. By leveraging automated cold-junction compensation and internal self-calibration, the 1771-IXHR removes the need for manual potentiometer tuning, ensuring long-term signal stability. Its high-speed circuitry enables a 25 ms update rate across all channels, making it a staple for high-fidelity temperature monitoring and laboratory-grade industrial sensing.

Technical Specifications

• Input Configuration: 8 Floating Differential Channels

• Supported Sensor Types: Thermocouples (Type B, E, J, K, R, S, T) and ±100 mV Millivolt signals

• Measurement Resolution: 0.1° C/F for temperature; 1 μV for voltage

• Update Frequency: 25 ms for all 8 channels (simultaneous processing)

• Cold Junction Compensation (CJC): Internal; Accuracy of ±0.5°C within 0°C to 60°C range

• Data Representation: Natural Binary

• Calibration: Automatic gain and offset (software-controlled)

• Backplane Current Draw: 750 mA @ 5V DC

• Power & Thermal: 4.255 Watts max; 14.5 BTU/hr heat dissipation

• Status Indicators: Green "RUN" LED (Active); Red "FLT" LED (Fault/Diagnostic)

• Onboard Diagnostics: Power-up self-test and integrated open-circuit detection

• Wiring Interface: Requires 1771-WI wiring arm for field terminations

• Isolation: Differential inputs provide robust noise rejection for industrial environments

System Integration and Reliability

The 1771-IXHR is built to maintain high E-E-A-T standards in thermal processing. It eliminates common points of failure in analog loops by integrating the cold junction reference directly into the module's architecture. For maintenance teams, the module simplifies troubleshooting through its front-facing diagnostic LEDs and the ability to swap units without disturbing field wiring, provided a 1771-WI wiring arm is utilized. The natural binary data format allows for direct, high-resolution scaling within the PLC-5 processor's integer files, reducing the overhead for complex math instructions.
