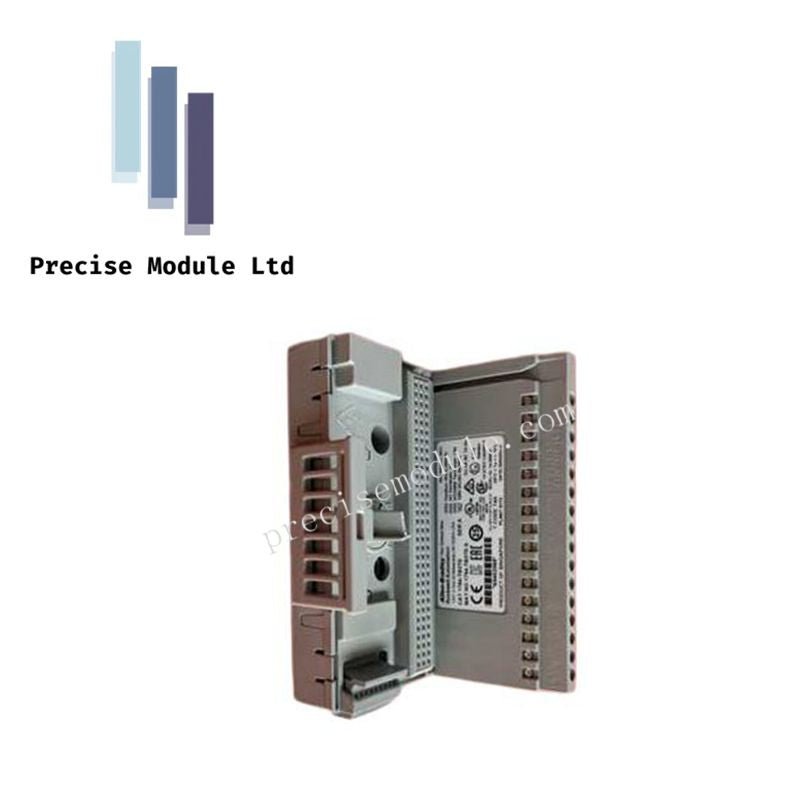

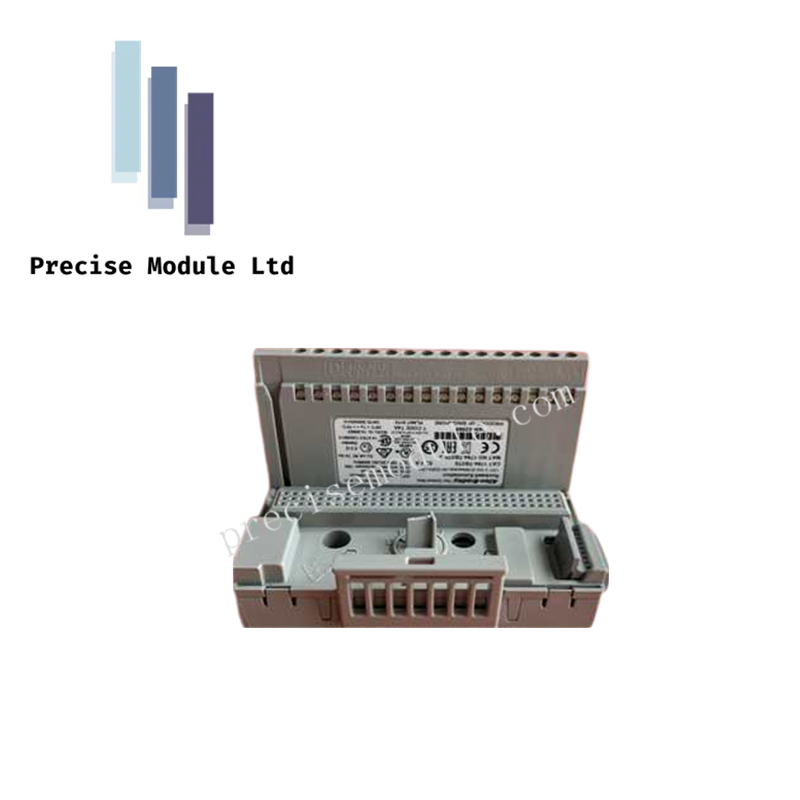

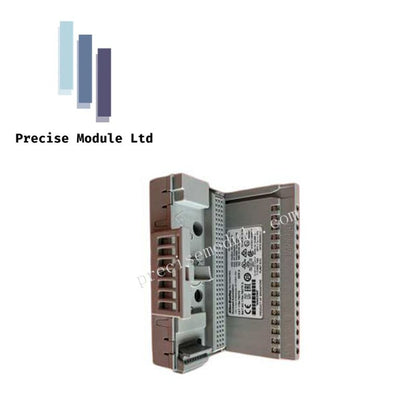

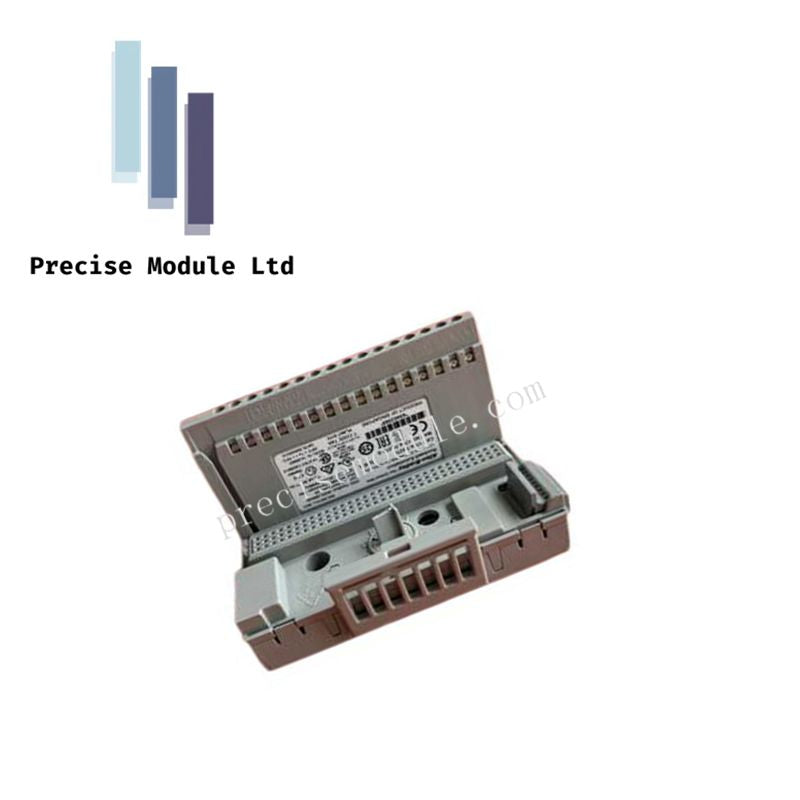

Allen Bradley 1794-TB3TS I/O Terminal Base Units

Description

The 1794-TB3TS I/O terminal base unit from Allen-Bradley provides secure and efficient wiring for FLEX I/O modules. It simplifies installation and ensures reliable signal transmission in industrial control systems.

Specifications

• Model Number: 1794-TB3TS

• Manufacturer: Allen-Bradley

• Product Type: I/O terminal base unit

• Terminal Type: Spring clamp terminals for secure connections

• Connection Points: 36 individual wiring terminals

• Mounting Method: DIN rail mounting for quick installation

• System Compatibility: Designed for FLEX I/O modules

• Dimensions: 94 mm × 94 mm × 69 mm

• Weight: 0.2 kg

• Operating Temperature: 0°C to 55°C

• Housing Material: Industrial-grade thermoplastic

• Wiring Type: Supports discrete and analog signal wiring

• Certifications: UL, CE, and CSA compliant

Features

• Tool-Free Wiring: Spring clamp terminals eliminate the need for screwdrivers

• Compact Design: Saves panel space while maintaining full functionality

• High-Density Connections: Supports up to 36 signal lines per unit

• Quick Installation: DIN rail mounting speeds up system assembly

• Reliable Signal Routing: Ensures consistent performance across I/O modules

• Flexible Integration: Compatible with various FLEX I/O configurations

• Durable Construction: Withstands vibration and industrial wear

• Clear Labeling: Terminal markings simplify wiring and maintenance

• Secure Fit: Locks firmly into FLEX I/O system for stable operation

• Field Proven: Widely used in Allen-Bradley automation environments
