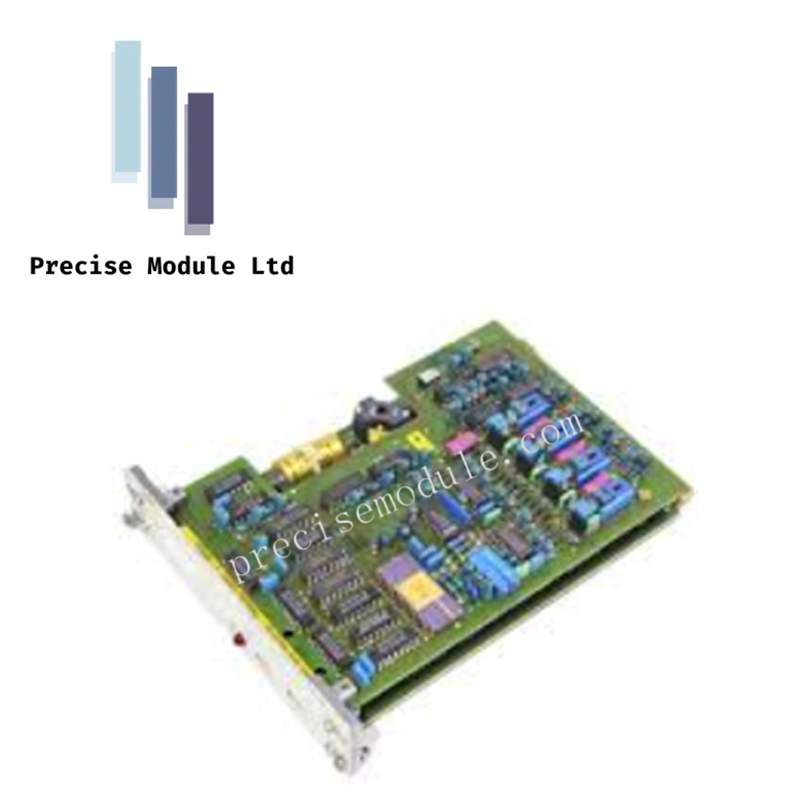

Analog Input Module ABB 7OEA01a-E

Product Overview

The 70EA01A-E is a precision-engineered analog data acquisition module designed for the ABB Procontrol P14 distributed control system (DCS). This unit serves as the critical interface between field instrumentation and the central control logic, converting continuous physical variables into high-resolution digital signals. Optimized for low-noise performance and long-term stability, the 70EA01A-E is ideal for monitoring high-stakes parameters such as turbine pressure, reactor temperature, and chemical flow rates. Its modular P14 architecture allows for dense cabinet integration while providing the ruggedized protection necessary for heavy industrial or power generation environments.

Technical Specifications

• Module Identifier: 70EA01A-E

• System Platform: ABB Procontrol P14

• Input Signal Compatibility: 4-20 mA, 0-20 mA, 0-10V, and 1-5V DC

• A/D Conversion: High-resolution circuitry for granular process tracking

• Signal Integrity: Integrated filtering for industrial-grade noise rejection

• Thermal Operating Range: -25°C to +55°C (-13°F to +131°F)

• Storage Temperature: -40°C to +70°C

• Form Factor: Compact P14 subrack-compatible module

• Isolation: Galvanic isolation between field inputs and system bus

• Diagnostics: Internal self-test and channel-level status monitoring

• Installation: Simplified "plug-and-play" interface for the P14 backplane

Industrial Implementation and Utility

The 70EA01A-E is a foundational component for "Process Regulation" in complex automation loops. In thermal power stations, it provides the deterministic sampling rates required for boiler auxiliary control and turbine monitoring. In water treatment and petrochemical facilities, the module's ability to handle multiple signal types (Voltage and Current) within a single rack footprint reduces hardware overhead. Furthermore, its modern circuitry makes the 70EA01A-E a primary choice for "Retrofit Projects," allowing operators to replace aging, drift-prone analog cards with high-fidelity digital alternatives that interface seamlessly with existing Procontrol P14 bus structures.
